Product Data Sheet
1102 B Type Caster Series
  NBR (milling black) Wheel Diameter x Wheel Width 200 x 44mm
  EAN
      KS-11020800044041

Castors with Front Brake locking system, Welded Caster Fork, blue paint surface Top Plate Mounting Type, Hole spacing 110x75 Cast Iron Wheel Center, High-Quality high-Resilient Rubber Wheel Tread, Cast Iron black Bearing - Ball Bearing, with special Anti-thread wheel cover
  Wheel Tread: Made of high-quality, highly elastic rubber
  Wheel Center: iron core/cast iron core

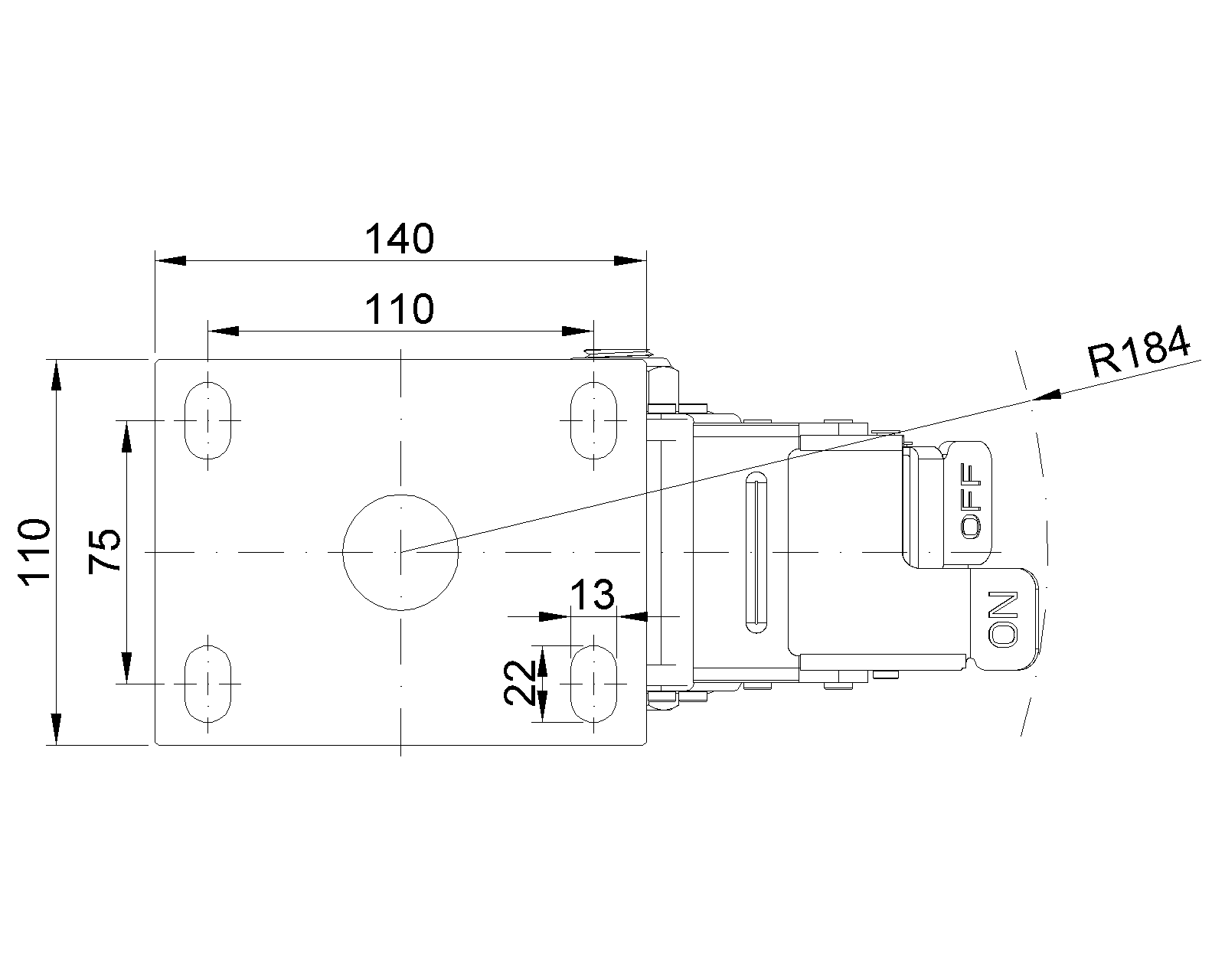

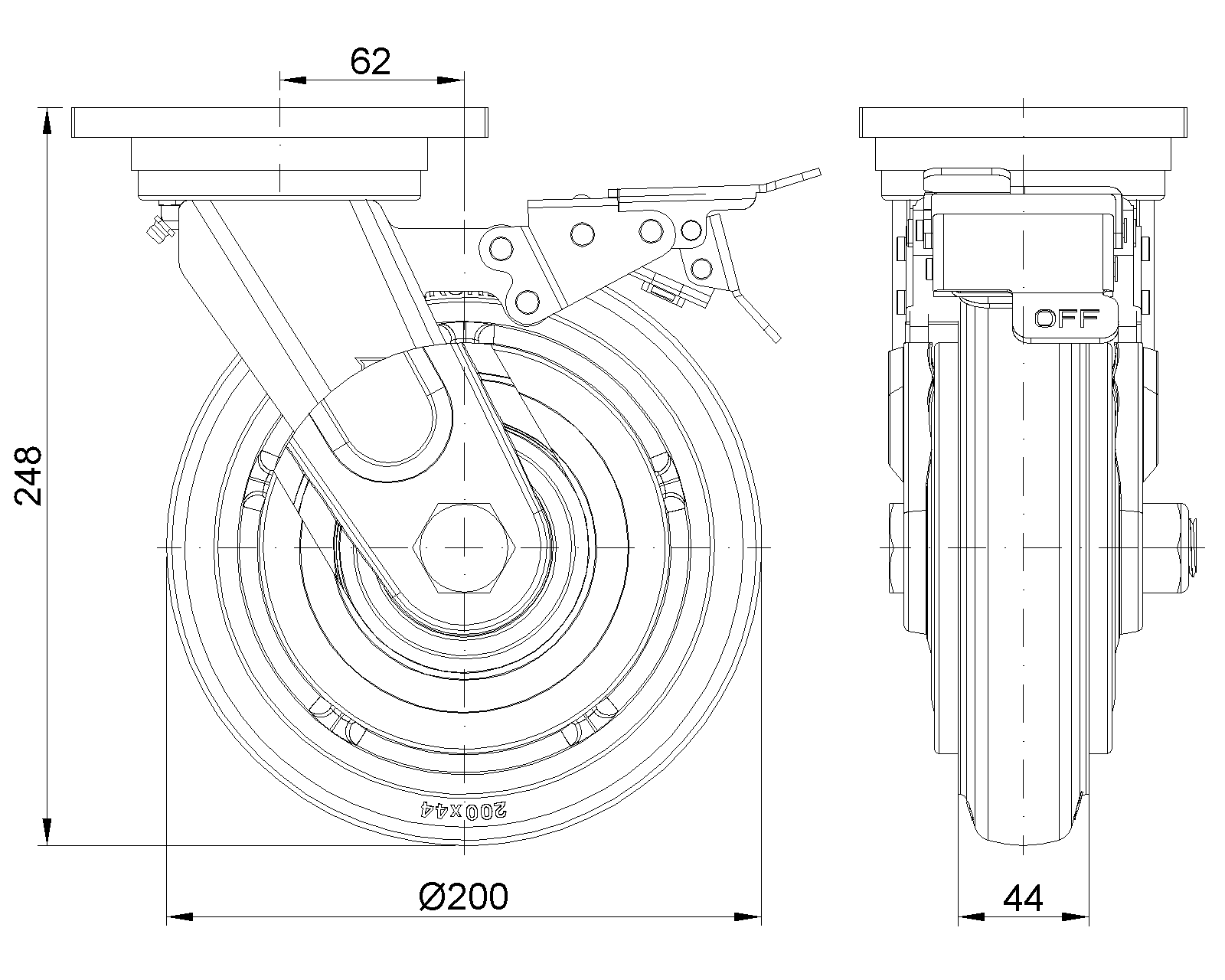

    Drawings are for reference only and may differ from the product




      Metric Imperial
  Wheel Diameter 200mm
  Wheel Width 44mm
  Wheel Bearing Wheels With Ball Bearings
  Plate Size 140 x 110mm
  Bolt Hole Spacing 110x75mm
  Plate Hole 22 x 13mm
  Offset 62mm
  Swivel Interference 368mm
  Overall Height 248mm
  Swivel Radius 184mm
  Hardness Of Tread 85±5° Shore A
  Load Capacity (Dynamic) 350kgs


  Rolling Resistance
        ● ● ● ○ ○

  Operating Noise        ● ● ● ● ○

  Floor Surface Preservation  ● ● ● ● ○

  Load Capacity (Static) 525kgs
  Temperature -20°C to +80°C
  Fork Type Swivel Caster With Front Brake
  Stainless N/A
  Electrical Conductivity N/A
  Anti-Static N/A
  Weight 6.70kgs
  Standard ISO22883
