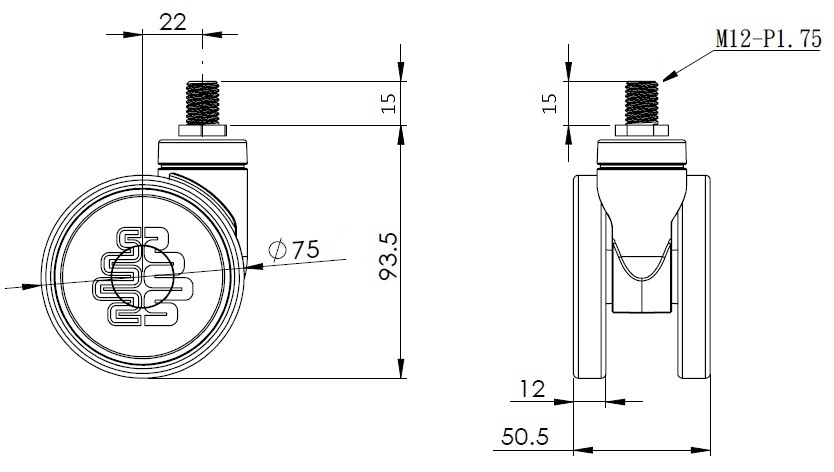

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
50.5mm
Wheel Bearing
Wheel With Plain Bearing
Threaded Stem
M12
Threaded Length
15mm
Offset
22mm
Swivel Interference
132mm
Overall Height
93.5mm

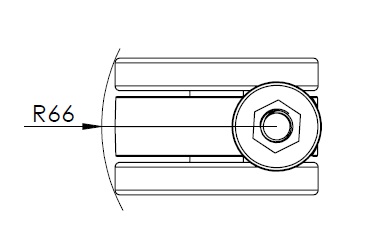

Swivel Radius
66mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
30kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
45kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.18kgs
Standard
ISO22883
