Yoyo Wheel (black dark gray) Wheel Diameter x Wheel Width 65 x 18mm

Picture may differ from original product

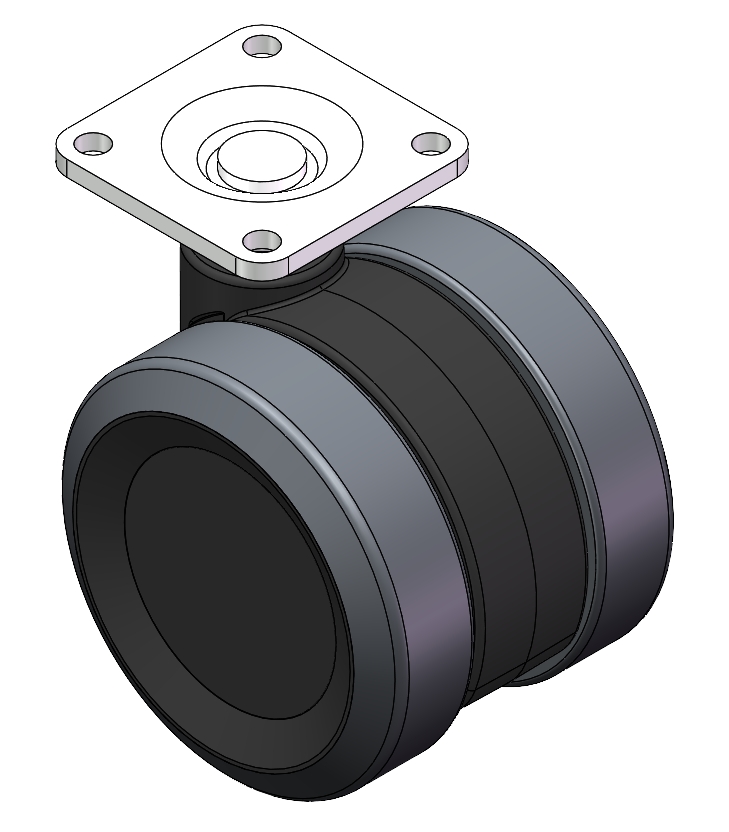

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)

Yoyo Wheel (black dark gray) Wheel Diameter x Wheel Width 65 x 18mm

YJ-11100250242033

Wheel Diameter65mm　2-9/16

Load Capacity (Dynamic)45kgs　99lbs

Overall Height81.6mm　3-1/4＂

Wheel BearingWheel With Plain Bearing

Swivel Caster with injection-molded Fork Riveted to Top Plate.
reinforced Polypropylene Fork, Top Plate (3T) Mounting Type system
Polypropylene (PP) core, polyvinyl chloride (PVC) tread
Dark gray, Anti-thread wheel cover.
Wheel Tread: PVC polyvinyl chloride
Wheel Center: PP polypropylene

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

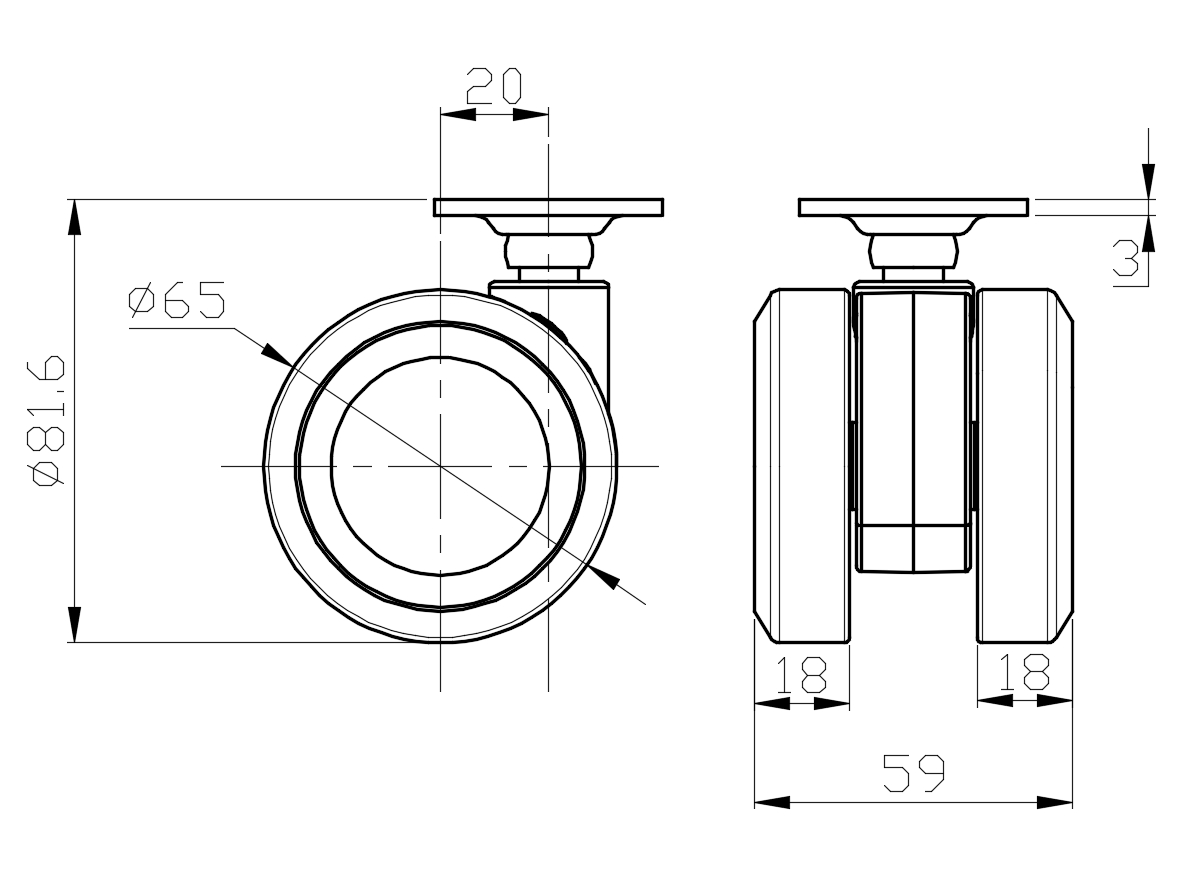

Product Data Sheet

Wheel Diameter: 65mm2-9/16
Wheel Width: 59mm2-3/8
Wheel Bearing: Wheel With Plain Bearing

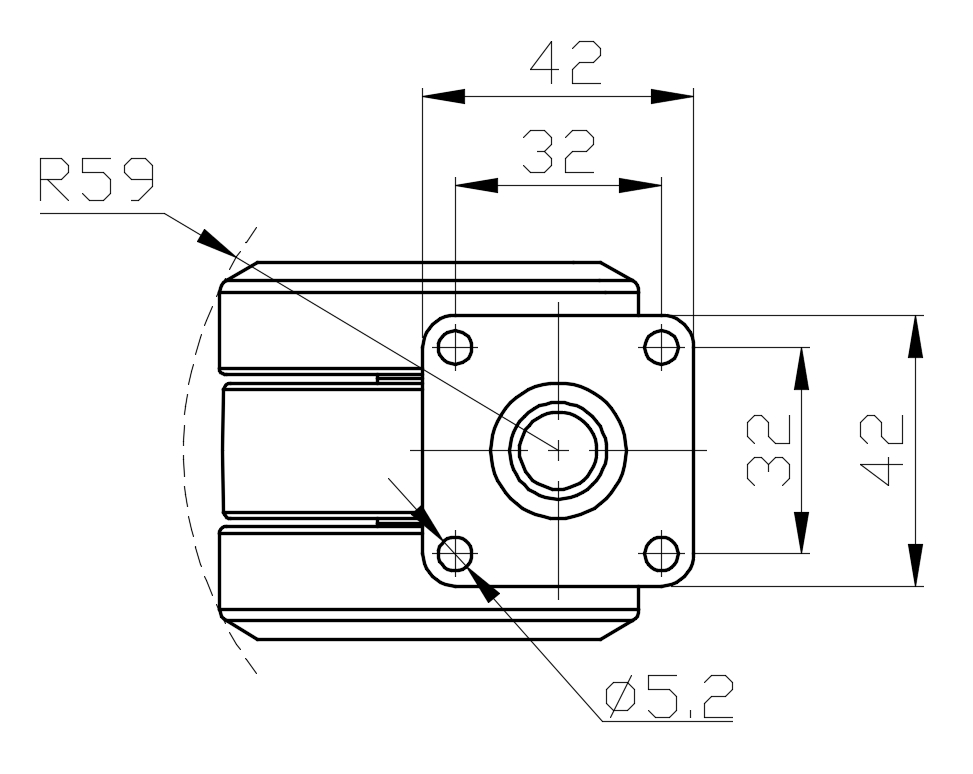

Plate Size: 42 x 42mm1-11/16＂ x 1-11/16＂
Bolt Hole Spacing: 32 x 32mm1-1/4“x1-1/4”
Plate Hole: 5.2mm1/4＂
Offset: 20mm13/16＂
Swivel Interference: 118mm4-11/16＂
Overall Height: 81.6mm3-1/4＂
Swivel Radius: 59mm2-3/8＂
Hardness Of Tread: 95±5° Shore A
Load Capacity (Dynamic): 45kgs99lbs
Load Capacity (Static): 67.5kgs149lbs
Temperature: -20°C to +60°C-4°F to +140°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.21kgs0.5lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
