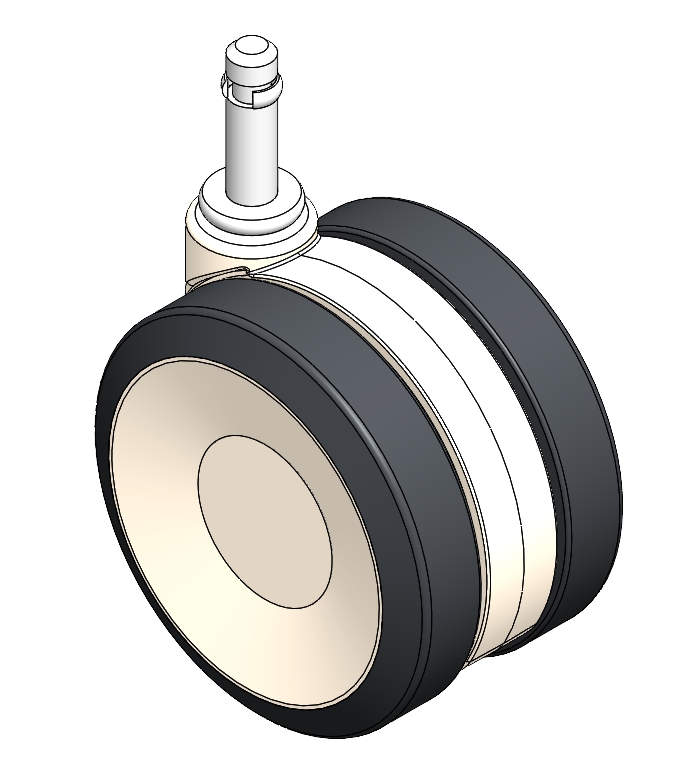

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
　　Yoyo Wheel (White dark gray) Wheel Diameter x Wheel Width 100 x 22mm
　　EAN
　　　　　 　　　
　　YJ-11100400247063 　　　
Swivel Caster, Cylindrical Stem injection-molded Fork—Ø11x38L reinforced Polypropylene Fork, insert-type Mounting Type mechanism Polypropylene (PP) core, polyvinyl chloride (PVC) tread White-dark gray, Bearing—Ball Bearing.
　　Wheel Tread: PVC polyvinyl chloride
　　Wheel Center: PP polypropylene

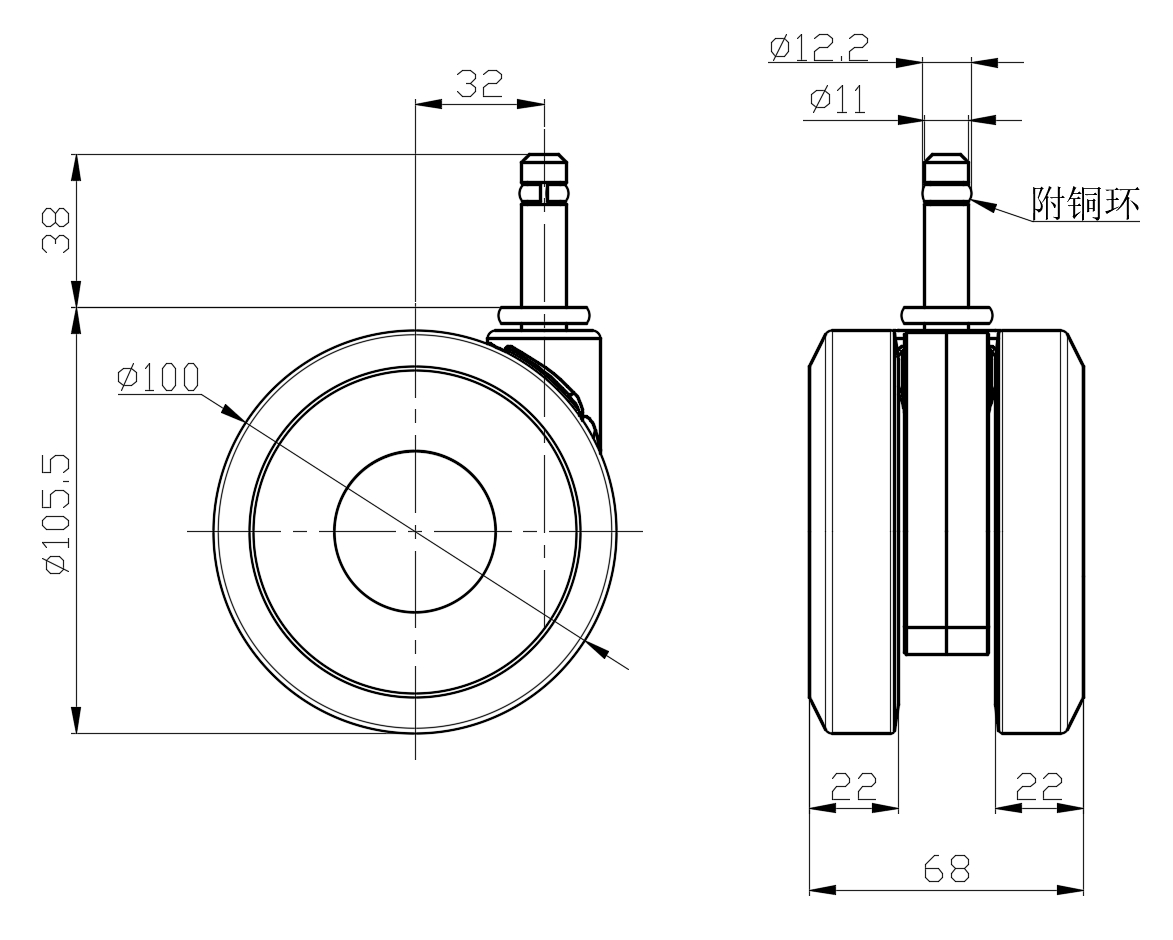

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 68mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 11mm　
　　Stem Length 38mm　
　　Offset 32mm　
　　Swivel Interference 176mm　
　　Overall Height 105.5mm　

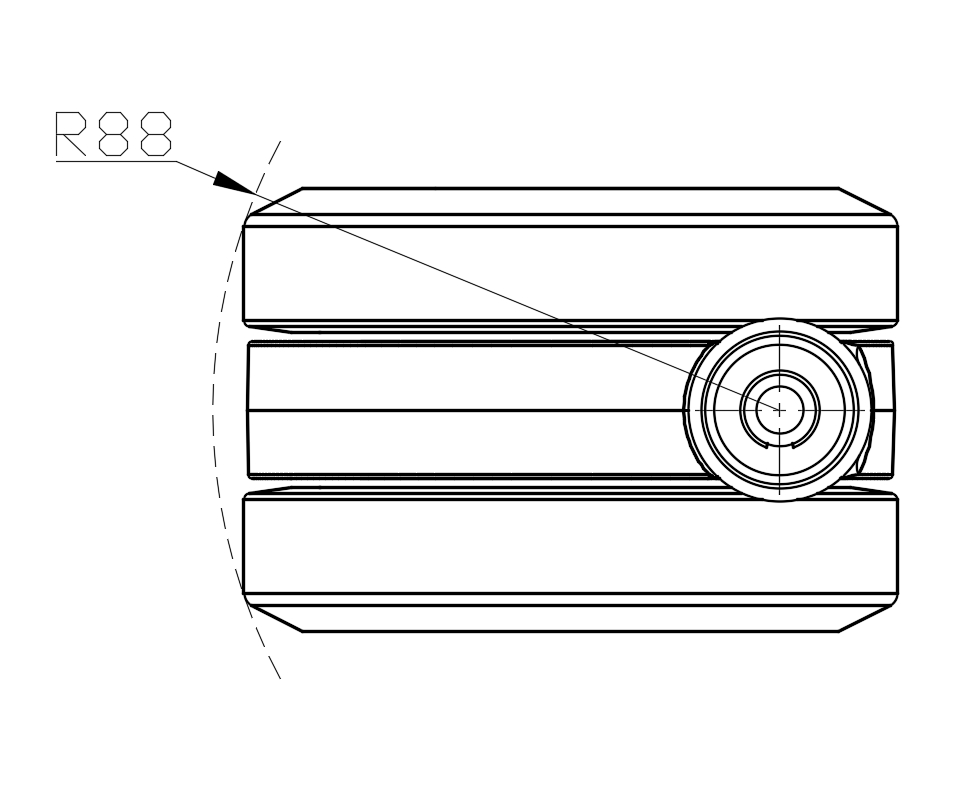

　　Swivel Radius 88mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.50kgs　
　　Standard ISO22883
　　
　　
