    Product Data Sheet

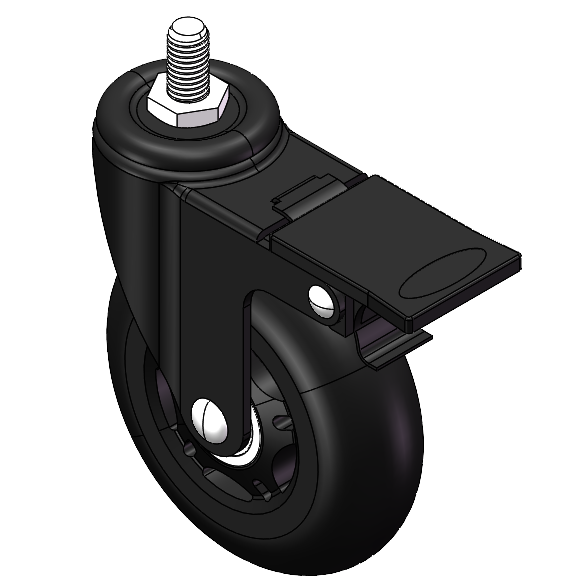

1110-2 Light Duty Wire & Shelving/Display Series
　　PU (Black Transparent) Wheel Diameter × Wheel Width 76 × 23.5mm
　　EAN
　　　　　 　　　
　　YJ-11100300956014 　　　
Single Brake locking system. Threaded, Riveted, Stamping Fork—M8-P1.25. Surface electroplating, Mounting Type - Threaded Stem. Polypropylene core, High Quality Polyurethane tread. Translucent black finish. Bearing—Ball Bearing.
　　Wheel Tread: high quality polyurethane
　　Wheel Center:Polypropylene

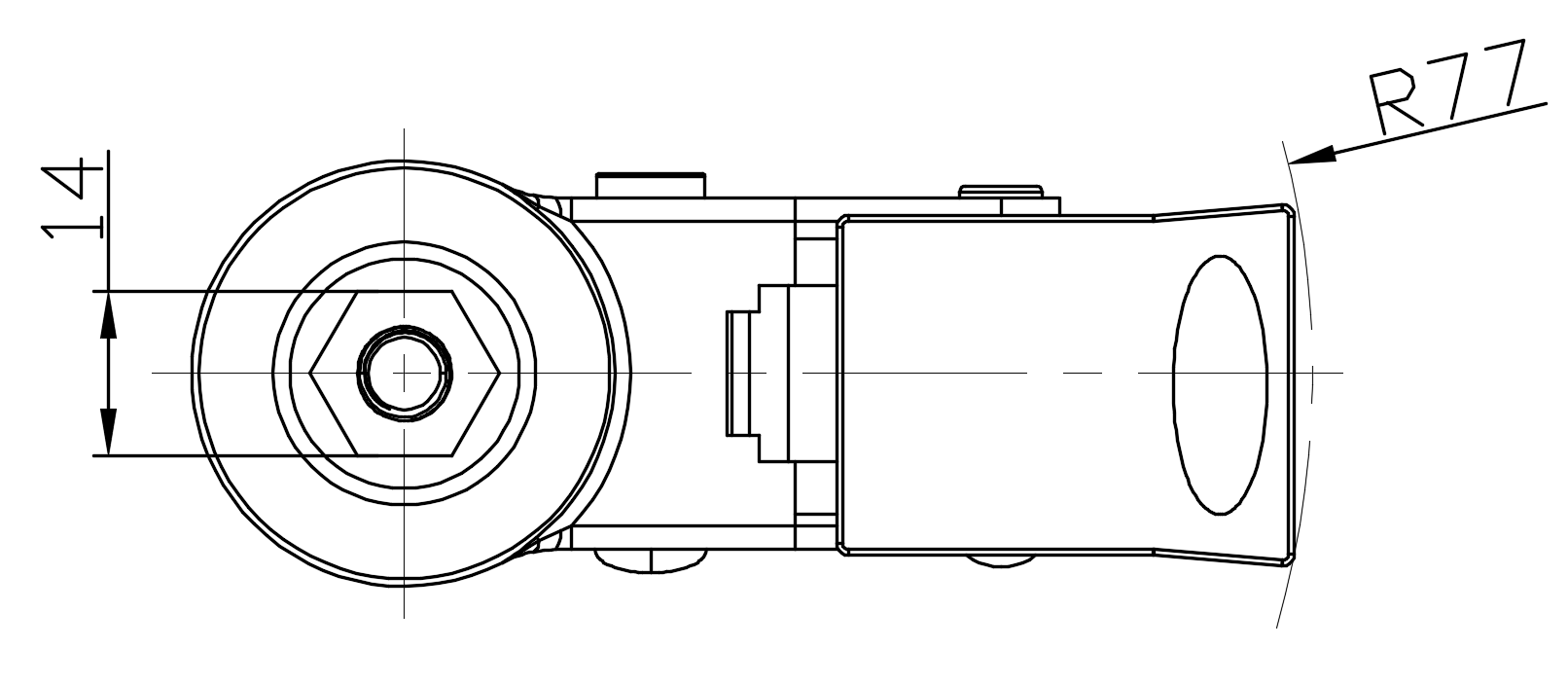

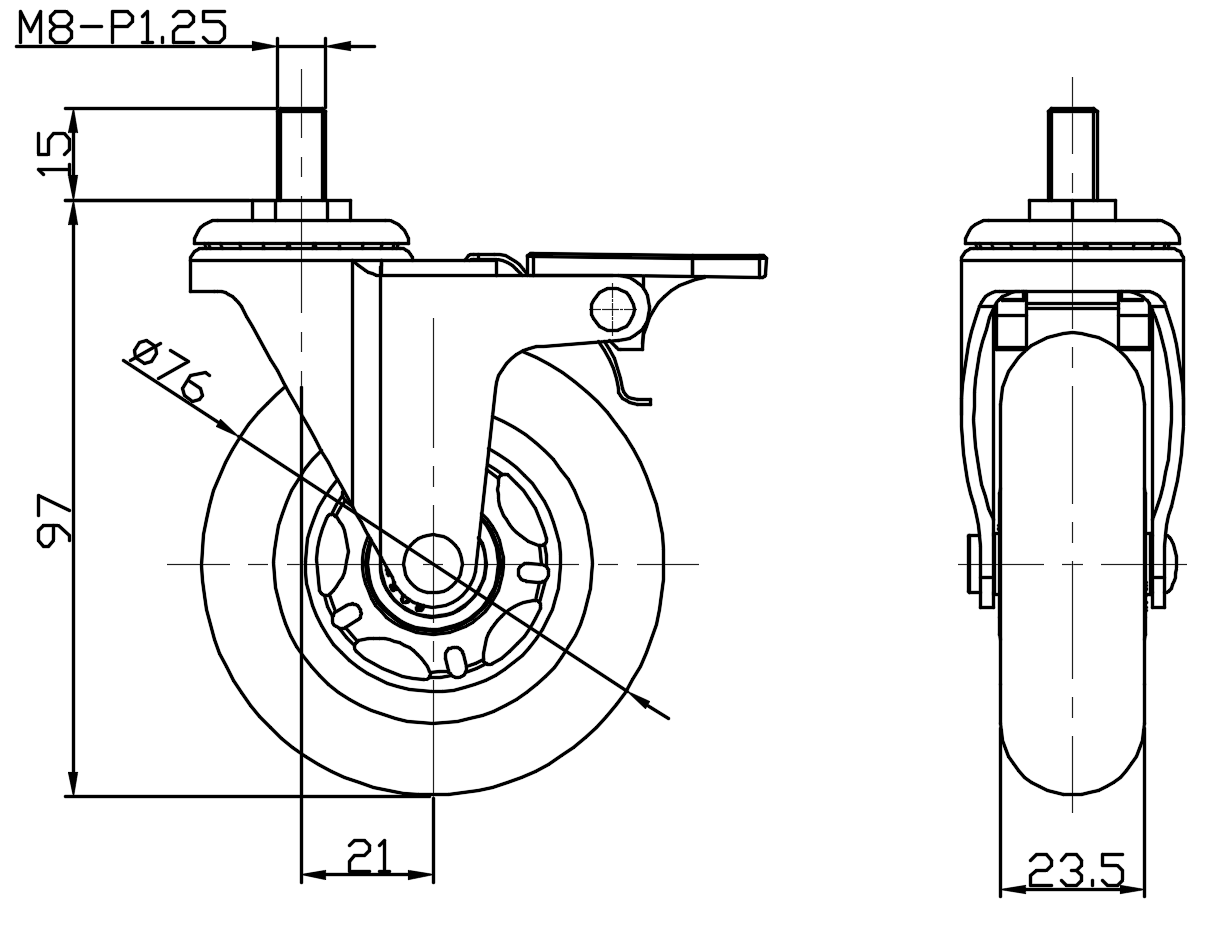

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 76mm　

　　Wheel Width 23.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M8-P1.25
　　Threaded Length 15mm
　　Offset 21mm　
　　Swivel Interference 154mm　
　　Overall Height 97mm　
　　Swivel Radius 77mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 50kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 75kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Wheel Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.25kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

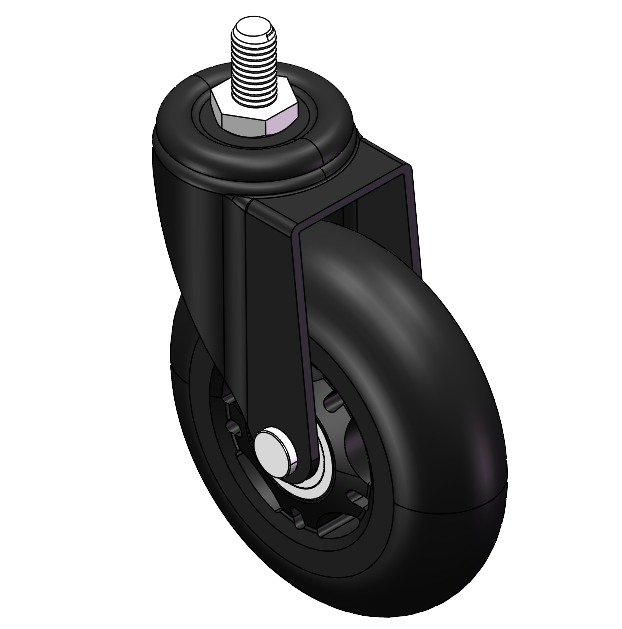

1110-2 Light Duty Wire & Shelving/Display Series
