    Product Data Sheet
1110-2 Light Duty Wire & Shelving/Display Series
　　PU (Black Transparent) Wheel Diameter × Wheel Width 76 × 23.5mm
　　EAN
　　　　　 　　　
　　YJ-11100300958014 　　　
Casters with a Wheel Brake Locking system. Stamped, Riveted Fork—Ø11x22L. E-Coat Finish surface, snap-on Mounting Type mechanism with brass buckle. Polypropylene core, High Quality Polyurethane tread. Translucent black finish. Bearing—Ball Bearing.
　　Wheel Tread: high quality polyurethane
　　Wheel Center:Polypropylene

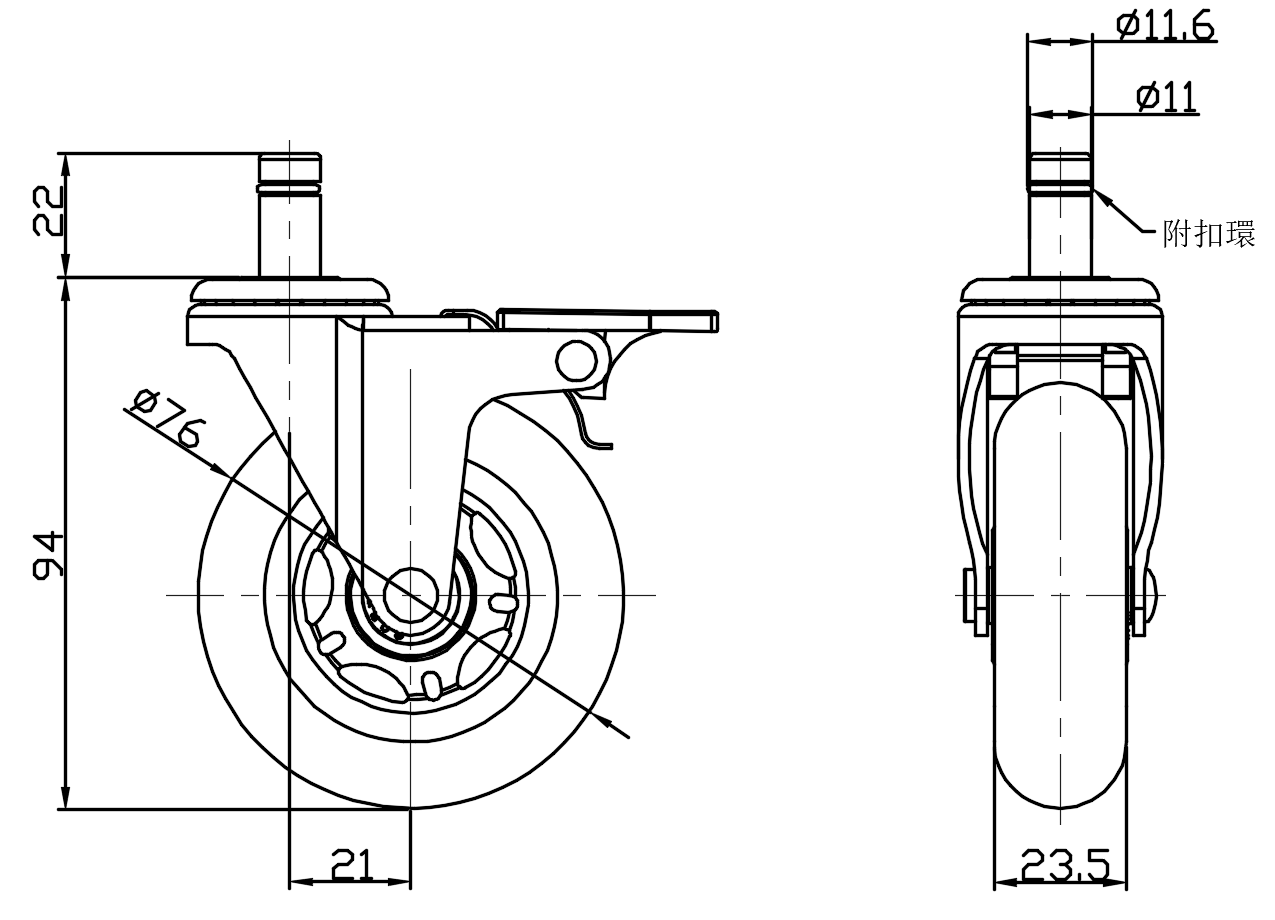

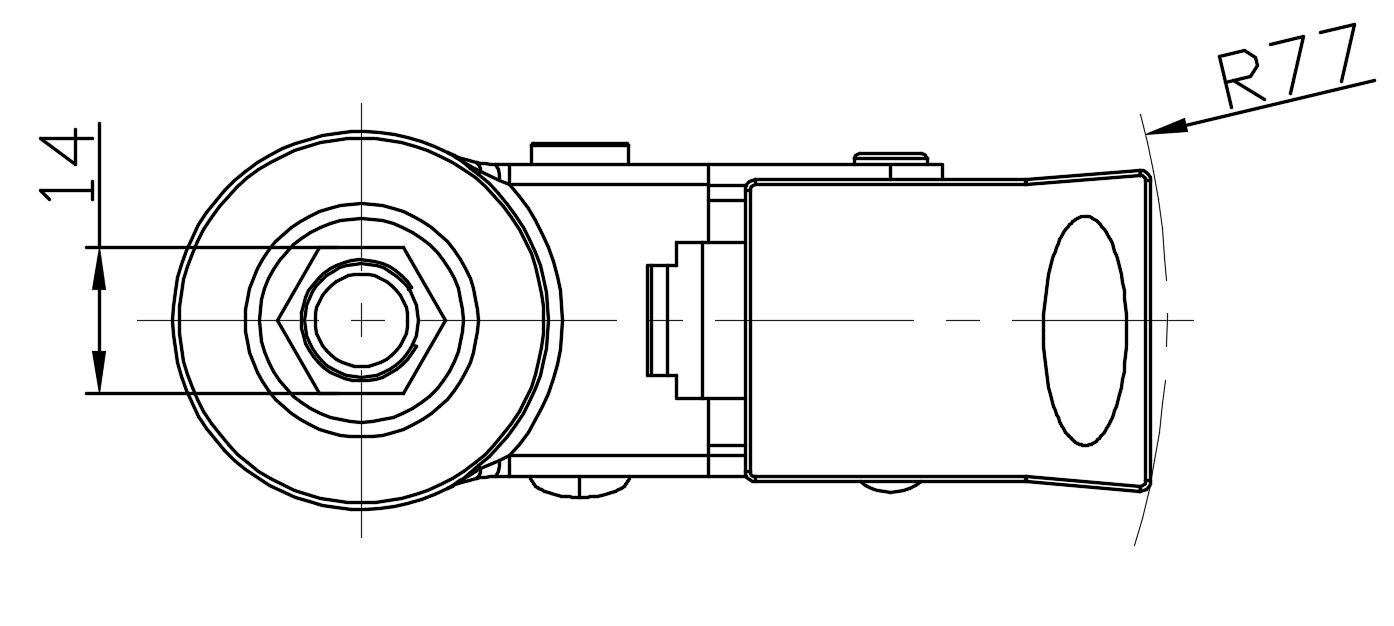

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 76mm　

　　Wheel Width 23.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 11mm　
　　Stem Length 22mm　
　　Offset 21mm　
　　Swivel Interference 154mm　
　　Overall Height 97mm　
　　Swivel Radius 77mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 50kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 75kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Wheel Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.26kgs　
　　Standard ISO22883
　　
　　
