    Product Data Sheet
1110-2 Light Duty Wire & Shelving/Display Series
　　PU (black transparent) Wheel Diameter × Wheel Width 64 × 23.5mm
　　EAN
　　　　　 　　　
　　YJ-11100250954014 　　　
Casters with a single-brake With locking system. Top Plate with Riveted, Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacings.
Electroplated surface, Mounting Type - Top Plate.
Polypropylene core with High Quality Polyurethane Wheel Tread.
Translucent black finish. Bearings with Ball Bearings.
　　Wheel surface: high quality polyurethane
　　Wheel Center:Polypropylene

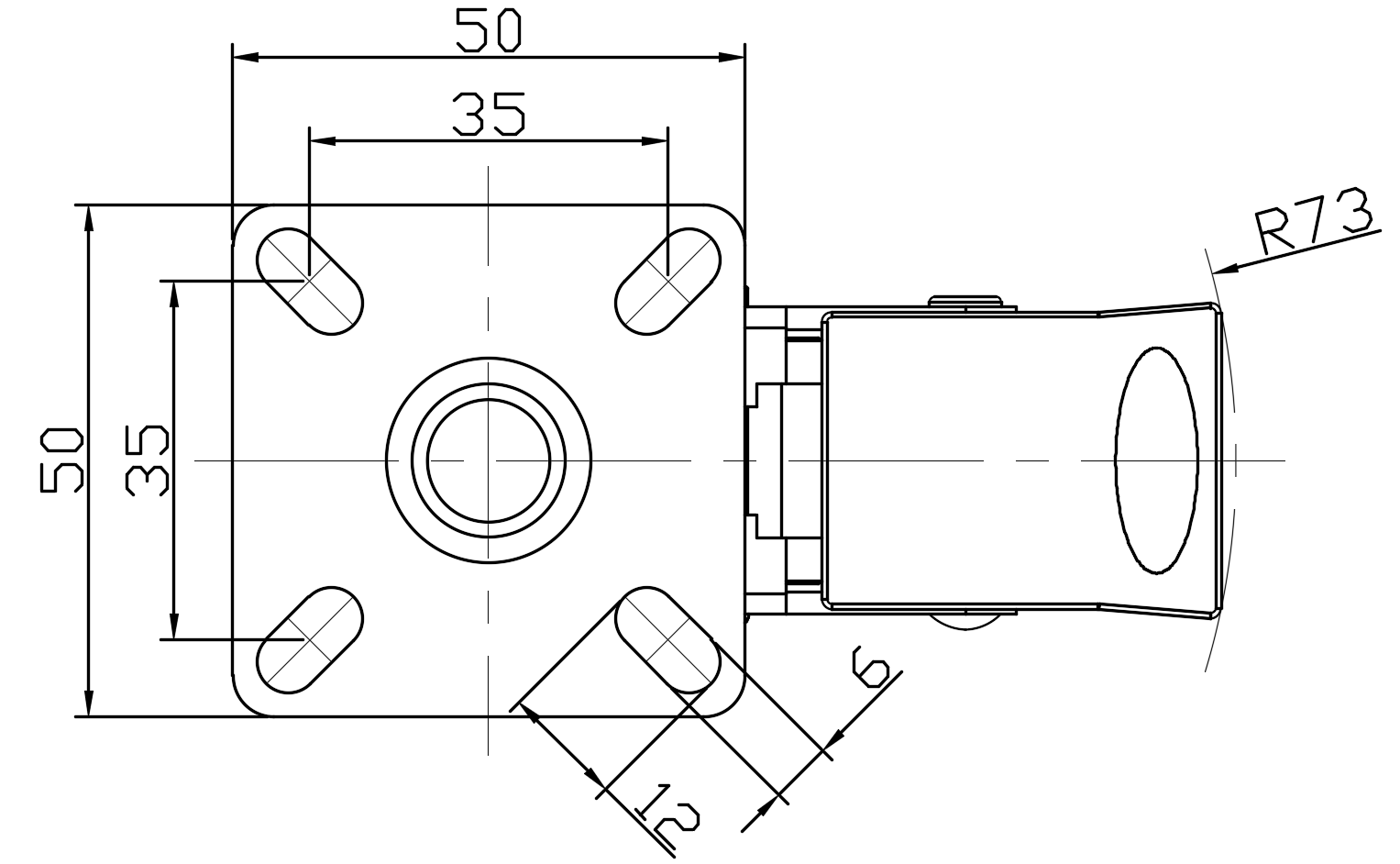

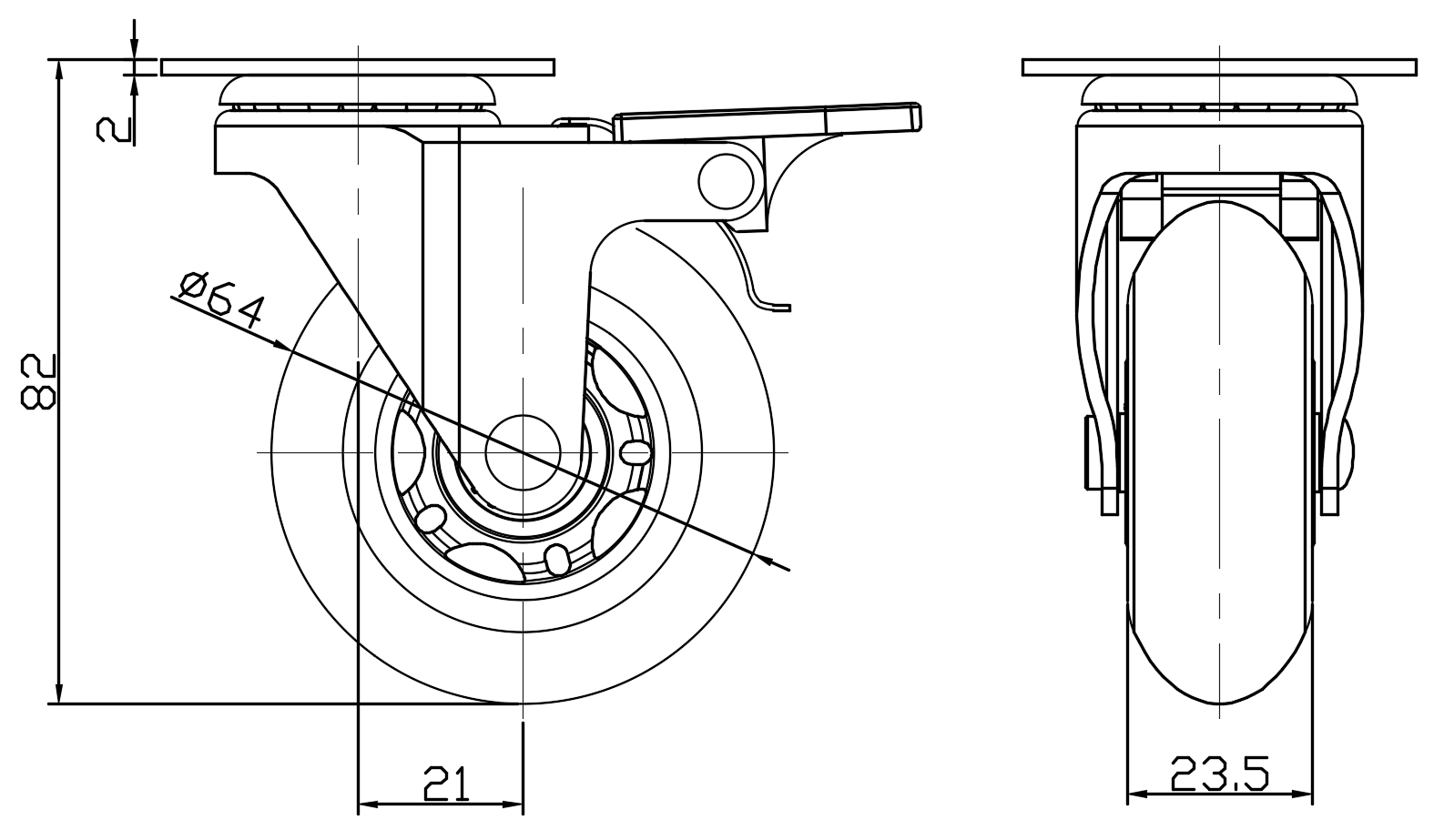

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 64mm　

　　Wheel Width 23.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 50 x 50mm　
　　Bolt Hole Spacing 35 x 35mm　
　　Plate Hole 12 x 6.1mm　
　　Offset 21mm　
　　Swivel Interference 146mm　
　　Overall Height 82mm　
　　Swivel Radius 73mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 40kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 60kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Wheel Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.24kgs　
　　Standard ISO22883
　　
　　
