Product Data Sheet
1111 Institutional Caster Series
  Rubber Wheel Diameter × Wheel Width 75 x 30mm
  EAN

  YJ-11110300062013
Swivel Caster, Top Plate Riveted Stamping Fork - high-grade hole Surface Zine-Plated, Mounting Type - Top Plate Reinforced Polypropylene, High-Quality Resilient Rubber Wheel Tread Wheel - Anti-thread wheel cover
  Wheel Tread: high quality elastic rubber
  Wheel Center: Thermoplastic (PA6)

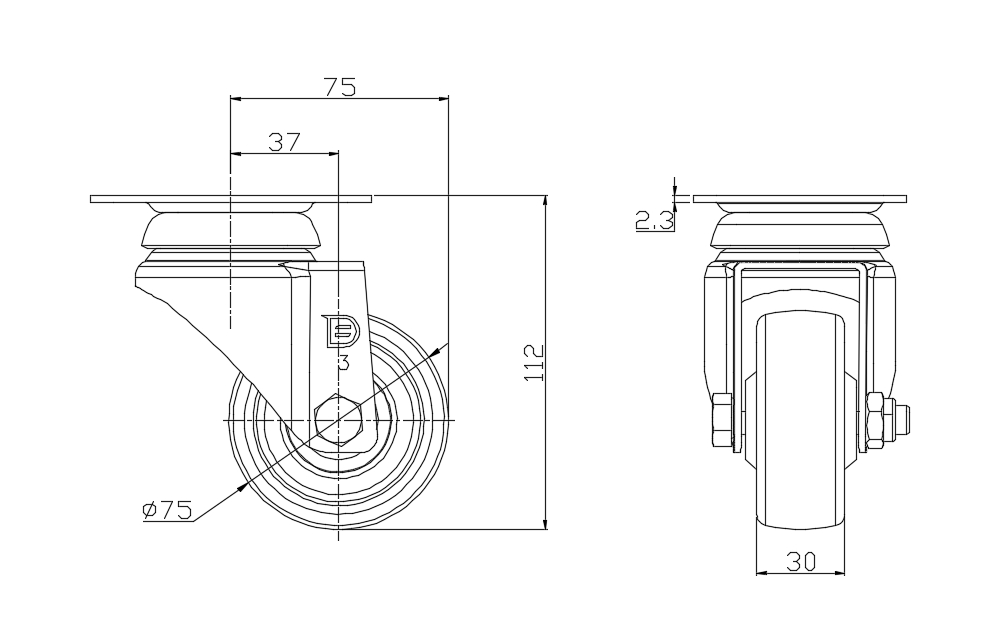

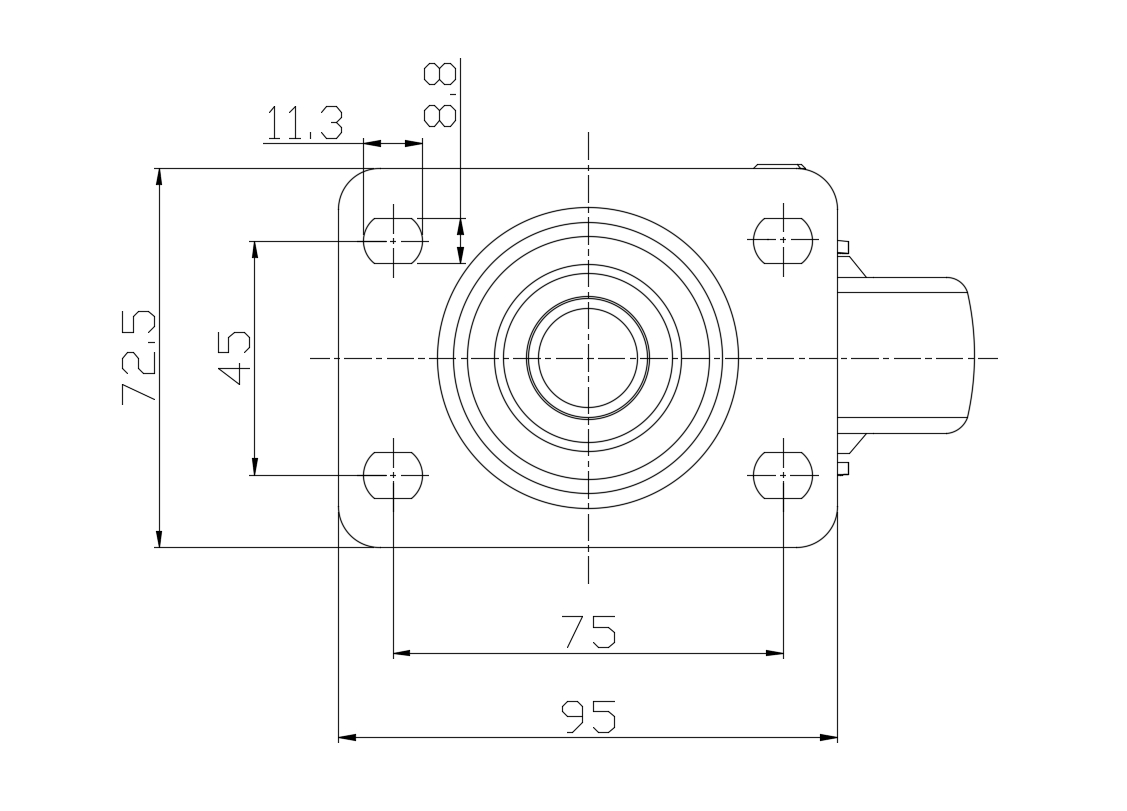

    Drawings are for reference only and may differ from the product




      Metric Imperial
  Wheel Diameter 75mm

  Wheel Width 30mm
  Wheel Bearing Wheel With Plain Bearing
  Plate Size 95 x 72.5mm
  Bolt Hole Spacing 75 x 45mm
  Plate Hole 11.3 x 8.8mm
  Offset 37mm
  Swivel Interference 150mm
  Overall Height 112mm
  Swivel Radius 75mm
  Hardness Of Tread 80±5° Shore A
  Load Capacity (Dynamic) 70kgs


  Rolling Resistance
        ● ● ● ○ ○

  Operating Noise        ● ● ● ● ○

  Floor Surface Preservation  ● ● ● ● ○

  Load Capacity (Static) 105kgs
  Temperature -20°C to +120°C
  Fork Type Swivel Caster
  Stainless N/A
  Electrical Conductivity N/A
  Anti-Static N/A
  Weight 0.75kgs
  Standard ISO22883
