Product Data Sheet |
![]() |
![]() |
![]() |
||
1111 Institutional Caster Series |
![]() |
![]() |
||||
W Resolute(Pearlescent dark gray) Wheel Diameter × Wheel Width 100 x 31mm |
![]() |
![]() |
||||
EAN |
![]() |
|||||
YJ-11110400452113 |
![]() |
|||||
![]() |
![]() |
|||||
Swivel castor, Fork Riveted Stamping Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Surface Zine-Plated, Top Plate Mounting Type Reinforced impact resistant High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Pearl grey, Bearing - Ball Bearing. |
![]() |
|||||
![]() |
![]() |
|||||

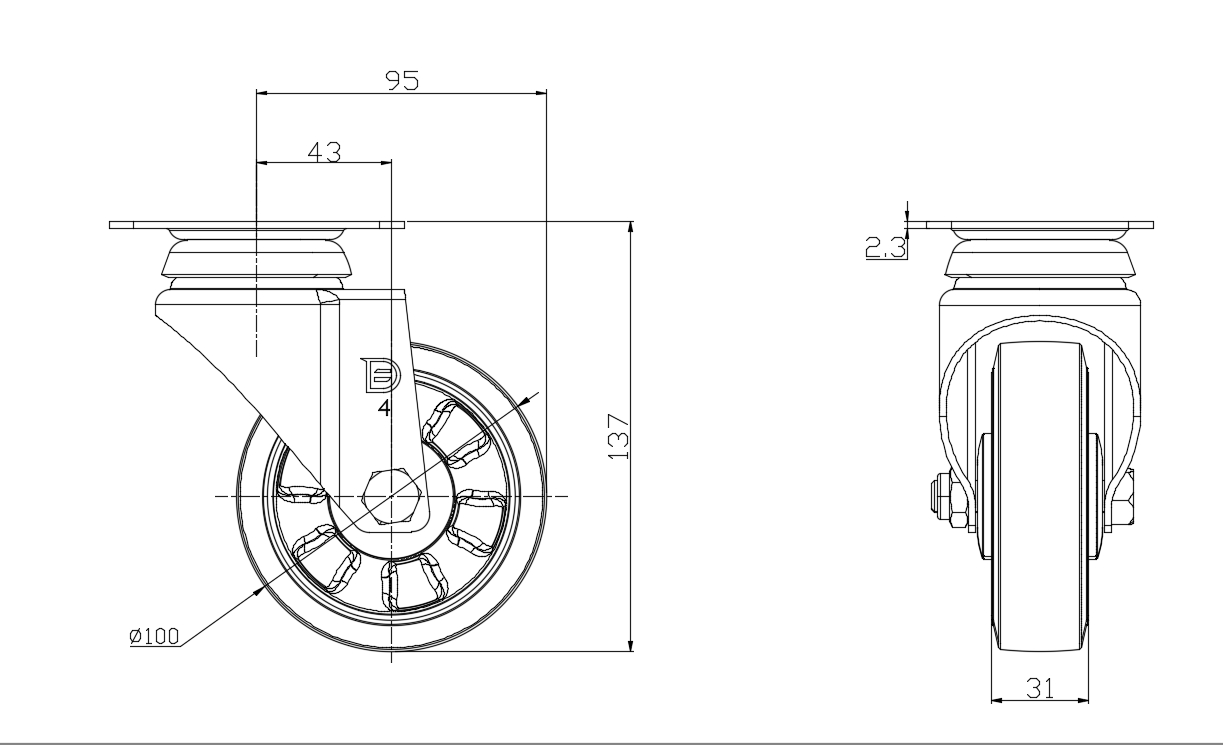

Wheel tread: Thermoplastic rubber elastomer (TPR) Wheel Center: Made of high-quality impact-resistant polypropylene Drawings are for reference only and may differ from the product |
![]() |
|||||
![]() |
![]() |
|||||
![]() Metric Imperial
Wheel Diameter
100mm
Wheel Width
31mm
|
![]() |
![]() |
||||
Wheel Bearing
Wheels With Ball Bearings

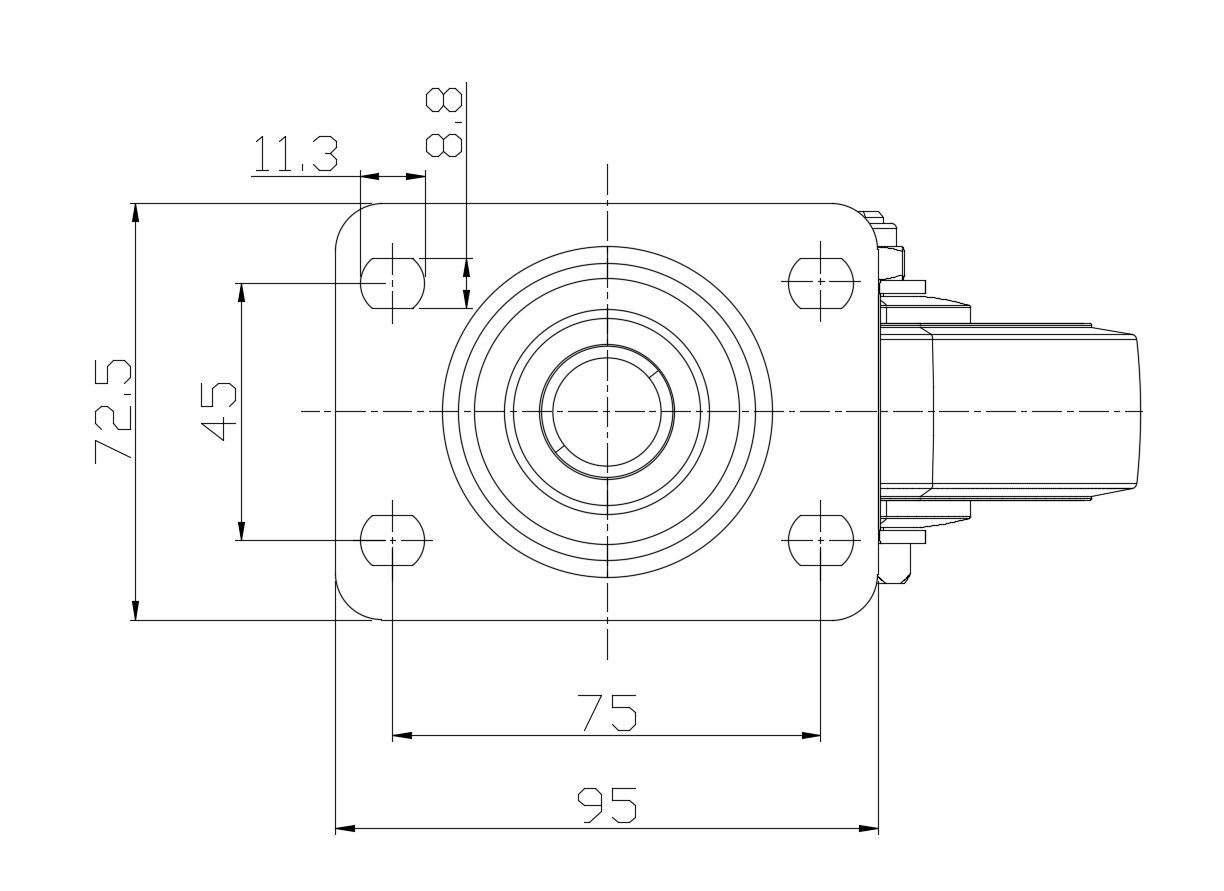

Plate Size
95 x 72.5mm
Bolt Hole Spacing
75 x 45mm
Plate Hole
11.3 x 8.8mm
Offset
43mm
Swivel Interference
190mm
Overall Height
137mm
Swivel Radius
95mm
Hardness Of Tread
72±5° Shore A
Load Capacity (Dynamic)
135kgs
|
Rolling Resistance ● ● ● ● ● Operating Noise ● ● ● ● ● Floor Surface Preservation ● ● ● ● ● |
|||||
Load Capacity (Static)
202.5kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster
|
![]() |
|||||
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.80kgs
Standard
ISO22883
|
![]() |
![]() |
||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
