    Product Data Sheet

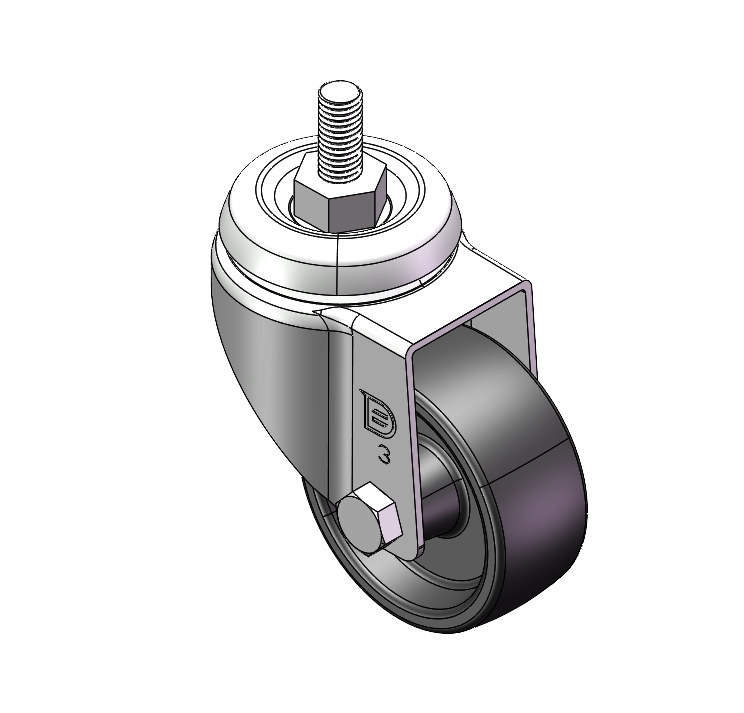

1111 Institutional Caster Series
　　PP (black) Wheel Diameter x Wheel Width 75 x 32mm
　　EAN
　　　　　 　　　
　　YJ-11110300295123 　　　
Swivel Caster, thread-Riveted Stamping Fork Fork—1/2"-13 Extended control lever surface, Mounting Type - Threaded Stem device + anti-loosening glue Polypropylene Wheel Center and Wheel Tread Black, wheel—Anti-thread wheel cover.
　　Wheel tread: PP polypropylene
　　Wheel Center: PP polypropylene

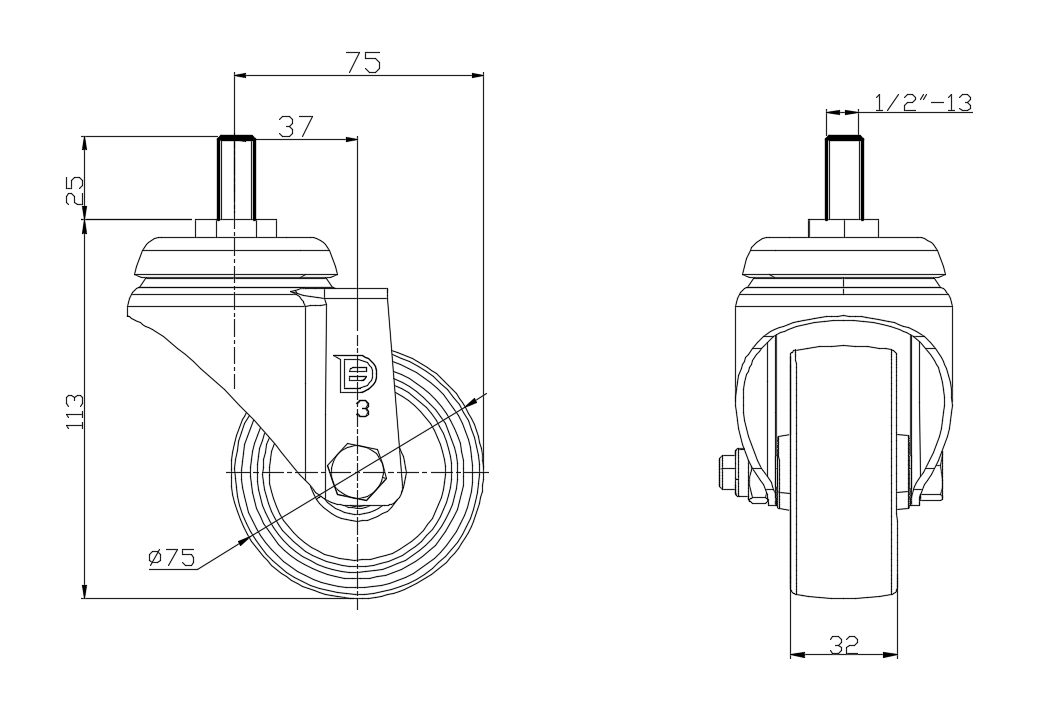

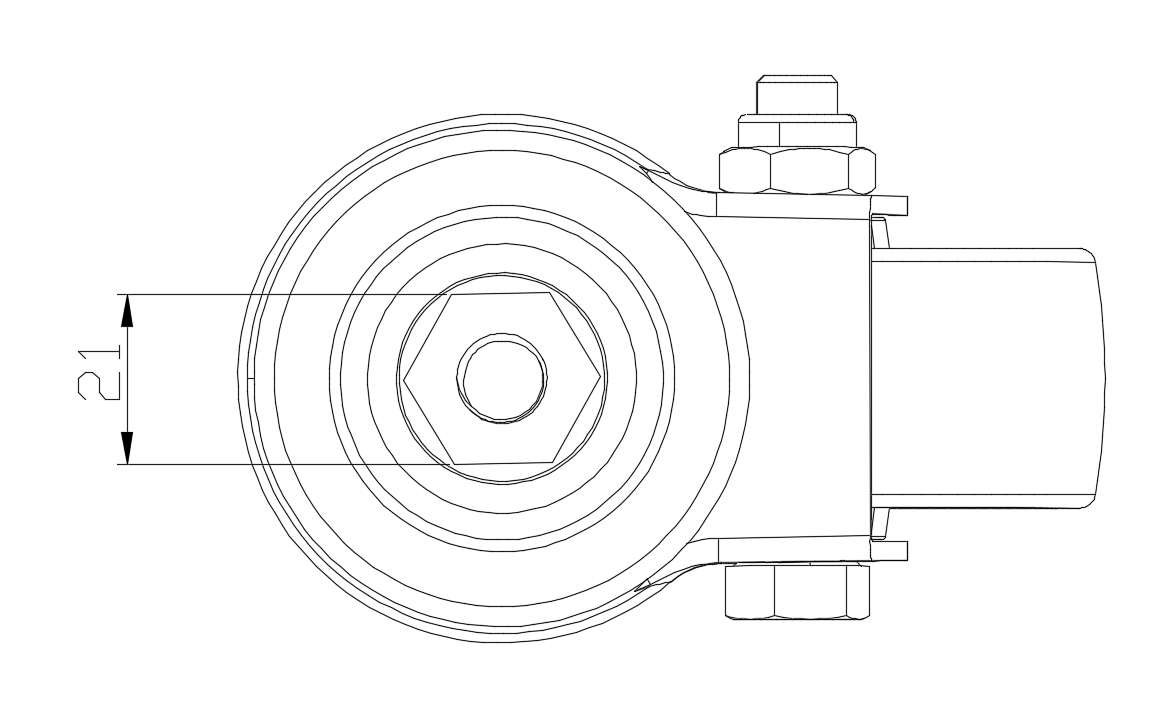

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem 1/2＂-13
　　Threaded Length 25mm
　　Offset 37mm　
　　Swivel Interference 150mm　
　　Overall Height 113mm　
　　Swivel Radius 75mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 135kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.54kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

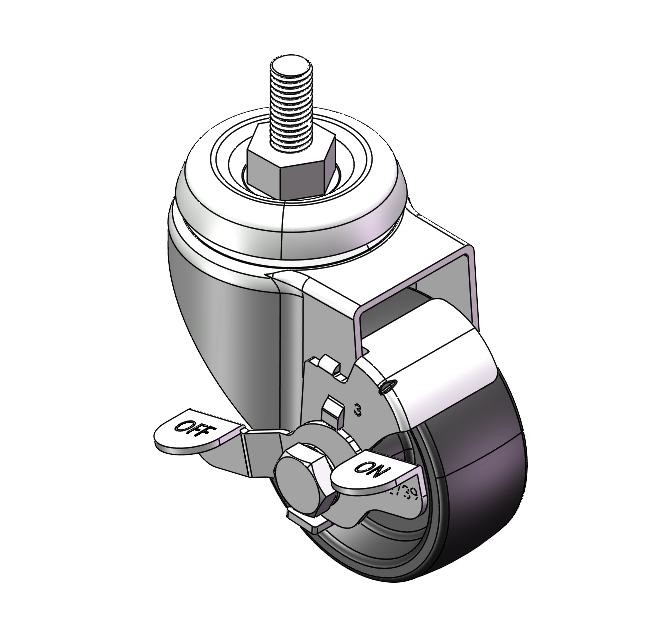

1111 Institutional Caster Series
