    Product Data Sheet
1111 Institutional Caster Series
　　Resolute (Gray deep gray) Wheel Diameter x Wheel Width 75 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11110300459013 　　　
Swivel Caster, Single Bolthole Stamping Fork - ∅10.5 Extended control lever surface, Mounting Type - Threaded Stem device High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Dark gray, Bearing - Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

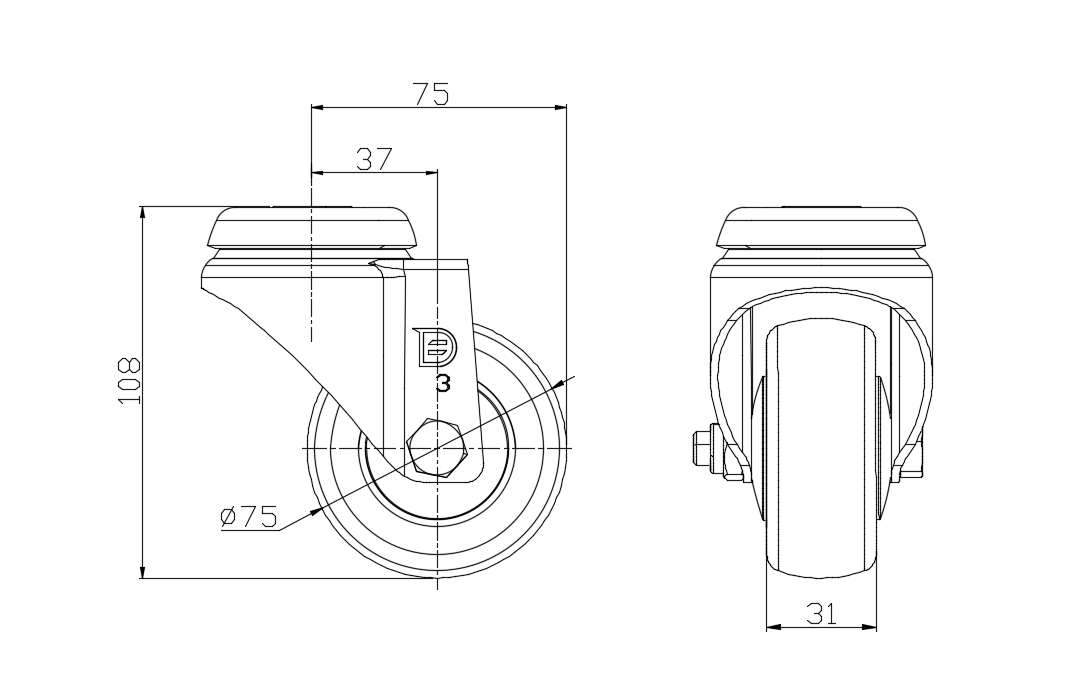

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

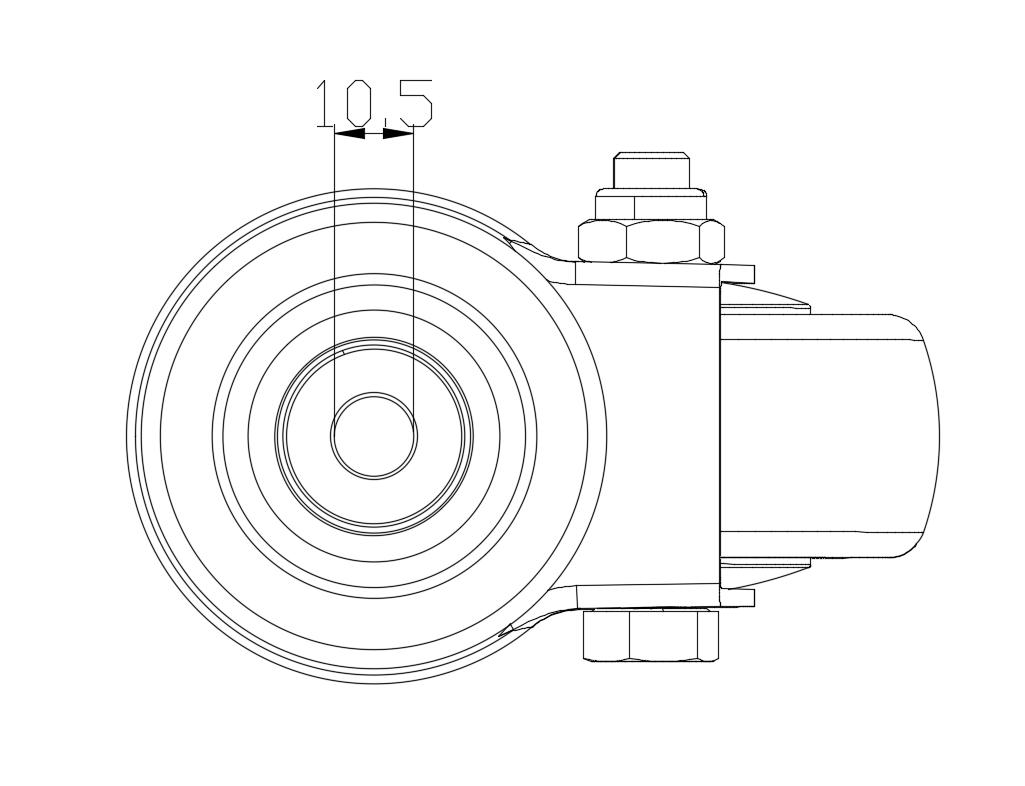

　　Single Bolt HoleCentre Hole 10.5mm　
　　Offset 37mm　
　　Swivel Interference 150mm　
　　Overall Height 108mm　
　　Swivel Radius 75mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.59kgs　
　　Standard ISO22883
　　
　　
