    Product Data Sheet
1111 Institutional Caster Series
　　WCPD (Black) Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11110400442013 　　　

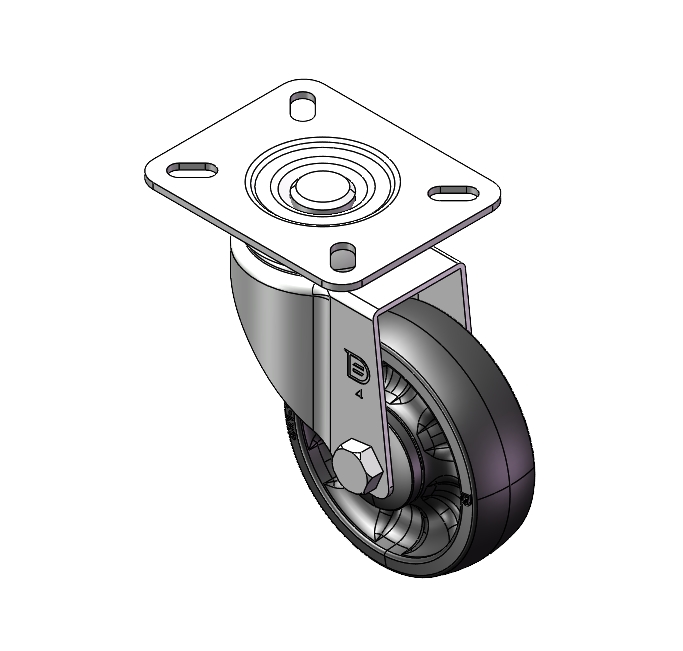

Swivel Casters, Top Plate Riveted Stamping Fork - European standard oblique hole Extended control lever surface, Mounting Type - Top Plate Polypropylene Wheel Center and Wheel Tread Black, Bearing - Ball Bearing
　　Wheel Tread: PP polypropylene
　　Wheel Center: PP polypropylene

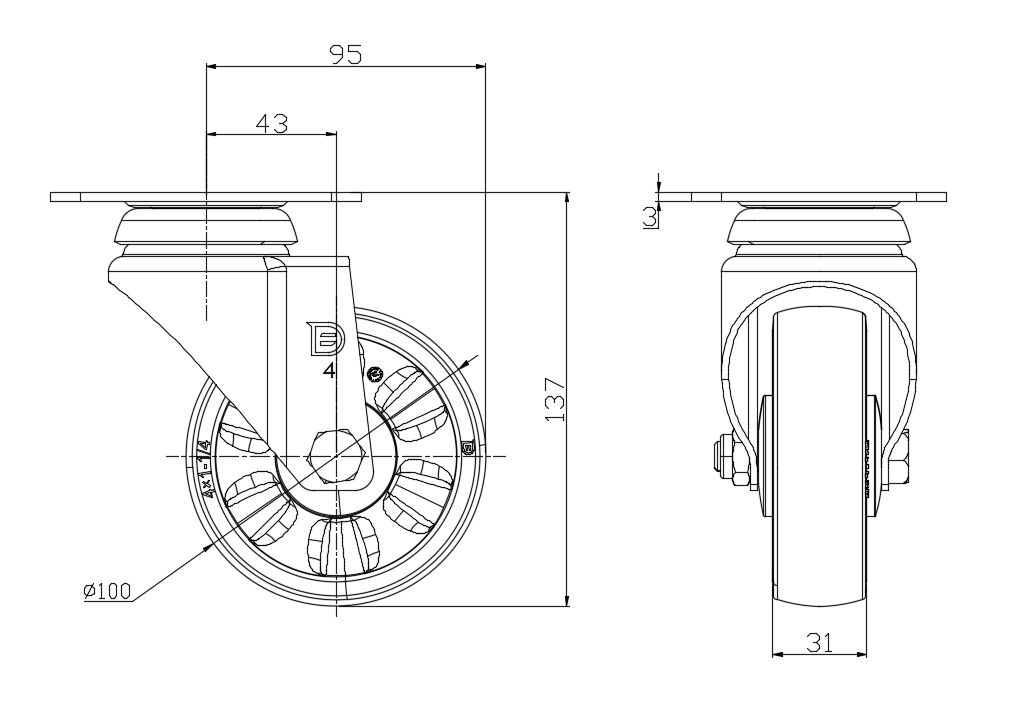

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

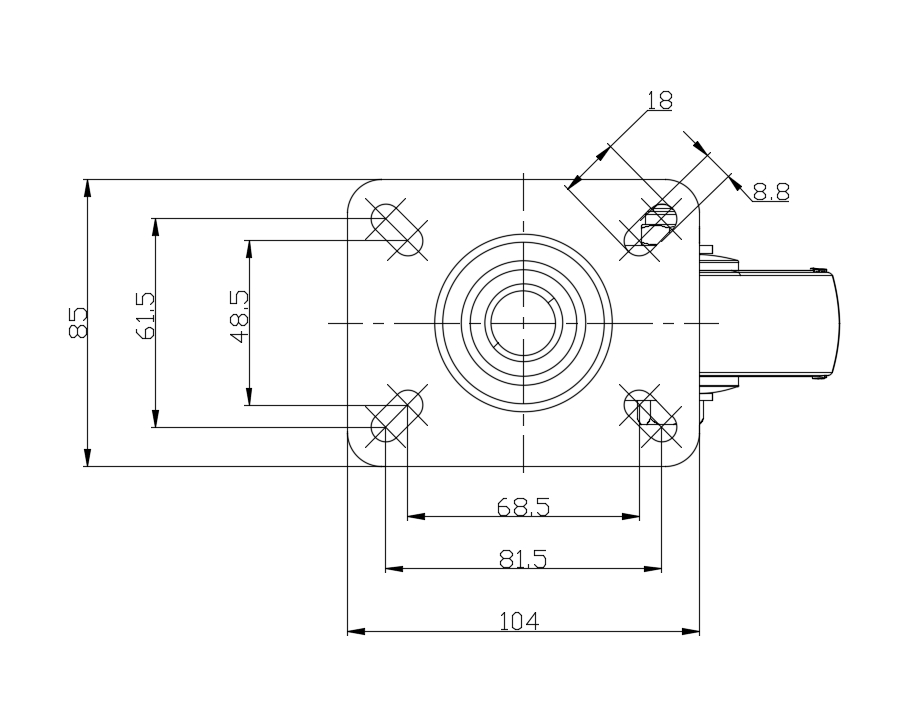

　　Plate Size 104 x 85mm　
　　Bolt Hole Spacing 80 x 60mm　
　　Plate Hole 18 x 8.8mm　
　　Offset 43mm　
　　Swivel Interference 190mm　
　　Overall Height 137mm　
　　Swivel Radius 95mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 130kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 195kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.01kgs　
　　Standard ISO22883
　　
　　
