    Product Data Sheet
1111 Institutional Caster Series
　　Rubber Wheel Diameter × Wheel Width 125 x 30.5mm
　　EAN
　　　　　 　　　
　　YJ-11110500062033 　　　

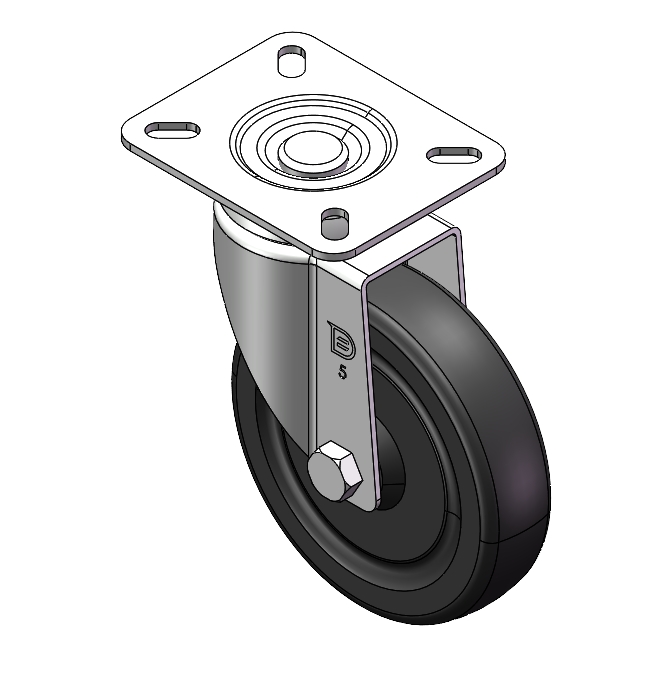

Swivel Casters, Top Plate Riveted Stamping Fork - European standard oblique hole Extended control lever surface, Mounting Type - Top Plate Reinforced Polypropylene, High-Quality Resilient Rubber Wheel Tread Wheel - middle tube type
　　Wheel Tread: high quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

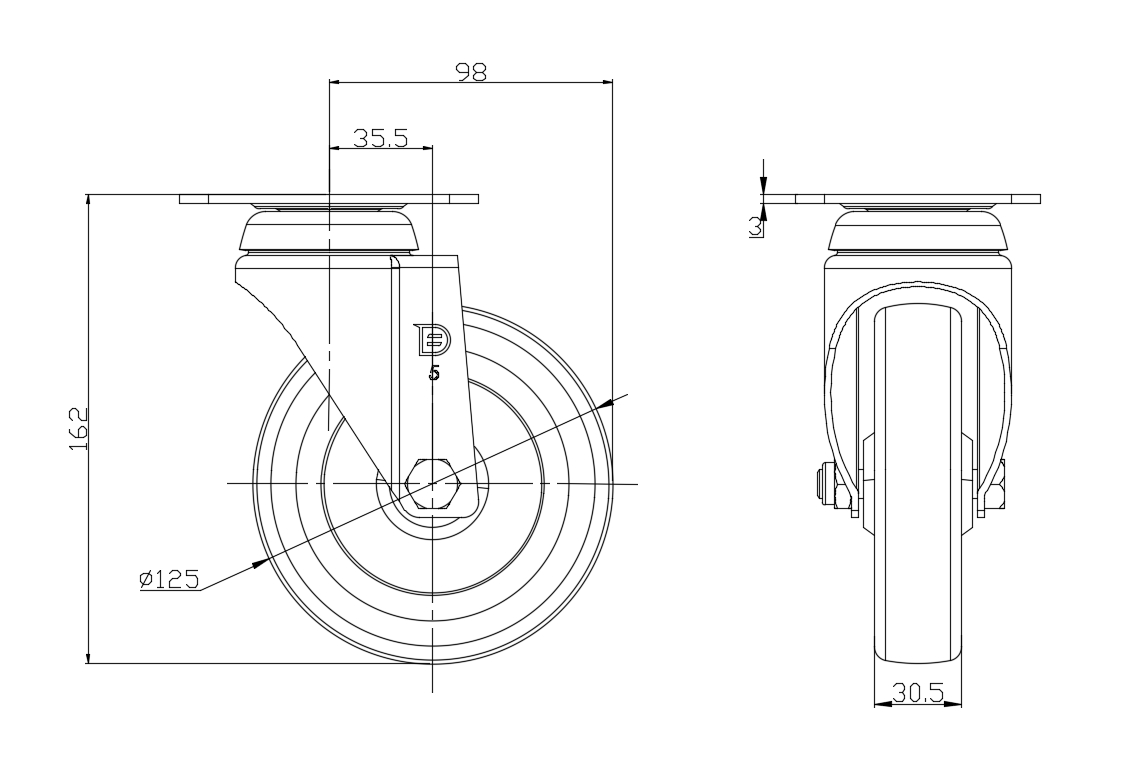

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 30.5mm　
　　Wheel Bearing Wheel With Plain Bearing

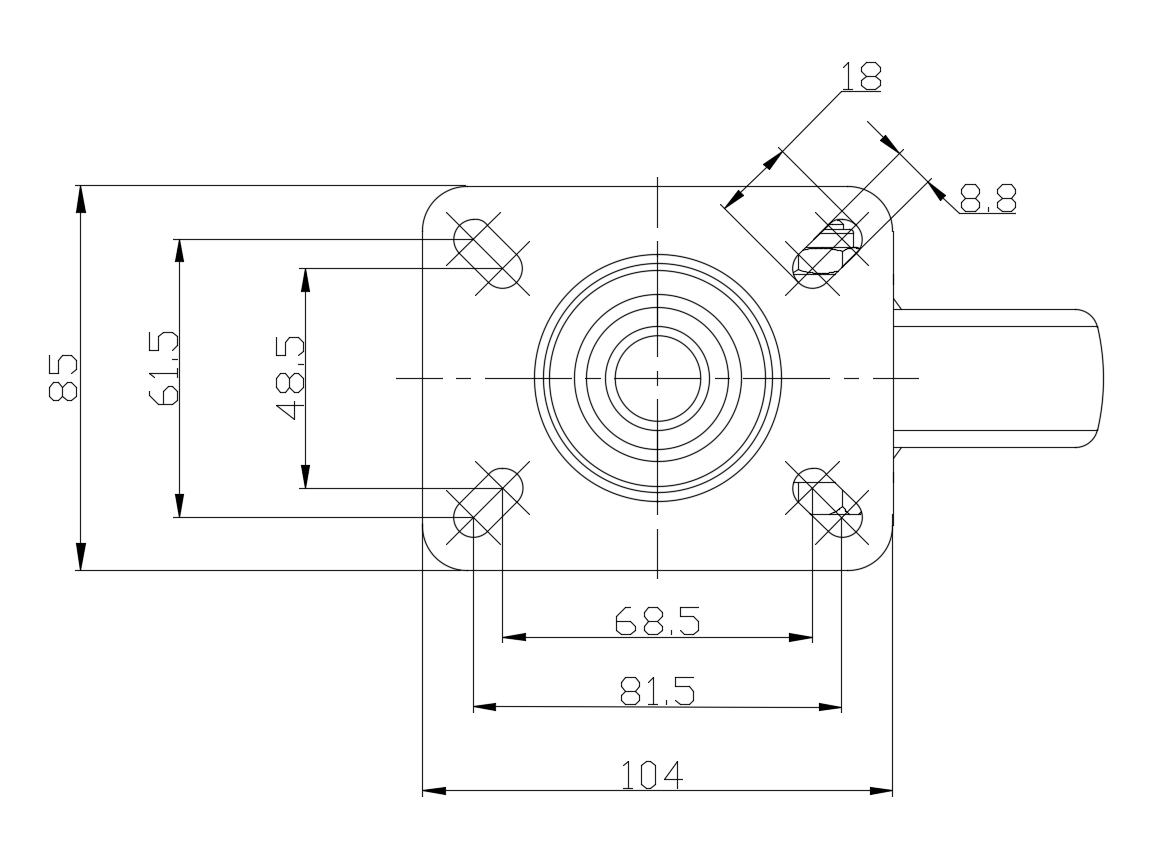

　　Plate Size 104 x 85mm　
　　Bolt Hole Spacing 80 x 60mm　
　　Plate Hole 18 x 8.8mm　
　　Offset 35.5mm　
　　Swivel Interference 196mm　
　　Overall Height 162mm　
　　Swivel Radius 98mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.22kgs　
　　Standard ISO22883
　　
　　
