    Product Data Sheet
1111 Institutional Caster Series
　　PAU (grey) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11110500321013 　　　

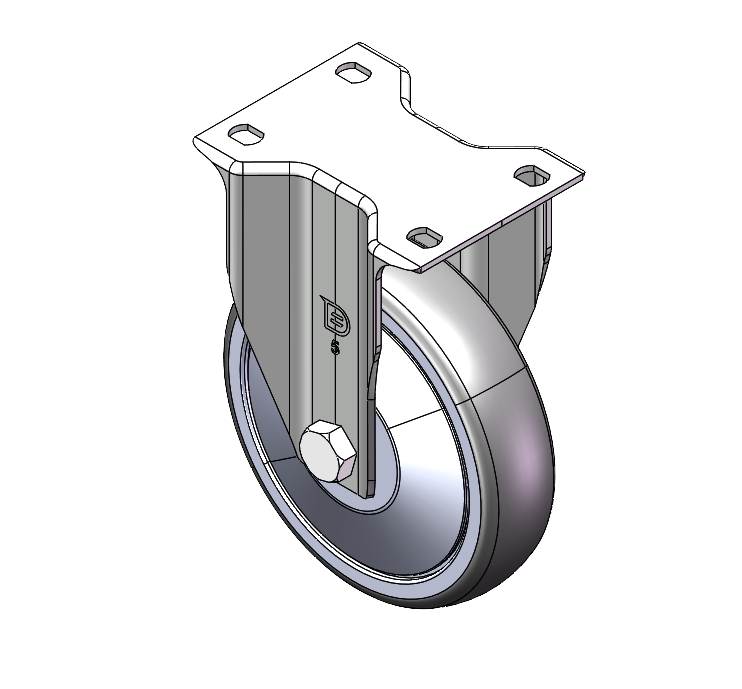

Rigid castor, Stamping Fabricated Caster Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Surface Zine-Plated, Top Plate Mounting Type Reinforced Polypropylene, High Quality Polyurethane Wheel Tread Grey, Bearing - Ball Bearing.
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: Thermoplastic (PA6)

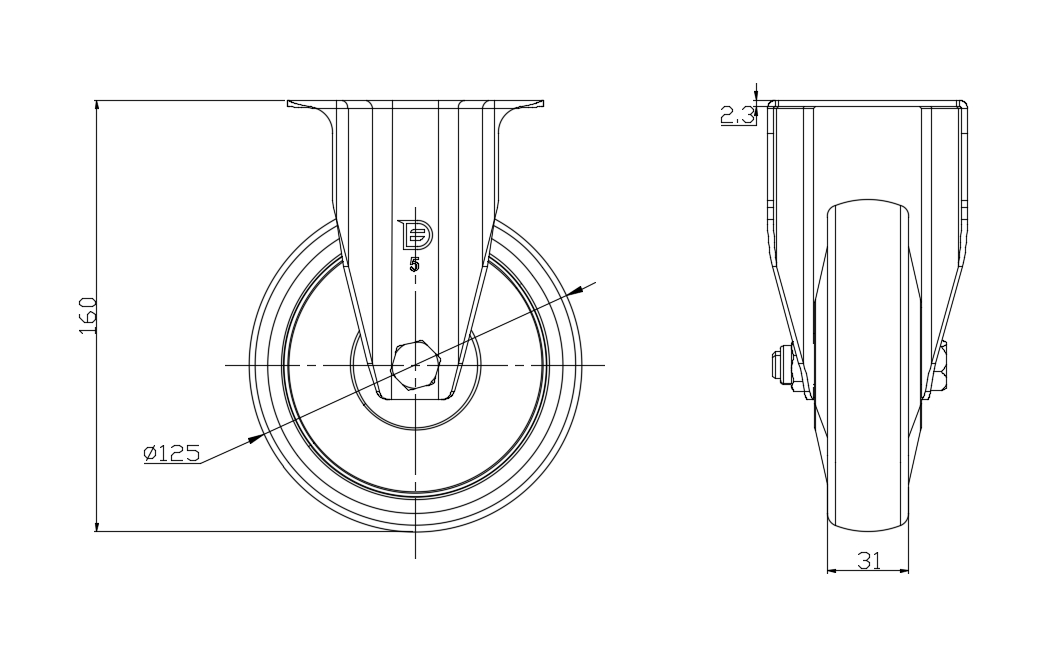

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

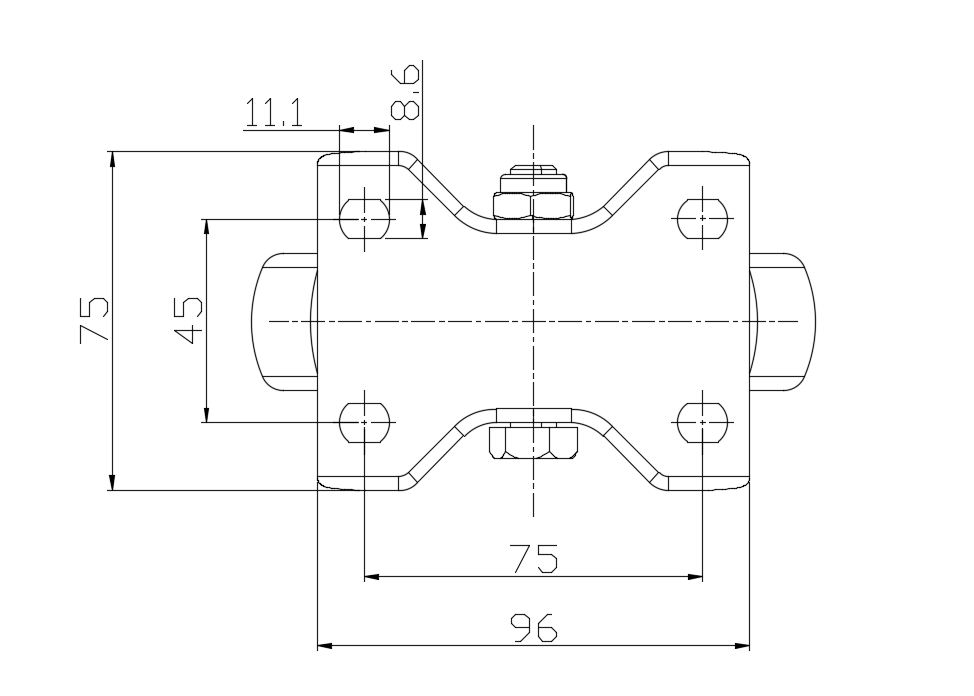

　　Plate Size 96 x 75mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 11.1 x 8.6mm　
　　Overall Height 160mm　
　　Hardness Of Tread 94±5° Shore A　
　　Load Capacity (Dynamic) 130kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 195kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.71kgs　
　　Standard ISO22883
　　
　　
