    Product Data Sheet
1111 Institutional Caster Series
　　AQPU (grey round) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11110500609014 　　　

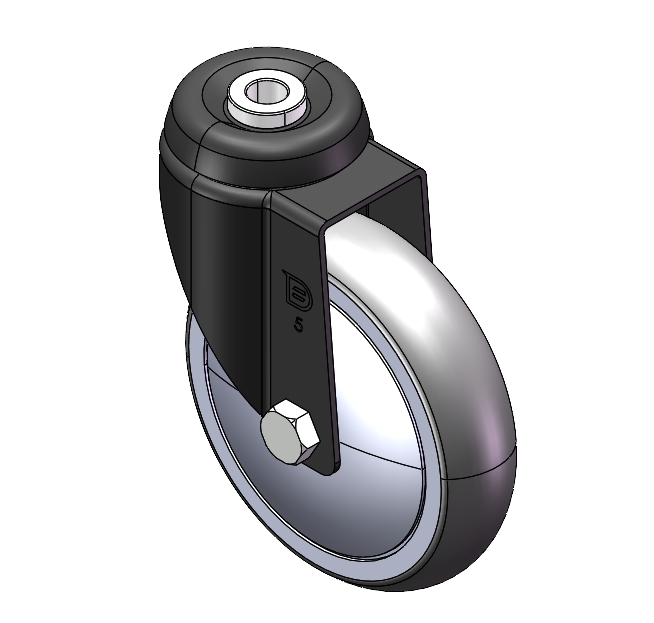

Swivel Caster, Single Bolthole Stamping Fork - ∅12.5 Surface electroplating, Mounting Type - Single Bolthole device Aluminum core, High Quality Polyurethane Wheel Tread Gray, Bearing - Ball Bearing.
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: Aluminum core

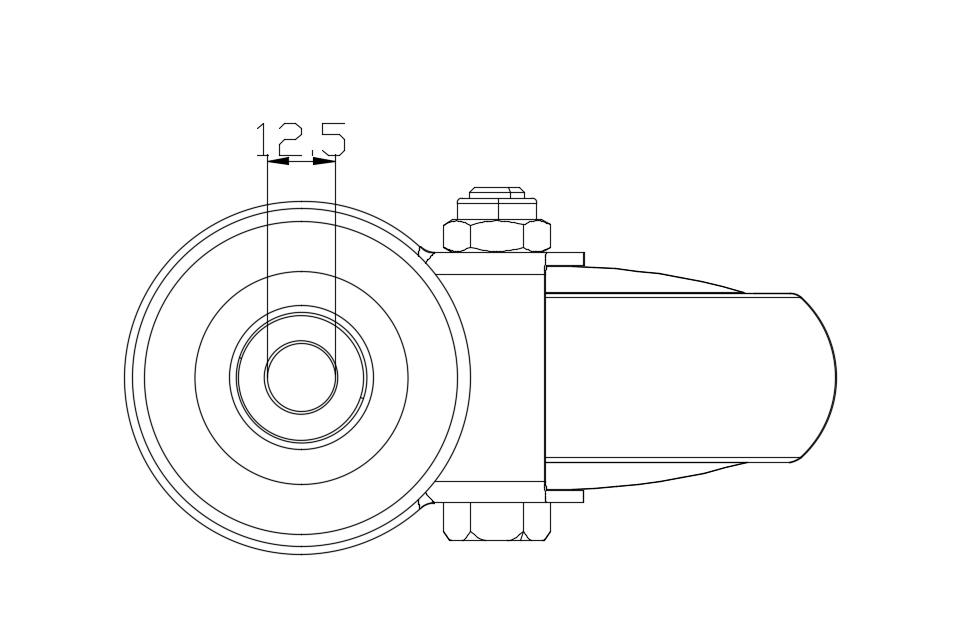

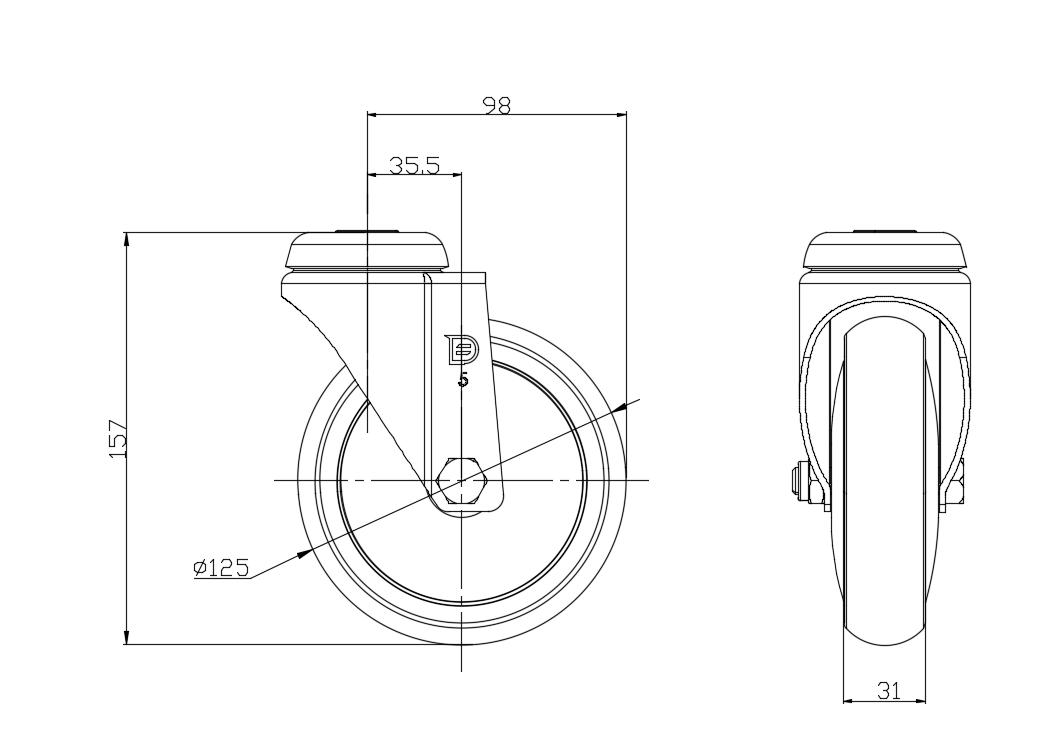

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Single Bolt HoleCentre Hole 12.5mm　
　　Offset 35.5mm　
　　Swivel Interference 196mm　
　　Overall Height 157mm　
　　Swivel Radius 98mm　
　　Hardness Of Tread 77±5° Shore A　
　　Load Capacity (Dynamic) 230kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 345kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.93kgs　
　　Standard ISO22883
　　
　　
