    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PU (green) Wheel Diameter × Wheel Width 101 x 50.6mm
　　EAN
　　TW-4111204001001 　　　
　　　　　 　　　

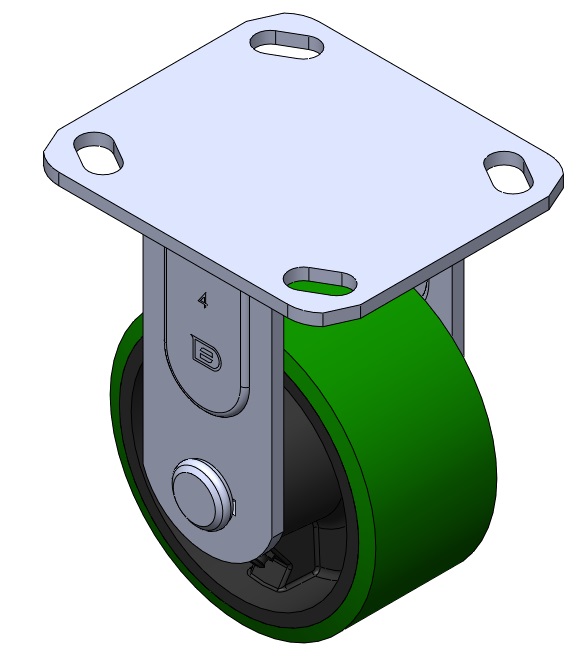

Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Cast Iron Wheel Center with High Quality Polyurethane tread Iron green, Bearing—Ball Bearing.
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

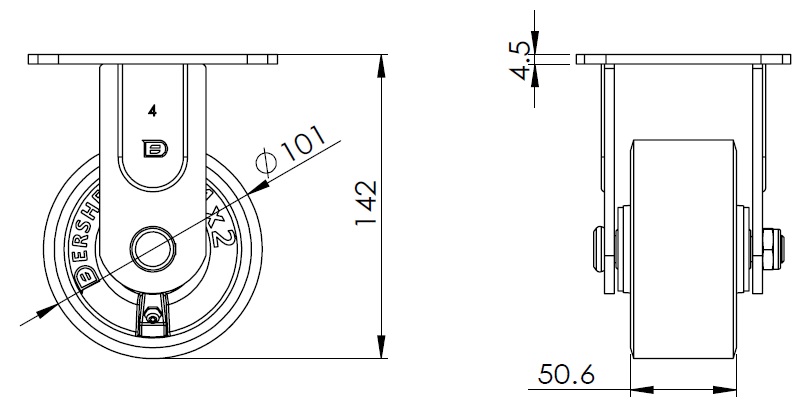

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 101mm　

　　Wheel Width 50.6mm　
　　Wheel Bearing Wheels With Ball Bearings

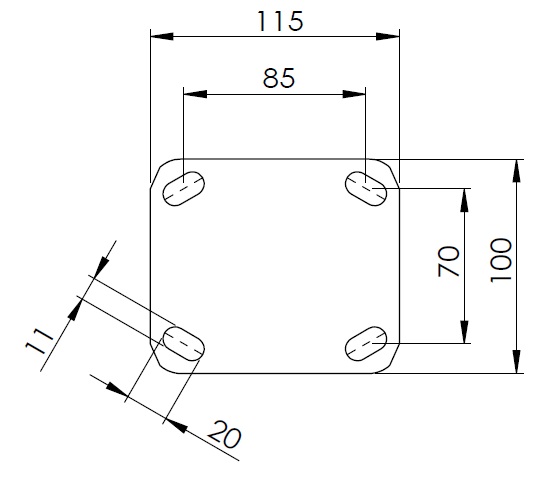

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 142mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 270kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 405kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.00kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1112 2" Wide General Purposes Caster Series
PU (green) Wheel Diameter × Wheel Width 101 x 50.6mm
TW-4111204002002
101 mm 270 Kgs 142 mm

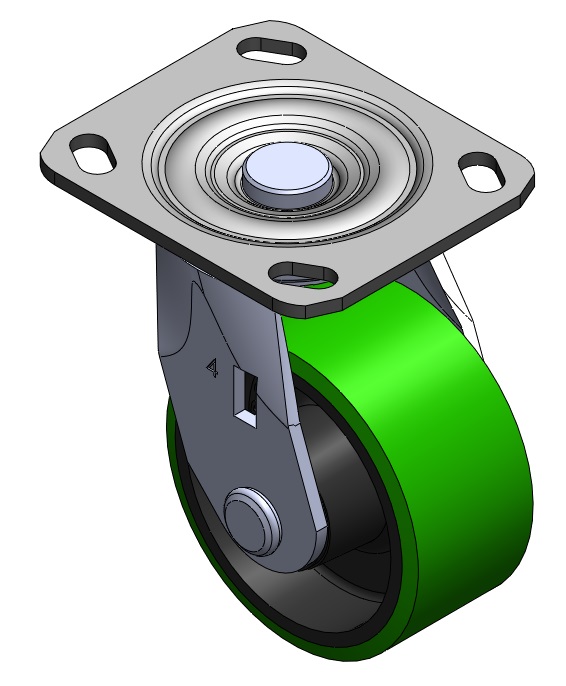

Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Cast Iron Wheel Center with High Quality Polyurethane tread Iron green, Bearing—Annual Ball Bearings.
