    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　W Resolute Wheel Diameter × Wheel Width 100 x 50mm
　　EAN
　　TW-4111204001016 　　　
　　　　　 　　　

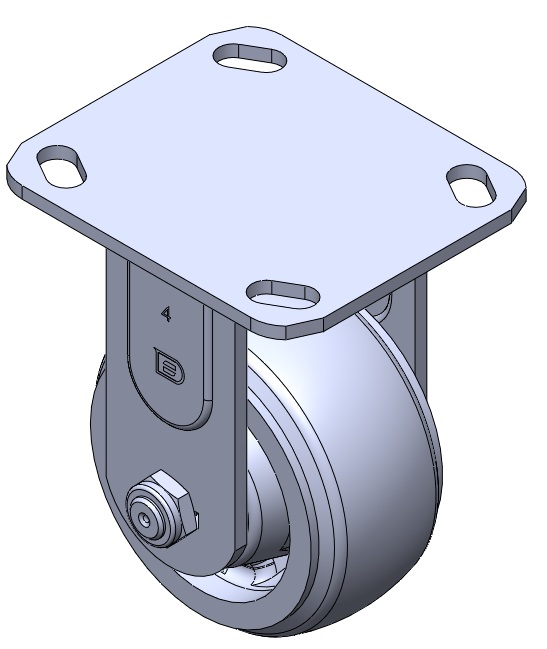

Rigid castor, Welded Caster Fork Surface Zine-Plated, Mounting Type - Top Plate Reinforced impact-resistant High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) wheel tread Dark grey, Bearing - precision long bead.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

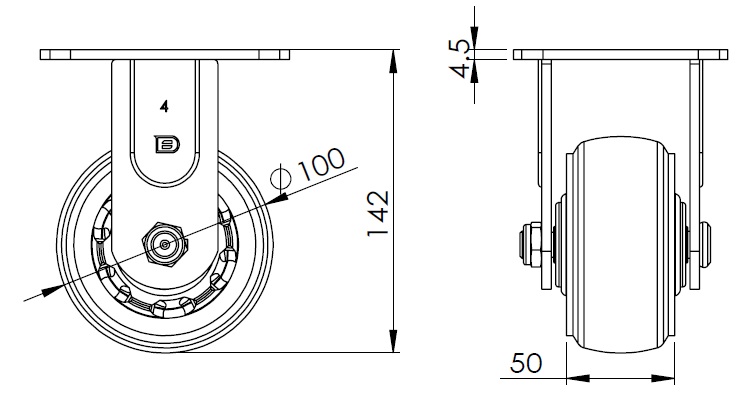

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheel With Annual Ball Bearing

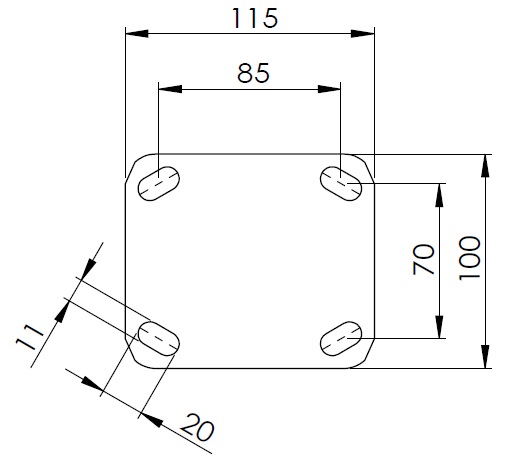

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 142mm　
　　Hardness Of Tread 80±5° Shore D　
　　Load Capacity (Dynamic) 180kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 270kgs　
　　Temperature -20°C to +150°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.30kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1112 2" Wide General Purposes Caster Series
W Resolute Wheel Diameter × Wheel Width 100 x 50mm
TW-4111204002016
100 mm 180 Kgs 142 mm

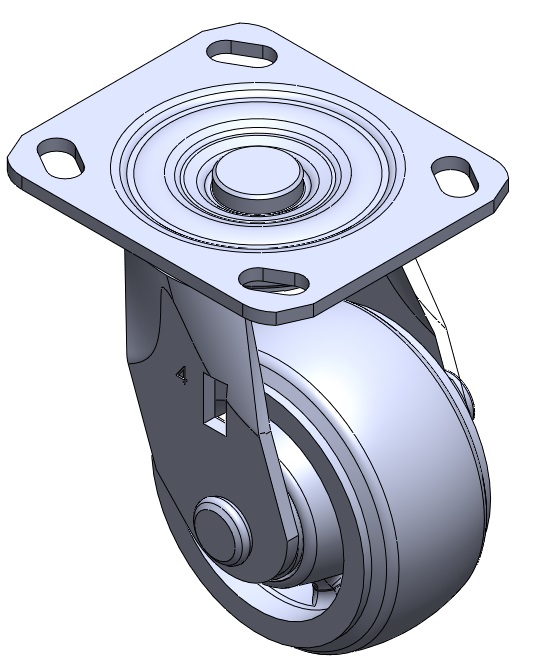

Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Reinforced, impact-resistant High-quality Impact Resistance Polypropylene Wheel Center with High-Quality Thermoplastic Rubber (TPR) tread Gray color, Bearing—precision long bead.
