    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PU (red) Wheel Diameter × Wheel Width 125 x 40mm
　　EAN
　　TW-4111205001009 　　　
　　　　　 　　　

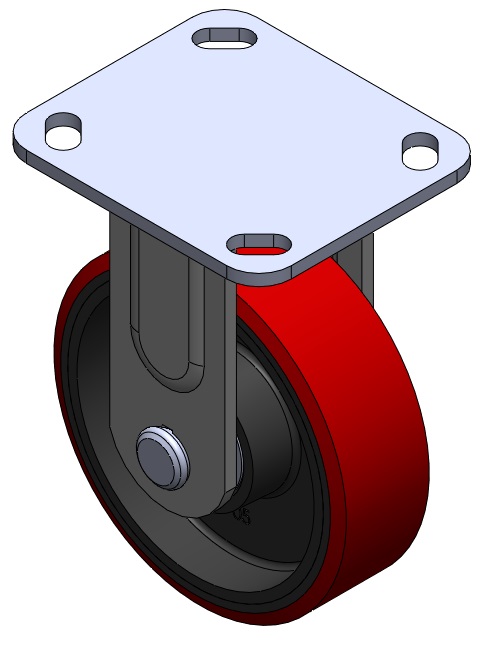

Rigid castor, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type Cast Iron Wheel Center, High Quality Polyurethane wheel tread Red, Bearing - Ball Bearing.
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

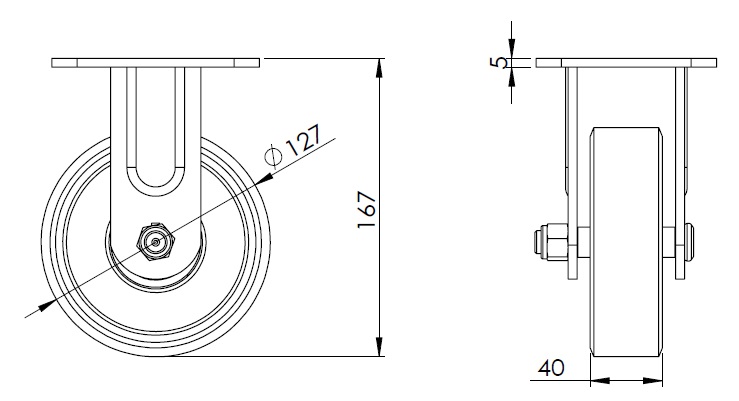

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

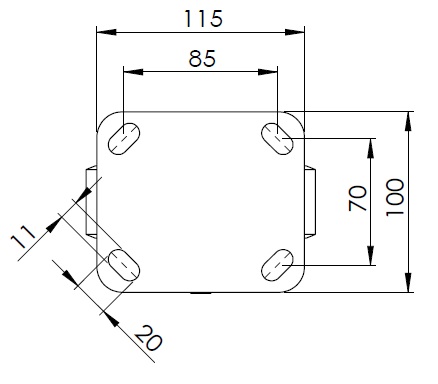

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 166mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 360kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 540kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.30kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1112 2" Wide General Purposes Caster Series
PU (red) Wheel Diameter × Wheel Width 125 x 40mm
TW-4111205002009
125 mm 360 Kgs 167 mm

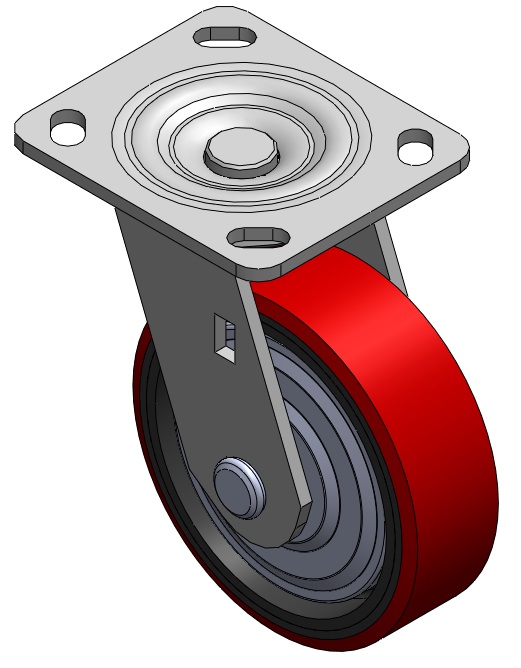

Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate (with iron cover) Cast Iron Wheel Center with High Quality Polyurethane tread Red Cast Iron finish, Ball Bearing.
1112 2" Wide General Purposes Caster Series
PU (red) Wheel Diameter × Wheel Width 125 x 40mm
TW-4111205002010
125 mm 360 Kgs 167 mm

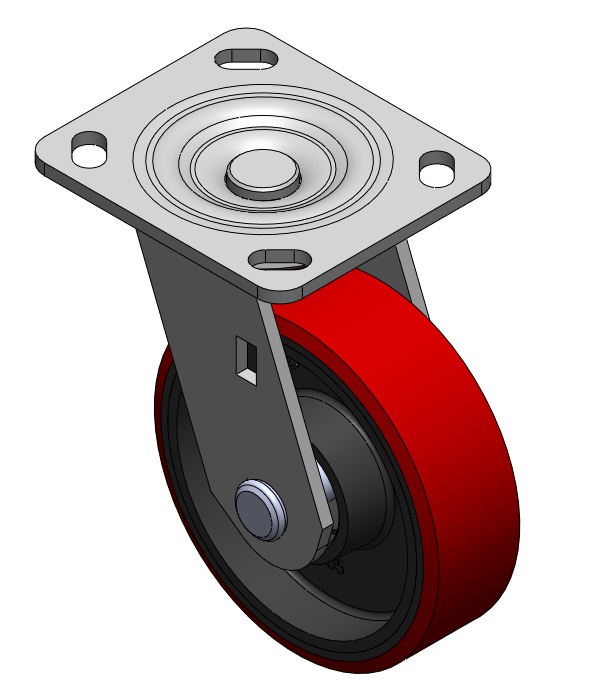

Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Cast Iron Wheel Center with High Quality Polyurethane tread Red Cast Iron finish, Ball Bearing.
1112 2" Wide General Purposes Caster Series
PU (red) Wheel Diameter × Wheel Width 125 x 40mm
TW-4111205004006
125 mm 360 Kgs 165 mm

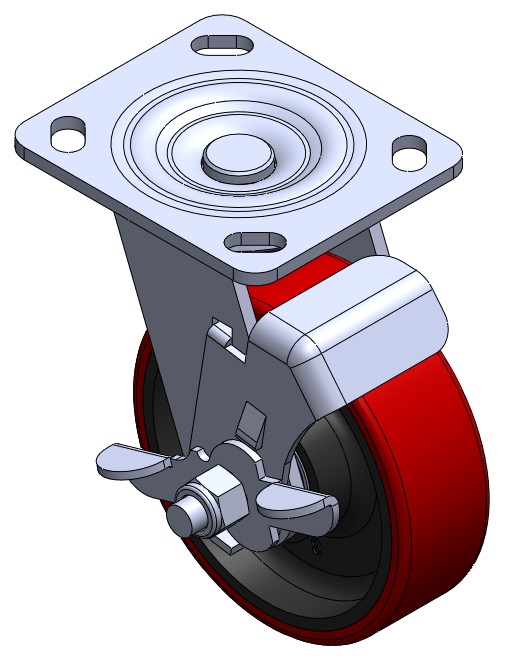

Casters with Side Brakes and With locking system. Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Cast Iron core with High Quality Polyurethane Wheel Tread Red color, Ball Bearings.
1112 2" Wide General Purposes Caster Series
PU (red) Wheel Diameter × Wheel Width 125 x 40mm
TW-4111205004021
125 mm 360 Kgs 166 mm

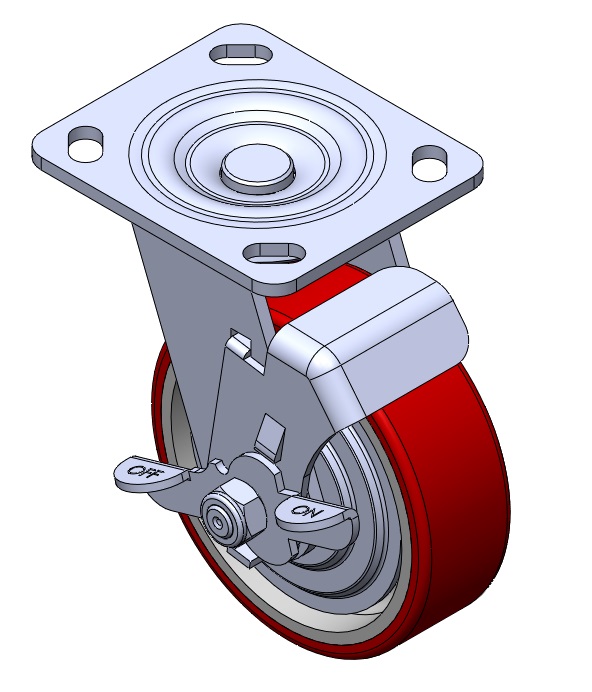

Casters with Side Brakes and With locking system. Welded Caster Fork. Zine-Plated, Mounting Type - Top Plate (with iron cover). Cast Iron core, High Quality Polyurethane Wheel Tread. Red color. Bearings: Ball Bearings.
1112 2" Wide General Purposes Caster Series
PU (red) Wheel Diameter × Wheel Width 125 x 40mm
TW-4111205004049
125 mm 360 Kgs 167 mm

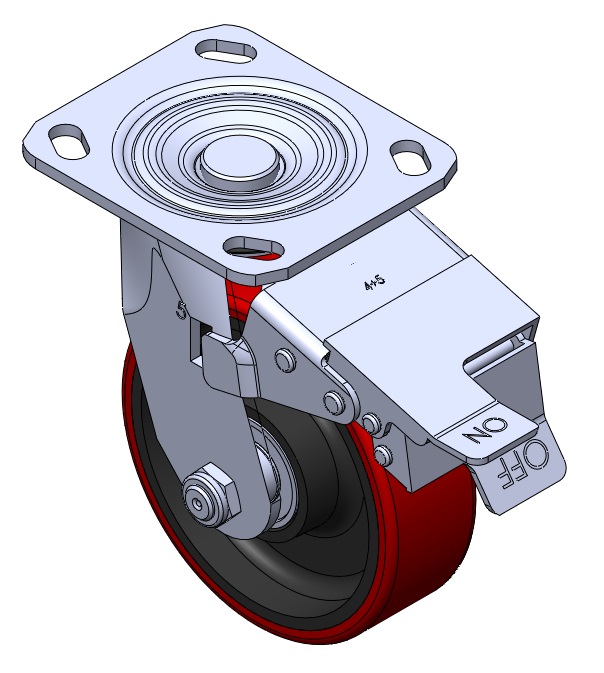

Casters with front brake and With locking system. Welded Caster Fork. Zine-Plated. Mounting Type - Top Plate. Cast Iron core with High Quality Polyurethane Wheel Tread. Red color. Bearings: Ball Bearings.
