    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　Rubber (black) Wheel Diameter × Wheel Width 125 x 50.6mm
　　EAN
　　TW-4111205001024 　　　
　　　　　 　　　

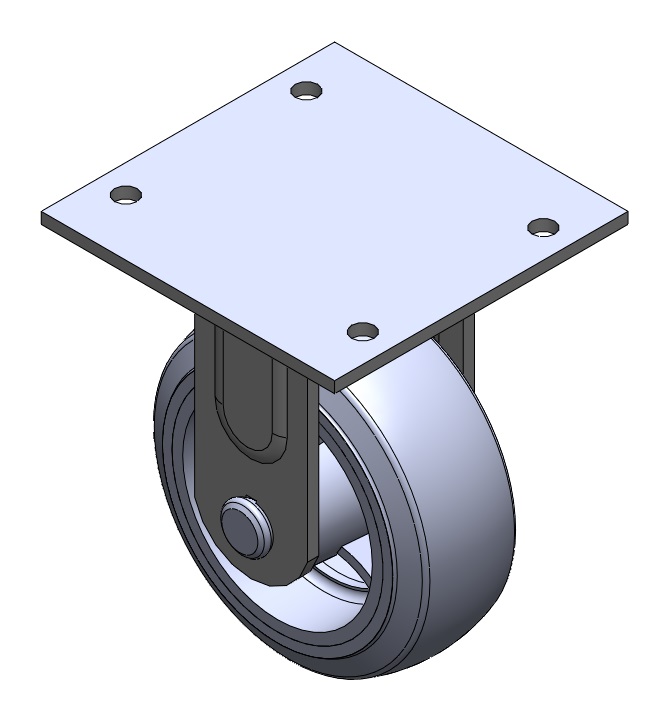

Rigid castor, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type Cast Iron Wheel Center, High-Quality Resilient Rubber wheel tread Black, Bearing - Annual Ball Bearing.
　　Wheel Tread: high quality elastic rubber
　　Wheel Center: iron core/cast iron core

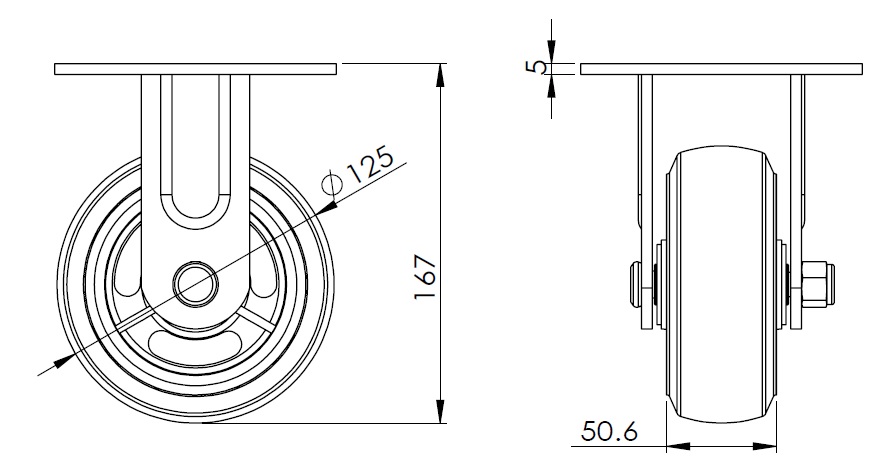

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 50.6mm　
　　Wheel Bearing Wheel With Annual Ball Bearing

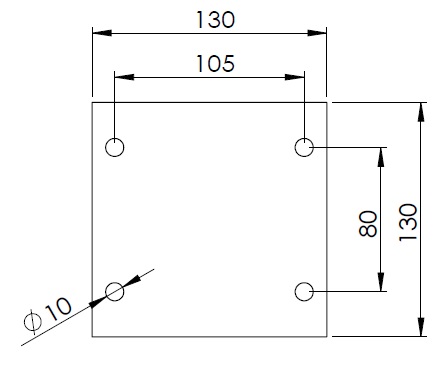

　　Plate Size 130 x 130mm　
　　Bolt Hole Spacing 105 x 80mm　
　　Plate Hole 10mm　
　　Overall Height 165mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.50kgs　
　　Standard ISO22883
　　
　　
