    Product Data Sheet

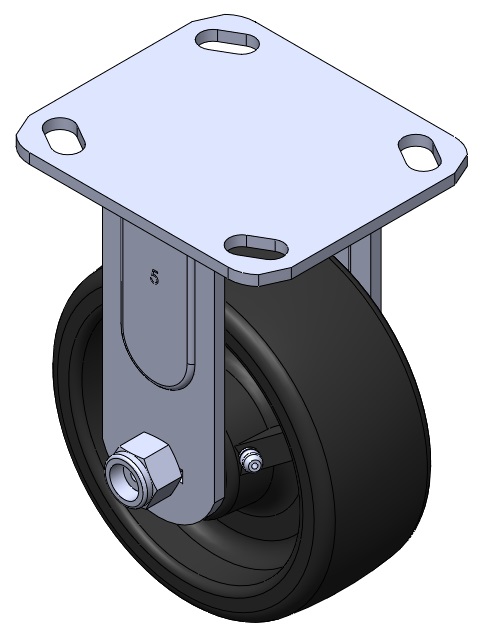

1112 2" Wide General Purposes Caster Series
　　PP (black) Wheel Diameter × Wheel Width 125 x 49mm
　　EAN
　　TW-4111205001048 　　　
　　　　　 　　　
Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate - no logo Polypropylene Wheel Center and Wheel Tread (with grease nipple) Black, Bearing - Annual Ball Bearing.
　　Wheel tread: PP polypropylene
　　Wheel Center: PP polypropylene

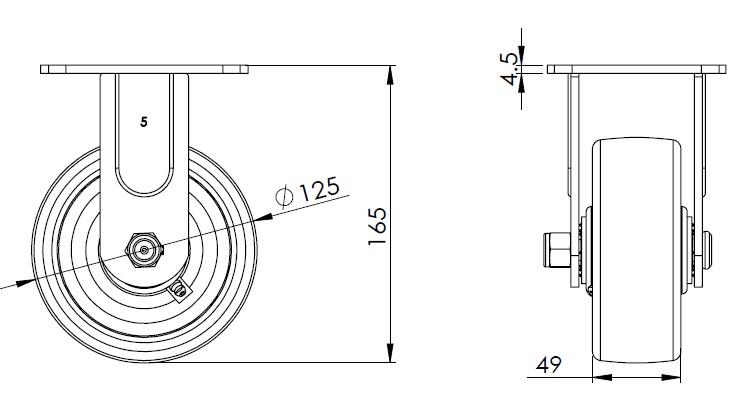

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 49mm　
　　Wheel Bearing Wheel With Annual Ball Bearing

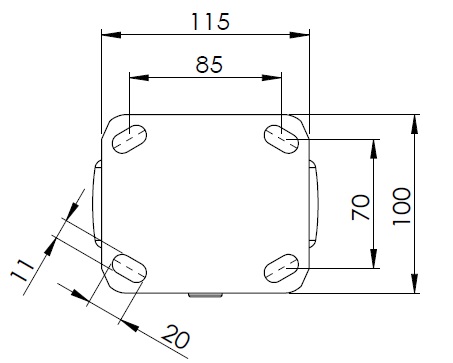

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 165mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 150kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.75kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

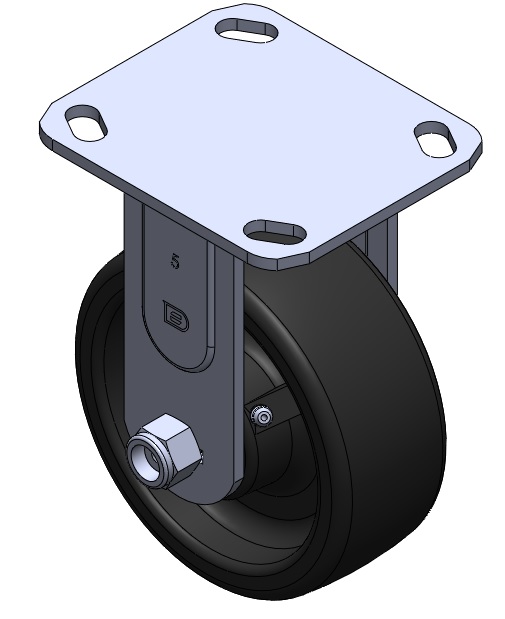

1112 2" Wide General Purposes Caster Series
