Wheel Center: PP polypropylene

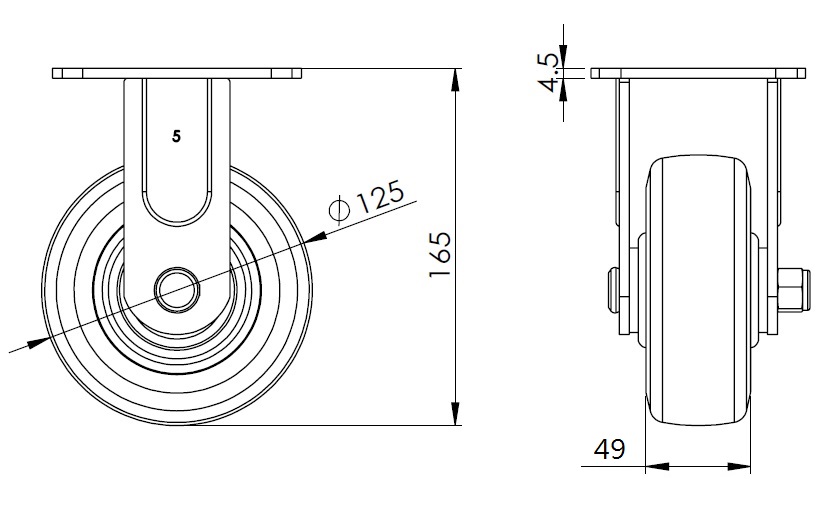

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
49mm
Wheel Bearing
Wheel With Annual Ball Bearing
Plate Size
115 x 100mm
Bolt Hole Spacing
85 x 70mm
Plate Hole
20 x 11mm
Offset
54mm
Swivel Interference
260mm
Overall Height
165mm
Swivel Radius
60mm
Hardness Of Tread
65±5° Shore D
Load Capacity (Dynamic)
100kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ○ ○
Floor Surface Preservation ● ● ● ○ ○
Load Capacity (Static)
150kgs
Temperature
-10°C to +60°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
1.75kgs
Standard
ISO22883
