Product Data Sheet |
![]() |
![]() |
![]() |
||
1112 2" Wide General Purposes Caster Series |
![]() |
![]() |
||||
Resolute (gray) Wheel Diameter × Wheel Width 125 x 50mm |
![]() |
![]() |
||||
EAN |
![]() |
|||||
TW-4111205001053
|
![]() |
|||||
![]() |
![]() |
|||||

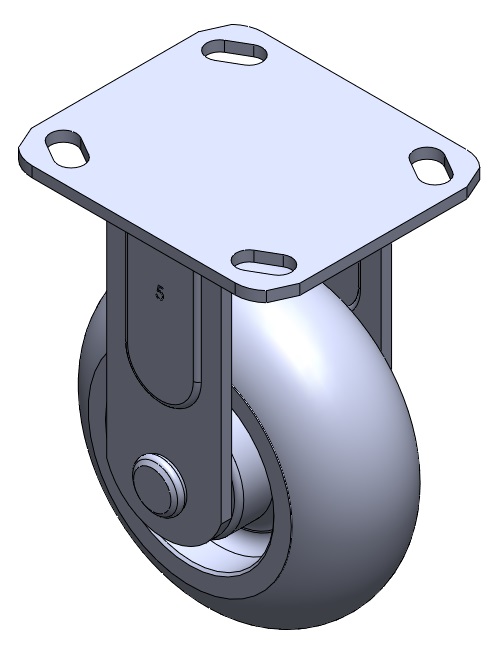

Rigid Caster with Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate High-Quality Impact-Resistant Polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Gray, Bearing—Annual Ball Bearing. |
![]() |
|||||
![]() |
![]() |
|||||
Wheel tread: Thermoplastic rubber elastomer (TPR) Wheel Center: Made of high-quality impact-resistant polypropylene Drawings are for reference only and may differ from the product |
![]() |
|||||
![]() |
![]() |
|||||
![]() Metric Imperial
Wheel Diameter
125mm
Wheel Width
50mm
|
![]() |
![]() |
||||
Wheel Bearing
Wheel With Annual Ball Bearing

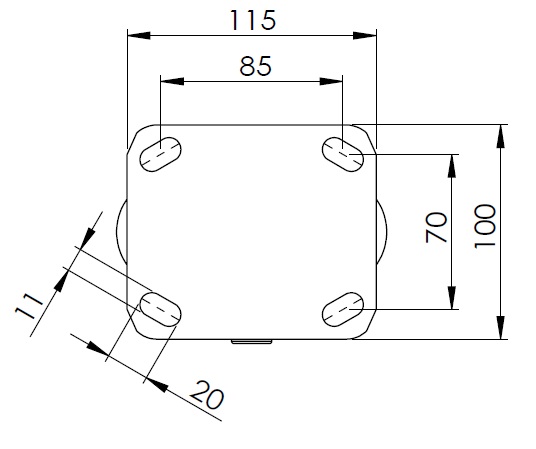

Plate Size
115 x 100mm
Bolt Hole Spacing
85 x 70mm
Plate Hole
20 x 11mm

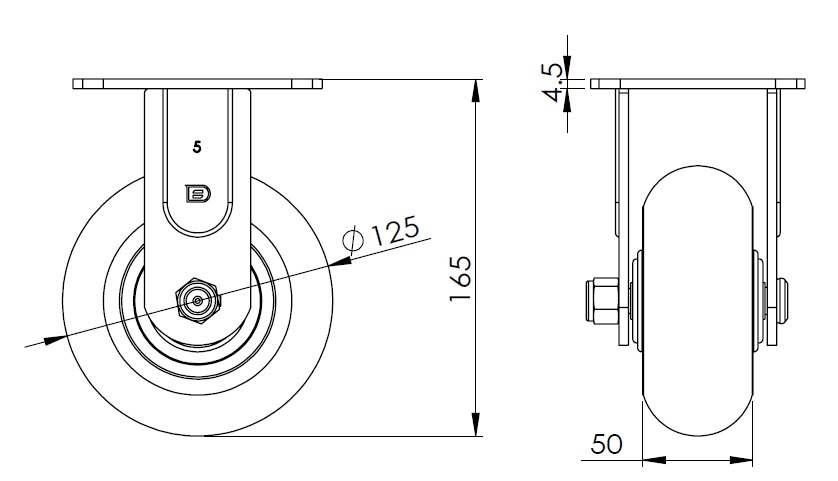

Overall Height
165mm
Hardness Of Tread
72±5° Shore A
Load Capacity (Dynamic)
170kgs
|
Rolling Resistance ● ● ● ● ● Operating Noise ● ● ● ● ● Floor Surface Preservation ● ● ● ● ● |
|||||
Load Capacity (Static)
255kgs
Temperature
-20°C to +60°C
Fork Type
Rigid Caster
|
![]() |
|||||
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
1.75kgs
Standard
ISO22883
|
![]() |
![]() |
||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
© Copyright 2025 DershengInternational www.dersheng.com |
