    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PPR (orange-yellow-black) Wheel Diameter × Wheel Width 125 x 50mm
　　EAN
　　TW-4111205001066 　　　
　　　　　 　　　

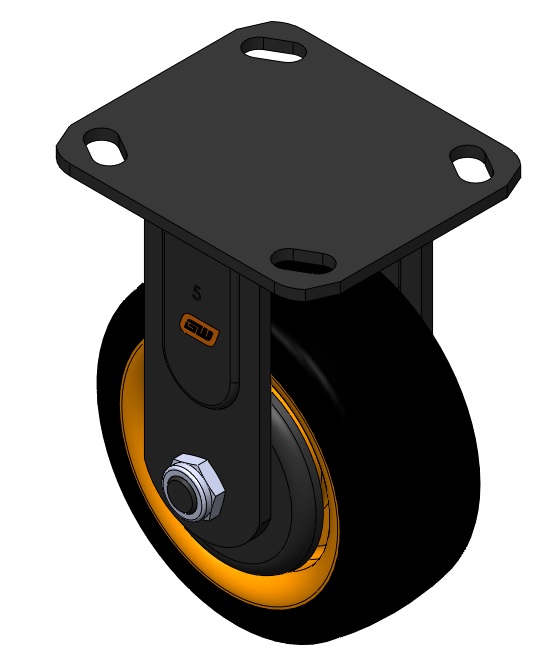

Rigid Caster with Welded Caster Fork Electrodeposited surface, Mounting Type - Top Plate High-Quality Impact-Resistant Polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Orange-black, Bearing—Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

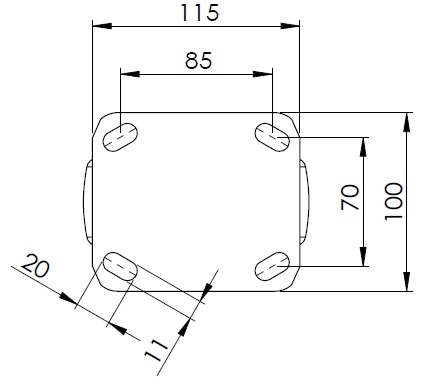

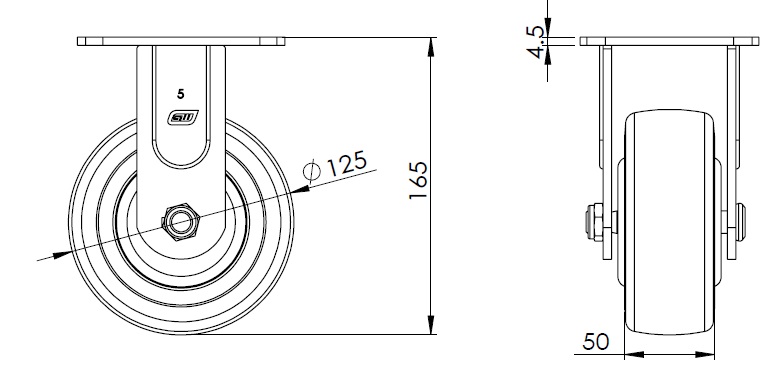

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 54mm　
　　Swivel Interference 260mm　
　　Overall Height 165mm　
　　Swivel Radius 60mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 180kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 270kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.35kgs　
　　Standard ISO22883
　　
　　
