Wheel Center: Compressed synthetic resin impregnated with fabric

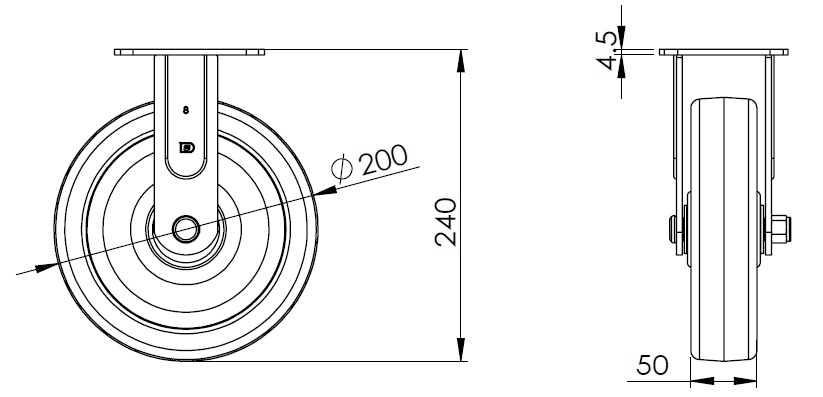

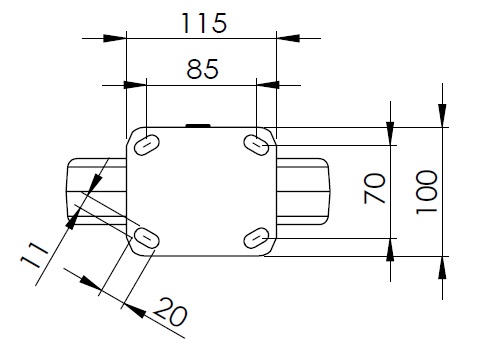

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
200mm
Wheel Width
50mm
Wheel Bearing
Wheel With Annual Ball Bearing
Plate Size
115 x 100mm
Bolt Hole Spacing
85 x 70mm
Plate Hole
20 x 11mm
Overall Height
240mm
Hardness Of Tread
93±5° Shore A
Load Capacity (Dynamic)
450kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
675kgs
Temperature
-20°C to +70°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
3.0kgs
Standard
ISO22883
