    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　W Resolute(gray) Wheel Diameter × Wheel Width 200 x 50mm
　　EAN
　　TW-4111208001023 　　　
　　　　　 　　　

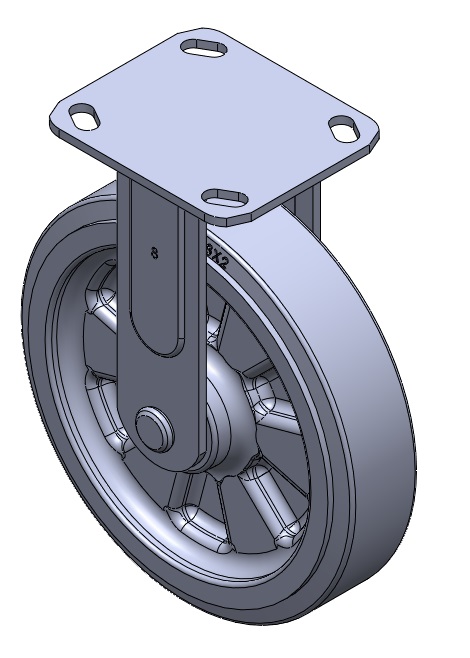

Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Reinforced, impact-resistant High-quality Impact Resistance Polypropylene Wheel Center with High-Quality Thermoplastic Rubber (TPR) tread Gray color, Bearing—precision long bead.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

  　　Drawings are for reference only and may differ from the product




      Metric Imperial

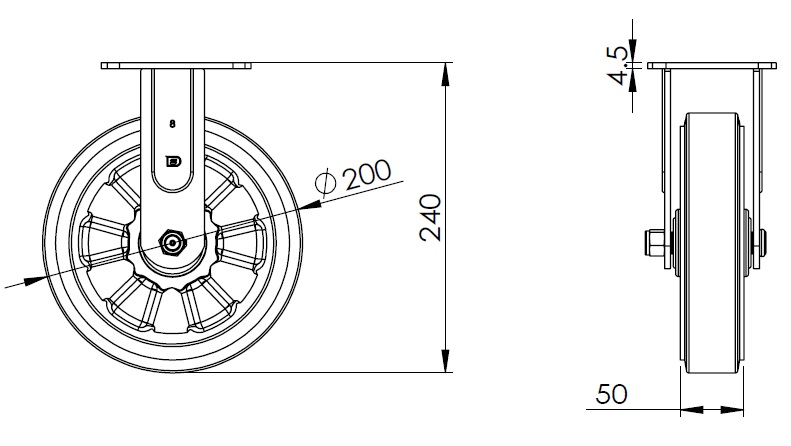

　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheel With Annual Ball Bearing

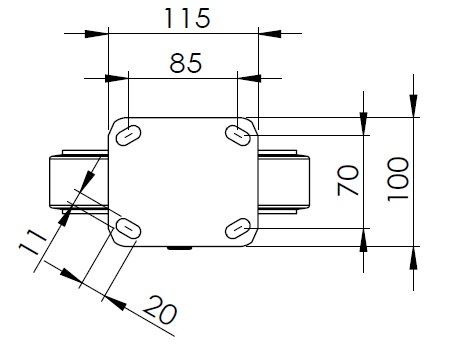

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 240mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 306kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 460kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.0kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1112 2" Wide General Purposes Caster Series
W Resolute(gray) Wheel Diameter × Wheel Width 200 x 50mm
TW-4111208001032
200 mm 306 Kgs 240 mm

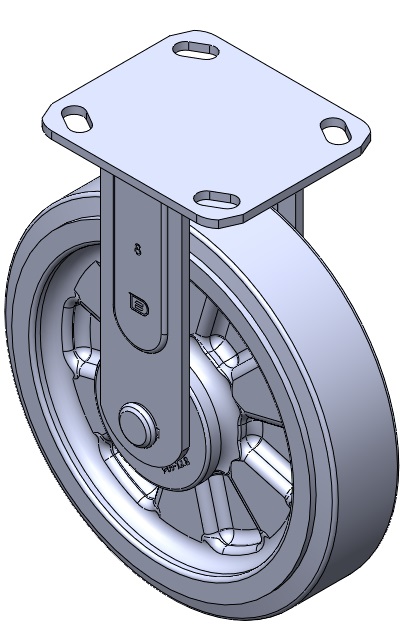

Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate (with iron cover) Reinforced, impact-resistant High-quality Impact Resistance Polypropylene Wheel Center with High-Quality Thermoplastic Rubber (TPR) tread Gray, Bearing—Annual Ball Bearing.
1112 2" Wide General Purposes Caster Series
W Resolute(gray) Wheel Diameter × Wheel Width 200 x 50mm
TW-4111208002024
200 mm 306 Kgs 240 mm

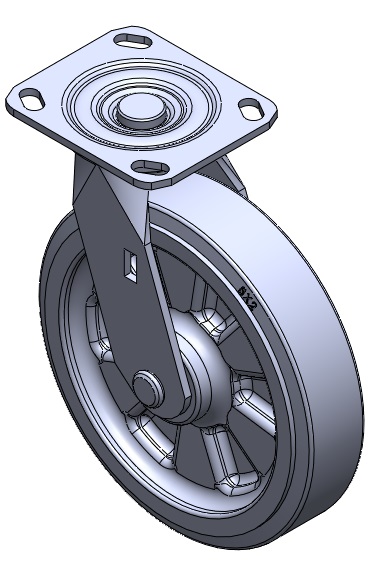

Swivel Caster with Welded Caster Fork E-Coat Finish, Mounting Type - Top Plate Reinforced, impact-resistant High-quality Impact Resistance Polypropylene Wheel Center with High-Quality Thermoplastic Rubber (TPR) tread Gray color, Bearing—precision long bead
1112 2" Wide General Purposes Caster Series
W Resolute(gray) Wheel Diameter × Wheel Width 200 x 50mm
TW-4111208002032
200 mm 306 Kgs 240 mm

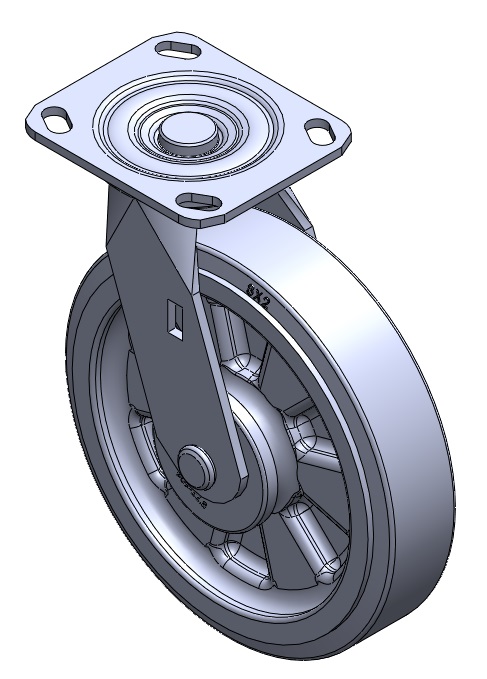

Swivel Caster with Welded Caster Fork Electroplated finish, Mounting Type - Top Plate (with iron cover) Reinforced, impact-resistant polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Gray, Bearing—Annual Ball Bearing.
