Product Data Sheet |
![]() |
![]() |
![]() |
||
1112 2" Wide General Purposes Caster Series |
![]() |
![]() |
||||
WMRC (white) Wheel Diameter × Wheel Width 200 x 48mm |
![]() |
![]() |
||||
EAN |
![]() |
|||||
TW-4111208001033
|
![]() |
|||||
![]() |
![]() |
|||||

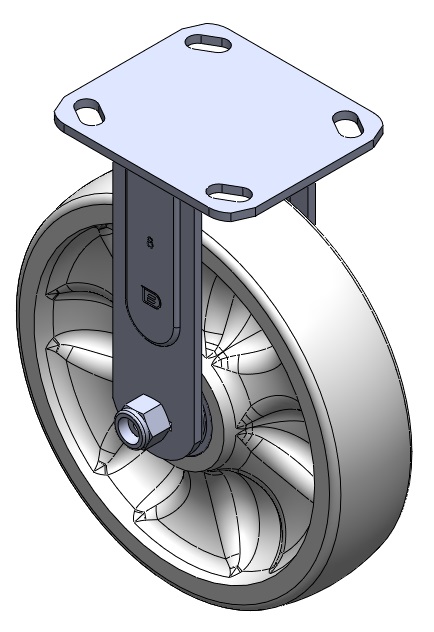

Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Reinforced Polypropylene and tread White, Ball Bearing. |
![]() |
|||||
![]() |
![]() |
|||||
Wheel tread: Thermoplastic Wheel Center: Thermoplastic Drawings are for reference only and may differ from the product |
![]() |
|||||
![]() |
![]() |
|||||
![]() Metric Imperial

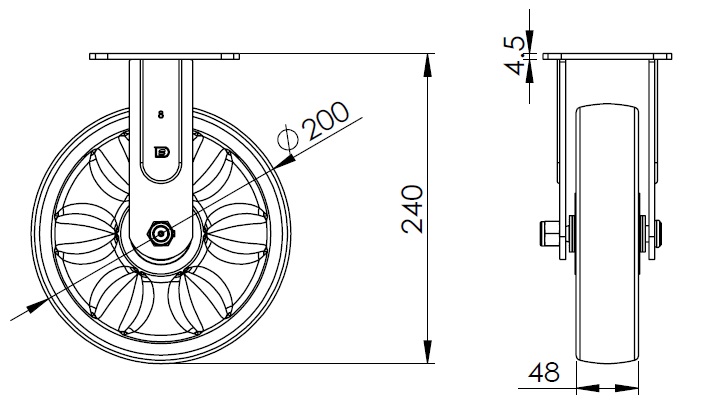

Wheel Diameter
200mm
Wheel Width
48mm
|
![]() |
![]() |
||||
Wheel Bearing
Wheels With Ball Bearings

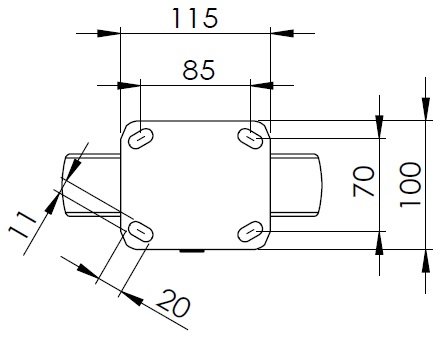

Plate Size
115 x 100mm
Bolt Hole Spacing
85 x 70mm
Plate Hole
20 x 11mm
Overall Height
240mm
Hardness Of Tread
75±5° Shore D
Load Capacity (Dynamic)
450kgs
|
Rolling Resistance ● ● ● ● ● Operating Noise ● ● ○ ○ ○ Floor Surface Preservation ● ● ○ ○ ○ |
|||||
Load Capacity (Static)
675kgs
Temperature
-20°C to +80°C
Fork Type
Rigid Caster
|
![]() |
|||||
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
2.0kgs
Standard
ISO22883
|
![]() |
![]() |
||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
