    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　Phenolic (black) Wheel Diameter × Wheel Width 101 x 50.8mm
　　EAN
　　TW-4111204002003 　　　
　　　　　 　　　
Swivel Caster, Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Phenolic Wheel Black, Bearing—Annual Ball Bearing.
　　Tread: Compressed synthetic resin impregnated with fabric
　　Wheel Center: Compressed synthetic resin impregnated with fabric

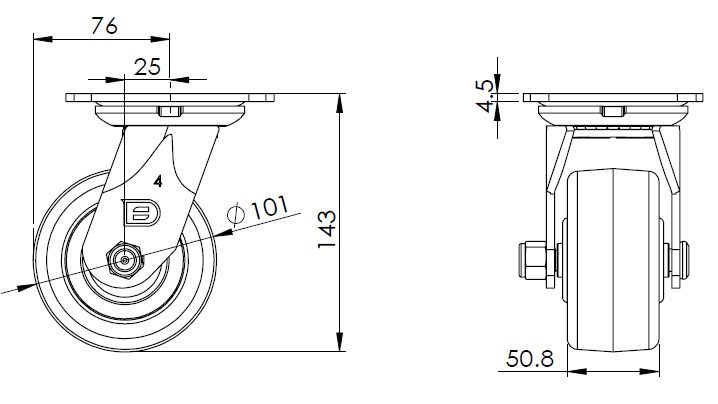

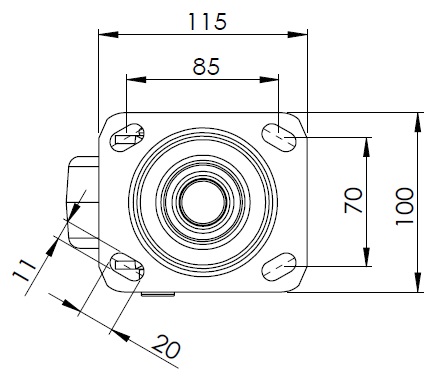

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 101mm　

　　Wheel Width 50.8mm　
　　Wheel Bearing Wheel With Annual Ball Bearing
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 25mm　
　　Swivel Interference 152mm　
　　Overall Height 142mm　
　　Swivel Radius 76mm　
　　Hardness Of Tread 80±5° Shore D　
　　Load Capacity (Dynamic) 360kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 540kgs　
　　Temperature -20°C to +150°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.70kgs　
　　Standard ISO22883
　　
　　
