    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PPR Wheel Diameter × Wheel Width 101 x 55.6mm
　　EAN
　　TW-4111204002020 　　　
　　　　　 　　　
Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate (with grease nipple) High-quality Impact Resistance Polypropylene Wheel Center with High-Quality Thermoplastic Rubber (TPR) tread Dark gray, Bearing—Annual Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

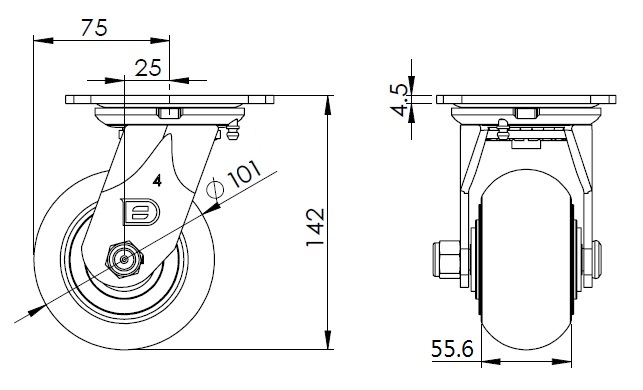

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 101mm　

　　Wheel Width 55.6mm　
　　Wheel Bearing Wheel With Annual Ball Bearing

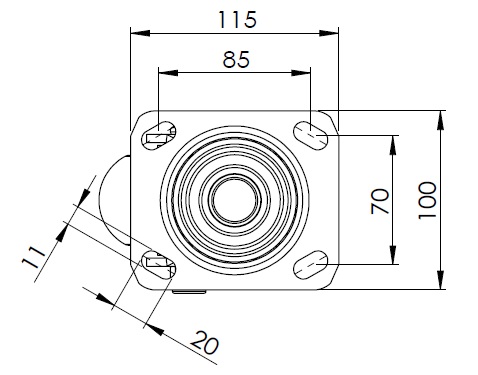

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 25mm　
　　Swivel Interference 150mm　
　　Overall Height 142mm　
　　Swivel Radius 75mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 120kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 180kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.00kgs　
　　Standard ISO22883
　　
　　
