    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PU (black) Wheel Diameter × Wheel Width 125 x 40mm
　　EAN
　　TW-4111205002033 　　　
　　　　　 　　　
Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate (no logo) (with iron cover) Cast Iron Wheel Center, High Quality Polyurethane tread Black, Bearing—Ball Bearing.
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

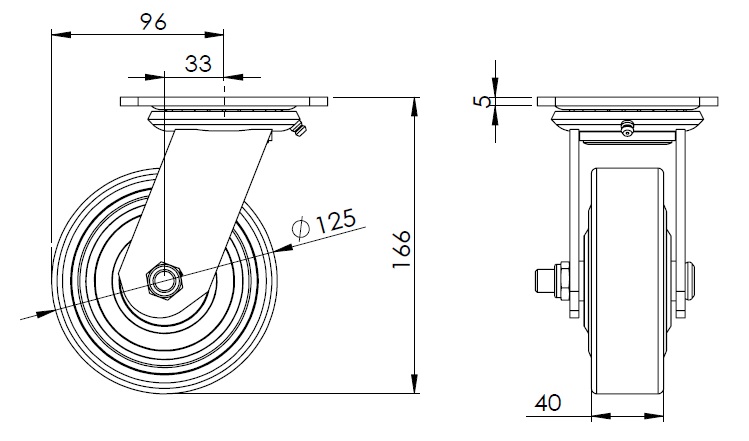

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

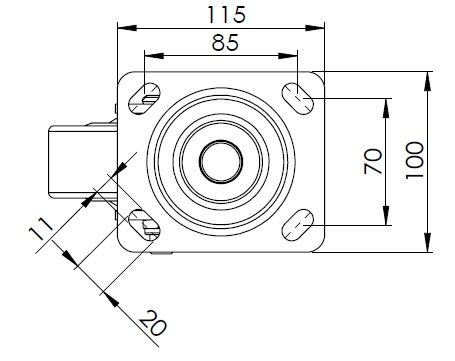

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 33mm　
　　Swivel Interference 192mm　
　　Overall Height 166mm　
　　Swivel Radius 96mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 360kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 540kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.60kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

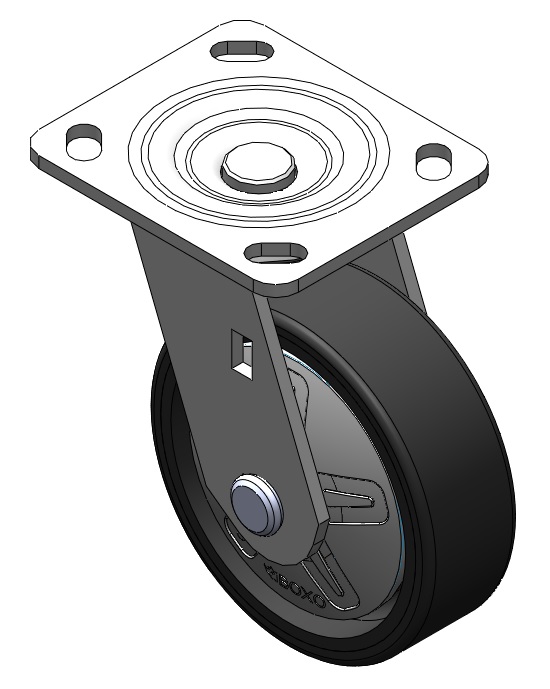

1112 2" Wide General Purposes Caster Series
PU (black) Wheel Diameter × Wheel Width 125 x 40mm
TW-4111205002058
125 mm 360 Kgs 166 mm
Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate (chrome-plated cover included) Cast Iron Wheel Center with High Quality Polyurethane tread Black, Bearing—Ball Bearing.

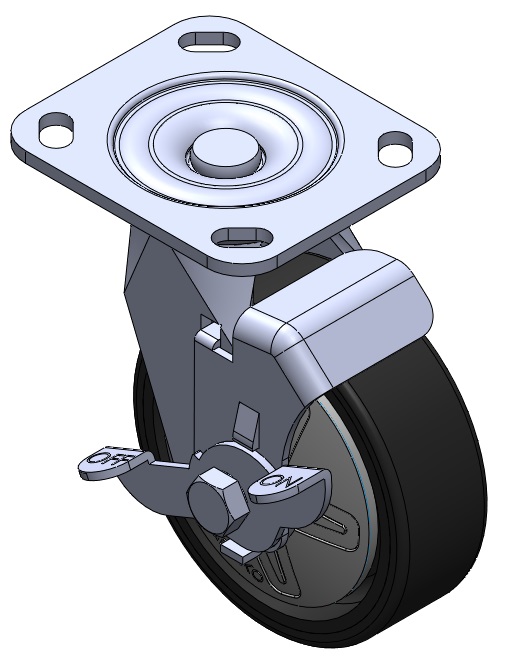

1112 2" Wide General Purposes Caster Series
