    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　EQPU (blue) Wheel Diameter × Wheel Width 125 x 40 mm
　　EAN
　　TW-4111205001067 　　　
　　　　　 　　　

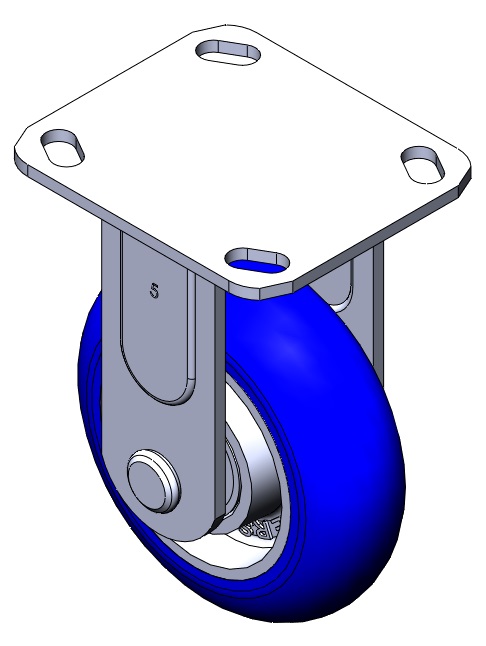

Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread (extra-thick rubber) Blue color, Bearing—Ball Bearing.
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

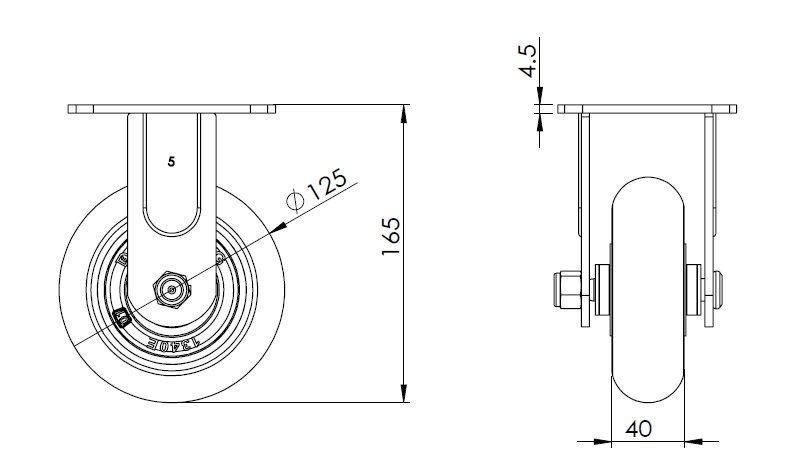

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

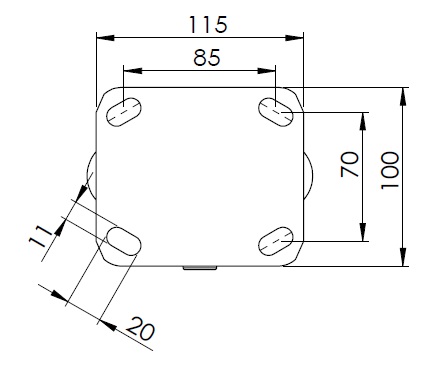

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 54mm　
　　Swivel Interference 260mm　
　　Overall Height 165mm　
　　Swivel Radius 60mm　
　　Hardness Of Tread 87±5° Shore A　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.30kgs　
　　Standard ISO22883
　　
　　
