    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　Rubber (black) Wheel Diameter × Wheel Width 150 x 50mm
　　EAN
　　TW-4111206002007 　　　
　　　　　 　　　
Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Cast Iron Wheel Center with High-Quality Resilient Rubber tread Black, Bearing—Annual Ball Bearing.
　　Wheel Tread: high-quality elastic rubber
　　Wheel Center: iron core/cast iron core

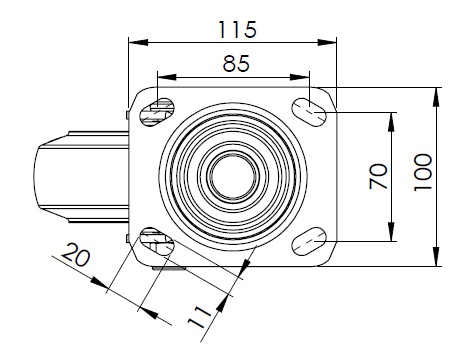

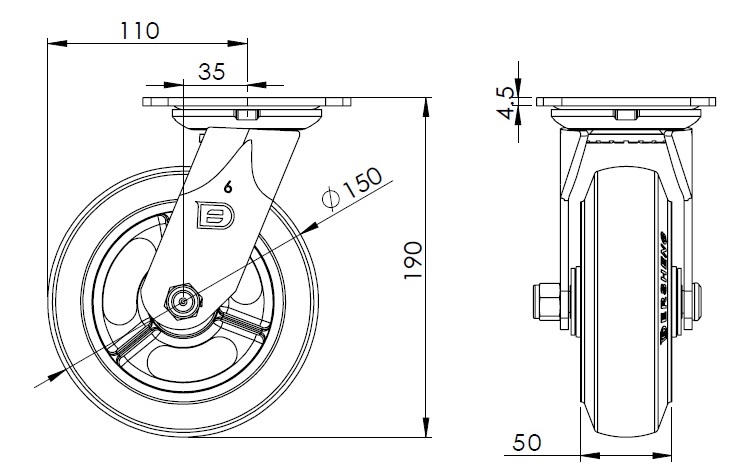

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheel With Annual Ball Bearing
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 35mm　
　　Swivel Interference 220mm　
　　Overall Height 190mm　
　　Swivel Radius 110mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.80kgs　
　　Standard ISO22883
　　
　　
