    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　W Resolute Wheel Diameter × Wheel Width 152 x 50mm
　　EAN
　　TW-4111206002032 　　　
　　　　　 　　　
Swivel Caster with Welded Caster Fork E-Coat Finish, Mounting Type - Top Plate Reinforced, impact-resistant High-quality Impact Resistance Polypropylene Wheel Center with High-Quality Thermoplastic Rubber (TPR) tread Gray color, Bearing—precision long bead
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

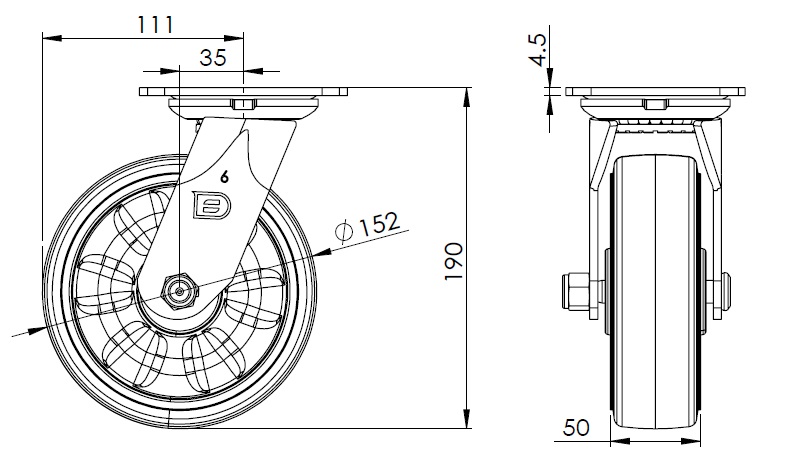

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 152mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheel With Annual Ball Bearing

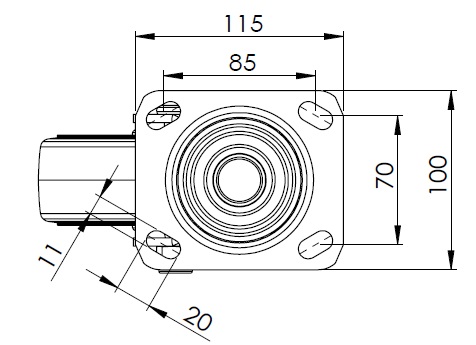

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 35mm　
　　Swivel Interference 222mm　
　　Overall Height 190mm　
　　Swivel Radius 111mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 272kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 408kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.0kgs　
　　Standard ISO22883
　　
　　
