Zine-Plated, Mounting Type - Threaded Stem
Cast Iron core, High-Quality Resilient Rubber Wheel Tread
Black, Bearing—Annual Ball Bearing
Wheel Center: iron core/cast iron core

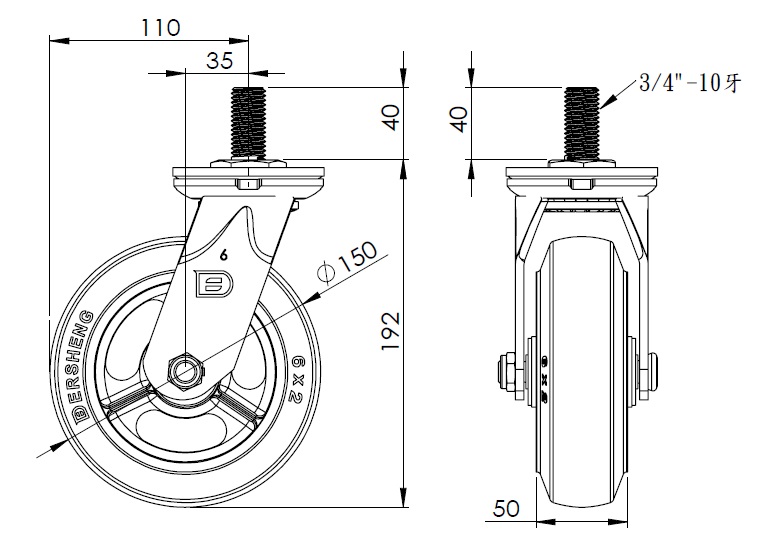

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
150mm
Wheel Width
50mm
Wheel Bearing
Wheel With Annual Ball Bearing

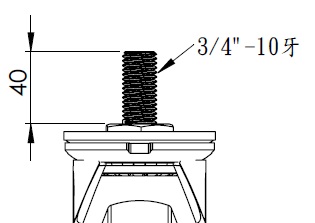

Threaded Stem
3/4＂-10牙
Threaded Length
40mm
Offset
35mm
Swivel Interference
220mm
Overall Height
192mm
Swivel Radius
110mm
Hardness Of Tread
80±5° Shore A
Load Capacity (Dynamic)
250kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
375kgs
Temperature
-20°C to +120°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
2.80kgs
Standard
ISO22883
