    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　Resolute Wheel Diameter × Wheel Width 151 x 50mm
　　EAN
　　TW-4111206002050 　　　
　　　　　 　　　
Swivel Caster with Welded Caster Fork E-Coat Finish, Mounting Type - Top Plate High-quality Impact Resistance Polypropylene core with High-Quality Thermoplastic Rubber (TPR) tread Gray, Bearing—Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

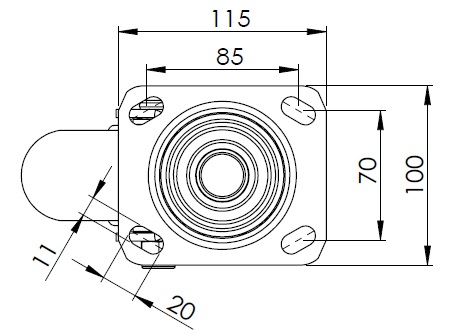

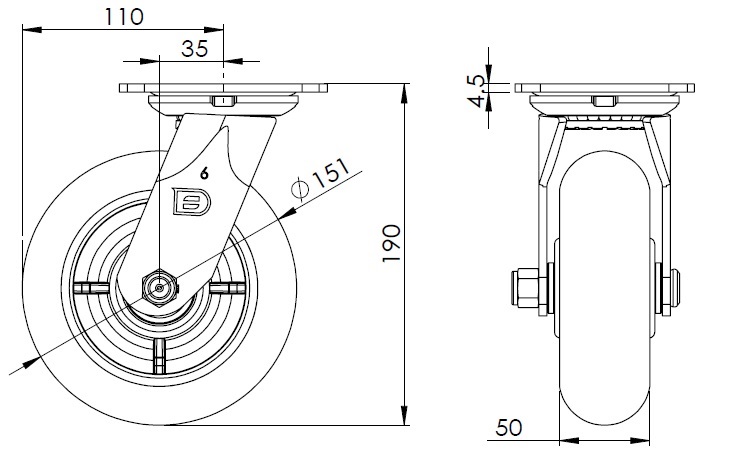

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 151mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 35mm　
　　Swivel Interference 220mm　
　　Overall Height 190mm　
　　Swivel Radius 110mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 204kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 306kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.0kgs　
　　Standard ISO22883
　　
　　
