    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　AQPU (brown) Wheel Diameter × Wheel Width 150 x 42mm
　　EAN
　　TW-4111206002052 　　　
　　　　　 　　　

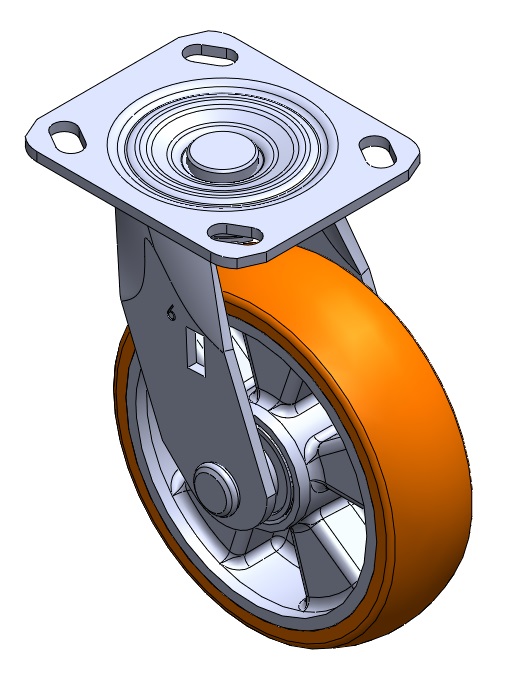

Swivel Caster with Welded Caster Fork Electroplated, Mounting Type - Top Plate Aluminum core with High Quality Polyurethane Wheel Tread Brown, Bearing—Ball Bearing.
　　Wheel tread: high quality polyurethane
　　Wheel Center: aluminum core

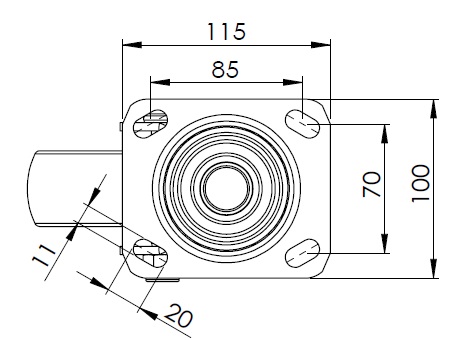

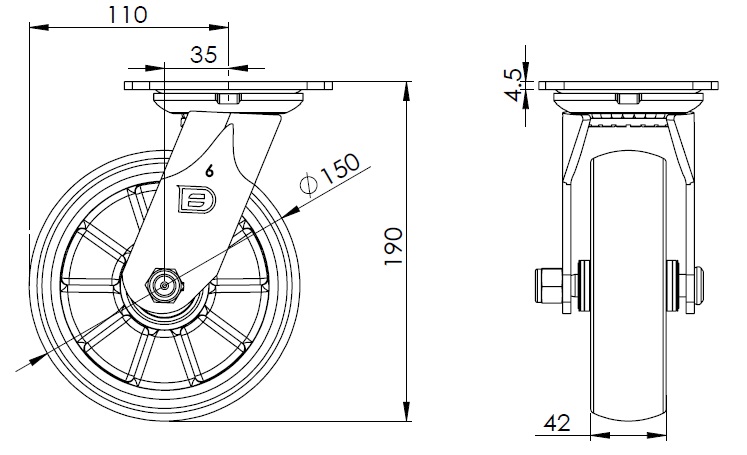

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 42mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 35mm　
　　Swivel Interference 220mm　
　　Overall Height 190mm　
　　Swivel Radius 110mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.0kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1112 2" Wide General Purposes Caster Series
AQPU (brown) Wheel Diameter × Wheel Width 150 x 42mm
TW-4111206001059
150 mm 450 Kgs 190 mm
Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Aluminum core with High Quality Polyurethane tread Brown, Bearing—Ball Bearing.
1112 2" Wide General Purposes Caster Series
AQPU (brown) Wheel Diameter × Wheel Width 150 x 42mm
TW-111206004A006
150 mm 450 Kgs 190 mm

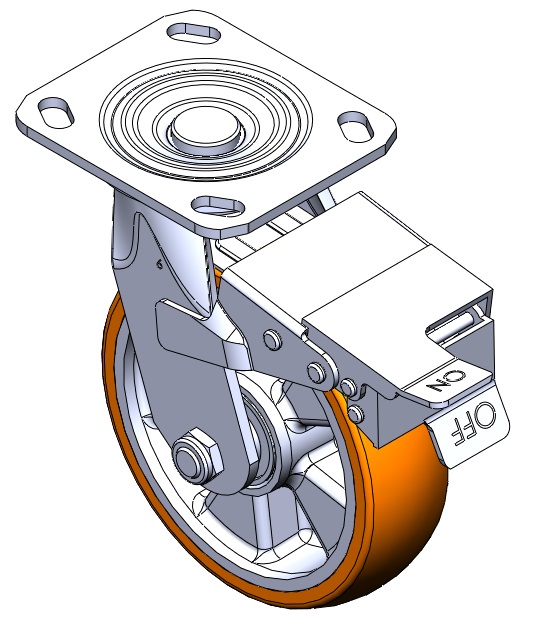

Casters with front brake and With locking system. Welded Caster Fork
