    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PU (red) Wheel Diameter × Wheel Width 125 x 45.5mm
　　EAN
　　TW-4111205004030 　　　
　　　　　 　　　
Casters with Side Brakes and With locking system. Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread Red color, Bearing—Annual Ball Bearings.
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

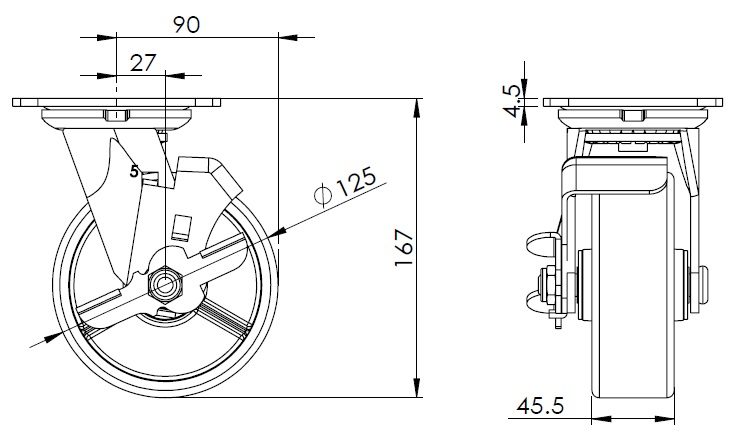

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 45.5mm　
　　Wheel Bearing Wheel With Annual Ball Bearing

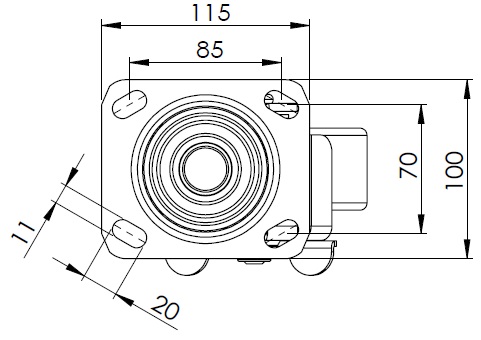

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 27mm　
　　Swivel Interference 180mm　
　　Overall Height 167mm　
　　Swivel Radius 90mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 360kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 540kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.70kgs　
　　Standard ISO22883
　　
　　
