    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　Phenolic (black) Wheel Diameter × Wheel Width 152 x 50.8mm
　　EAN
　　TW-4111206004002 　　　
　　　　　 　　　
Casters with Side Brakes and With locking system. Welded Caster Fork. Electroplated finish. Mounting Type - Top Plate. Fabric-impregnated compressed synthetic resin Wheel Center and Wheel Tread. Black. Bearings—Annual Ball Bearing.
　　Wheel surface: Bakelite wheel
　　Wheel Center: Bakelite wheel

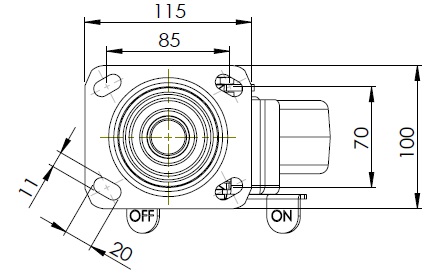

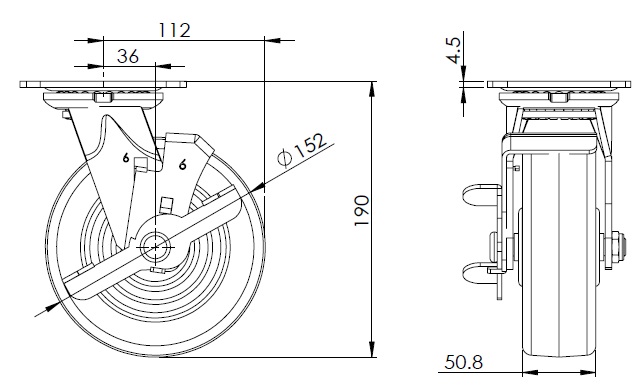

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 152mm　

　　Wheel Width 50.8mm　
　　Wheel Bearing Wheel With Annual Ball Bearing
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 36mm　
　　Swivel Interference 224mm　
　　Overall Height 190mm　
　　Swivel Radius 112mm　
　　Hardness Of Tread 80±5° Shore D　
　　Load Capacity (Dynamic) 420kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 630kgs　
　　Temperature -20°C to +150°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.40kgs　
　　Standard ISO22883
　　
　　
