    Product Data Sheet

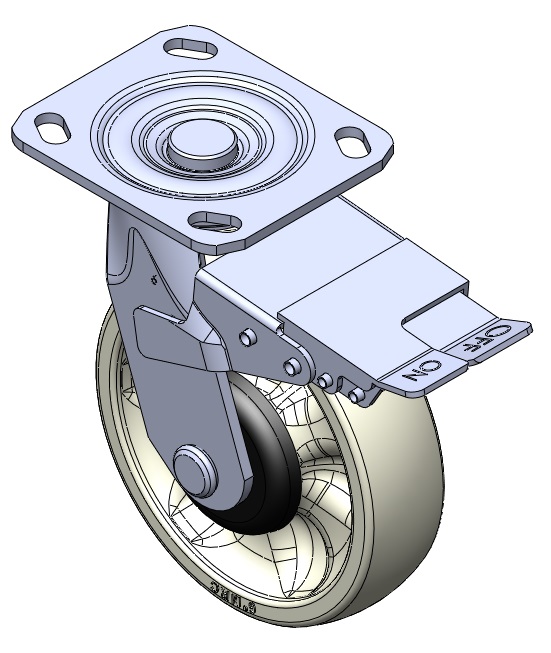

1112 2" Wide General Purposes Caster Series
　　WMRC Wheel Diameter × Wheel Width 150 x 40mm
　　EAN
　　TW-4111206004044 　　　
　　　　　 　　　
Casters with Side Brakes and With locking system. Welded Caster Fork. Zine-Plated. Mounting Type - Top Plate (with plastic cover). Reinforced thermoplastic Wheel Center and Wheel Tread. White. Bearings: Ball Bearings.
　　Wheel tread: Thermoplastic
　　Wheel Center: Thermoplastic

  　　Drawings are for reference only and may differ from the product




      Metric Imperial

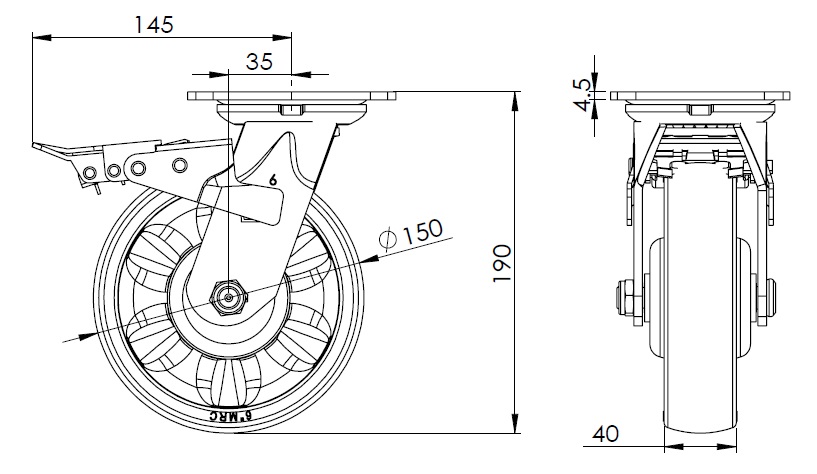

　　Wheel Diameter 150mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

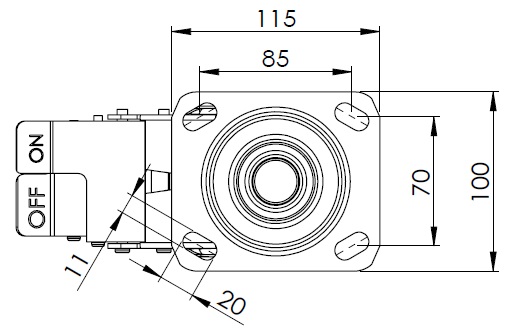

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 35mm　
　　Swivel Interference 290mm　
　　Overall Height 190mm　
　　Swivel Radius 145mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.80kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

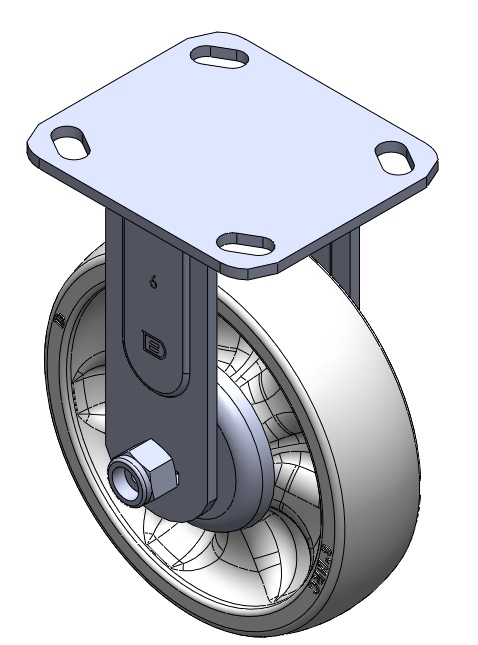

1112 2" Wide General Purposes Caster Series
