    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PPR (grey) Wheel Diameter × Wheel Width 152 x 50mm
　　EAN
　　TW-4111206004052 　　　
　　　　　 　　　

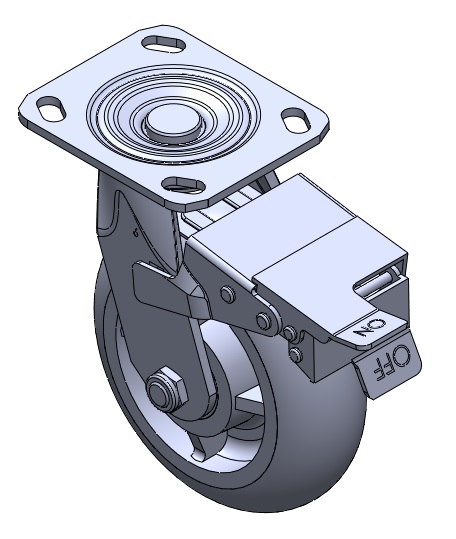

Casters with a front brake and With locking system. Welded Caster Fork. Zine-Plated. Mounting Type - Top Plate. High-Quality Impact-Resistant Polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread. Dark gray. Bearings: Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

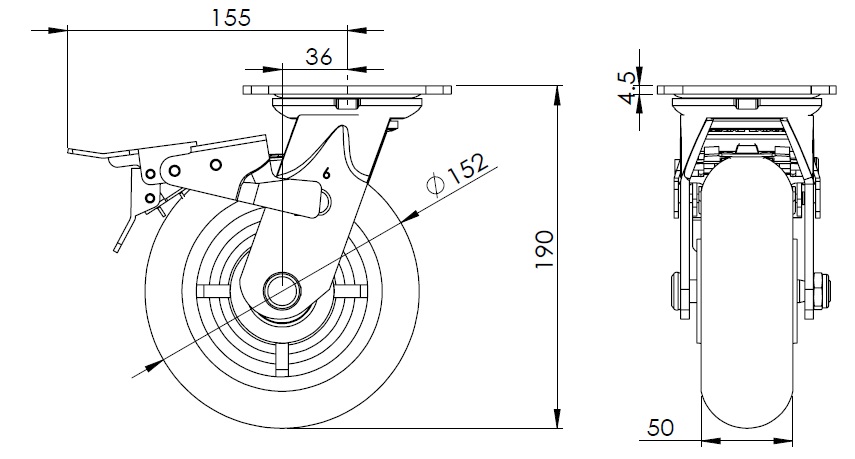

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 152mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

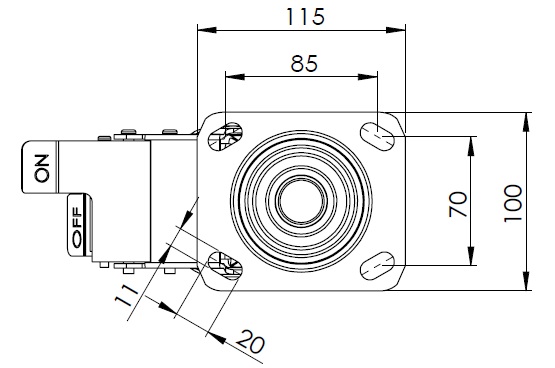

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 36mm　
　　Swivel Interference 310mm　
　　Overall Height 190mm　
　　Swivel Radius 155mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 160kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 240kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.80kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　
1112 2" Wide General Purposes Caster Series
PPR (grey) Wheel Diameter × Wheel Width 152 x 50mm
TW-4111206001053
152 mm 160 Kgs 190 mm

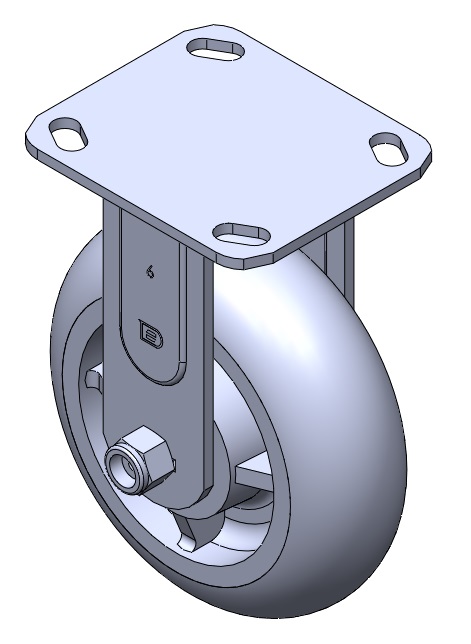

Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate High-quality Impact Resistance Polypropylene Wheel Center with High-Quality Thermoplastic Rubber (TPR) tread Gray, Bearing—precision long bead.
1112 2" Wide General Purposes Caster Series
PPR (grey) Wheel Diameter × Wheel Width 152 x 50mm
TW-4111206001054
152 mm 160 Kgs 190 mm

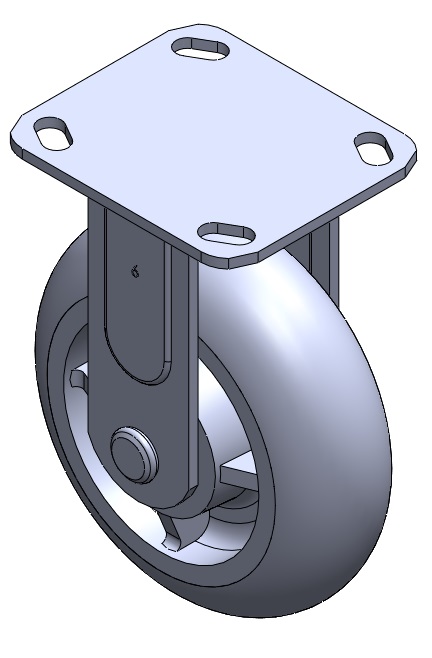

Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate - no logo High-quality Impact Resistance Polypropylene core with High-Quality Thermoplastic Rubber (TPR) tread Gray, Bearing - precision long bead
