    Product Data Sheet
1112-1 2" Wide General Purposes Caster Series
　　PU (red round) Wheel Diameter x Wheel Width 150x 42mm
　　A
　　　　　 KS-11120601332111
　　　　　 　　　

Modible Casters, Welded Caster Fork, black painted finish
Plate Mounting Type, 85x70mm Bolt Hole Spacing
Cast Iron wheel Wheel Wheel Hub, High Quality Polyurethane Wheel Tread, Cast Iron red
Bearings—Ball Bearings, with iron caps
　　Wheel Tread: Hhigh-Quality Polyurethane
　　Wheel Center: Iron core / Cast iron core

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 42mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 35mm　
　　Swivel Interference 230mm　
　　Overall Height 189.5mm　
　　Swivel Radius 115mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.22kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

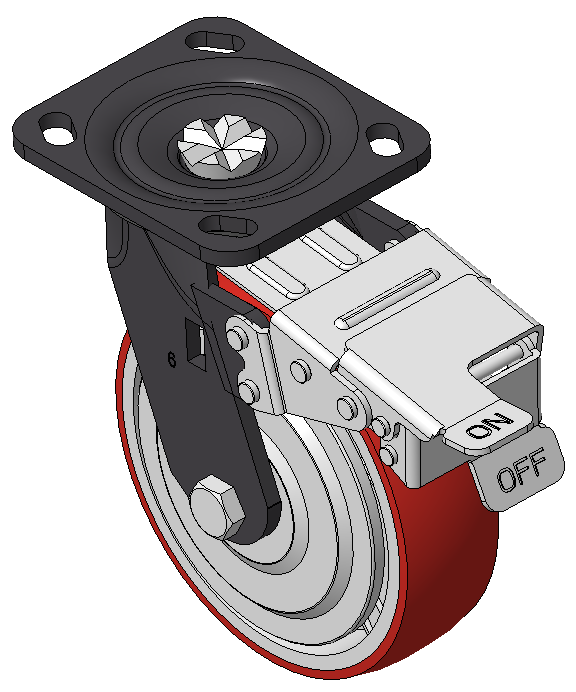

1112-1 2" Wide General Purposes Caster Series
PU (red round) Wheel Diameter x Wheel Width 150x 42mm
KS-11120601334111
150 mm 450 Kgs 189.5 mm
Front-brake Casters, Welded Caster Fork, black paint finish. Base plate Mounting Type, 85x70mm Bolt Hole Spacing. Cast Iron wheel Wheel Wheel Hub, High Quality Polyurethane Wheel Tread, Cast Iron red. Bearings—Ball Bearings, with iron caps.

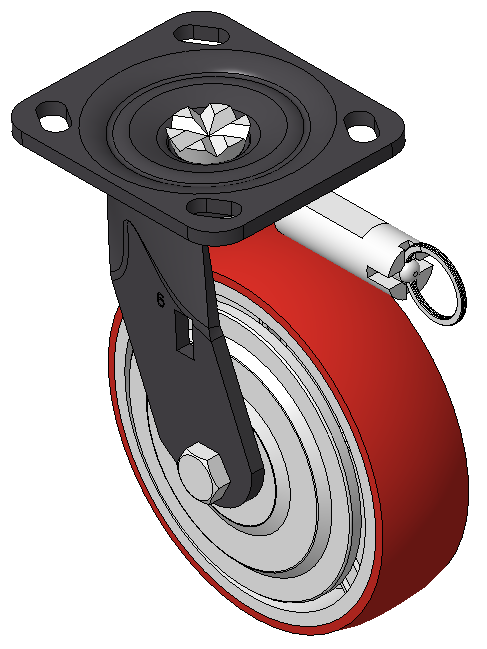

1112-1 2" Wide General Purposes Caster Series
