    Product Data Sheet
1112-1 2" Wide General Purposes Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 150 x 40mm
　　D
　　　　　 KS-11120601074011
　　　　　 　　　

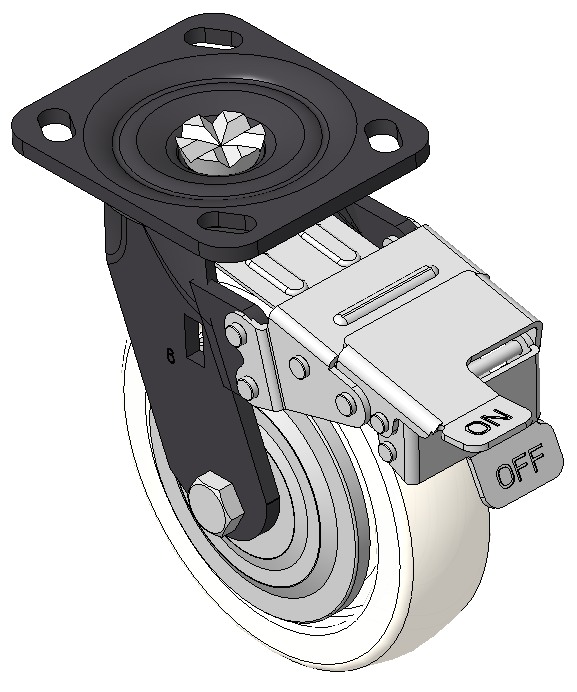

Front-brake Casters, Welded Caster Fork, black paint finish. Base plate Mounting Type, 85x70mm Bolt Hole Spacing. Reinforced Polypropylene (PA6), natural finish. Bearings—Ball Bearings, with metal caps.
　　Wheel surface: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

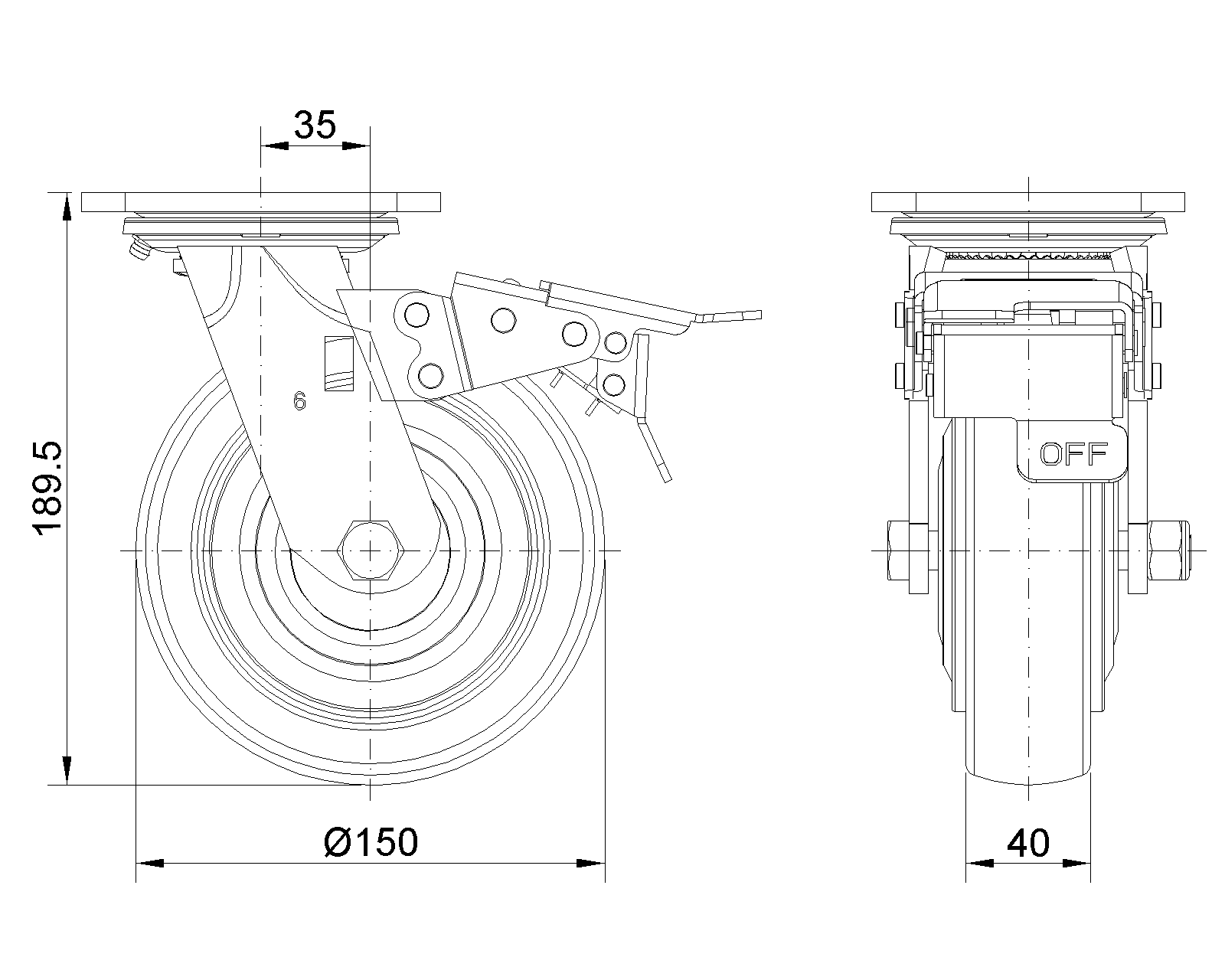

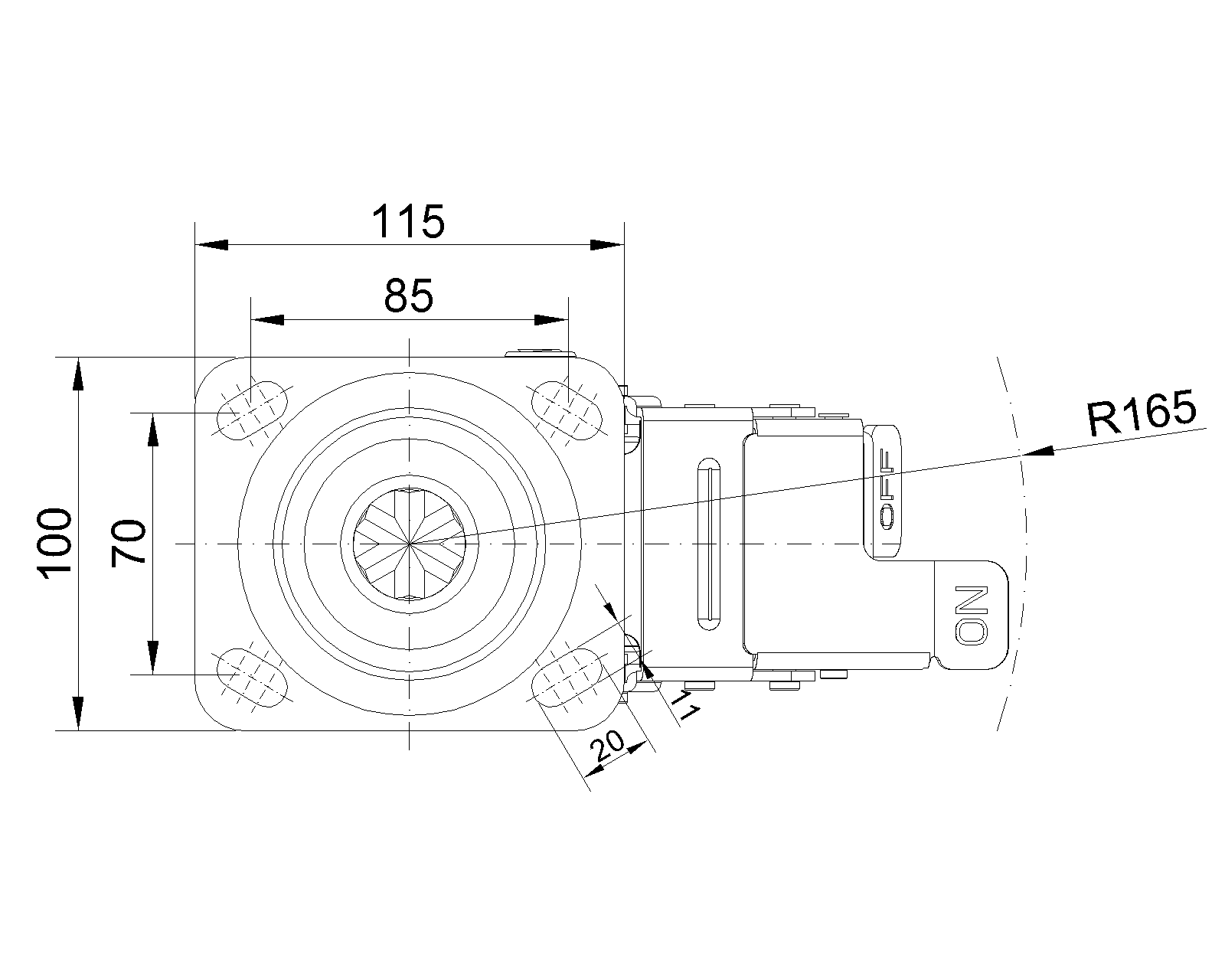

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 35mm　
　　Swivel Interference 330mm　
　　Overall Height 189.5mm　
　　Swivel Radius 165mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 350kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 525kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.76kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　
1112-1 2" Wide General Purposes Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 150 x 40mm
KS-11120601072011
150 mm 350 Kgs 189.5 mm

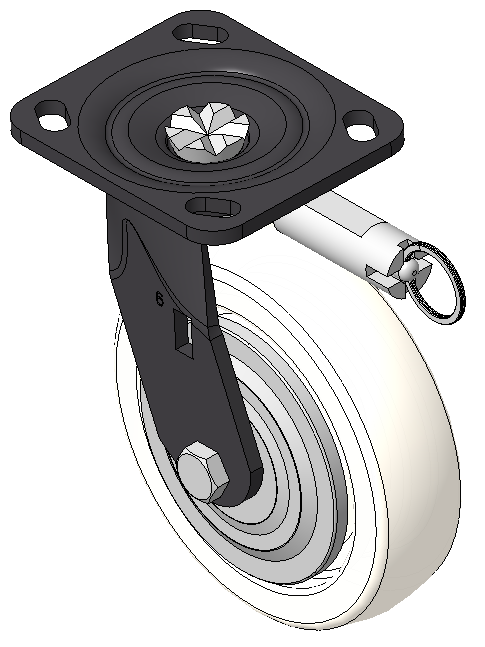

Modible Casters, Welded Caster Fork, black paint finish
Plate Mounting Type, 85x70mm Bolt Hole Spacing
Reinforced Polypropylene (PA6), natural finish
Bearings—Ball Bearings, with metal caps
1112-1 2" Wide General Purposes Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 150 x 40mm
KS-11120601074021
150 mm 350 Kgs 189.5 mm
Front-brake Casters, Welded Caster Fork, black paint finish. Base plate Mounting Type, 85x70mm Bolt Hole Spacing. Reinforced Polypropylene (PA6), natural finish. Bearings—Ball Bearings, with metal caps.
1112-1 2" Wide General Purposes Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 150 x 40mm
KS-11120601074031
150 mm 350 Kgs 189.5 mm

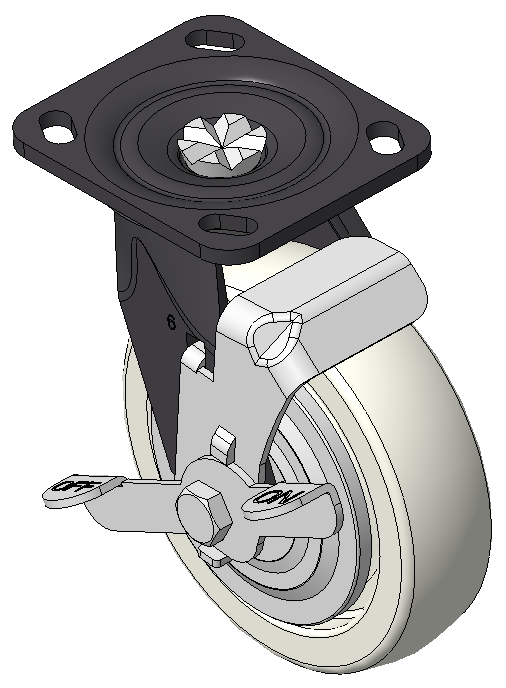

Side-brake Casters, Welded Caster Fork, black paint finish. Base plate Mounting Type, 85x70mm Bolt Hole Spacing. Reinforced Polypropylene (PA6), natural finish. Bearings—Ball Bearings, with metal caps.
