    Product Data Sheet
1112-1 2" Wide General Purposes Caster Series
　　W Resolute (Pearlescent Light Gray) Wheel Diameter × Wheel Width 150 × 50mm
　　A
　　　　　 KS-11120601454011
　　　　　 　　　

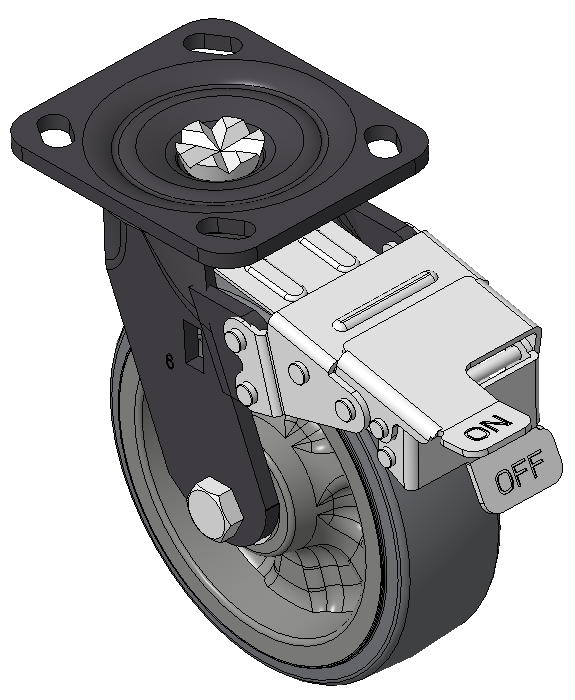

Front-brake Casters, Welded Caster Fork, black paint finish
Base plate Mounting Type device, 85x70mm Bolt Hole Spacing
Reinforced Polypropylene rubber elastomer (TPR), Cast Iron red
Bearings—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: High-quality impact-resistant polypropylene

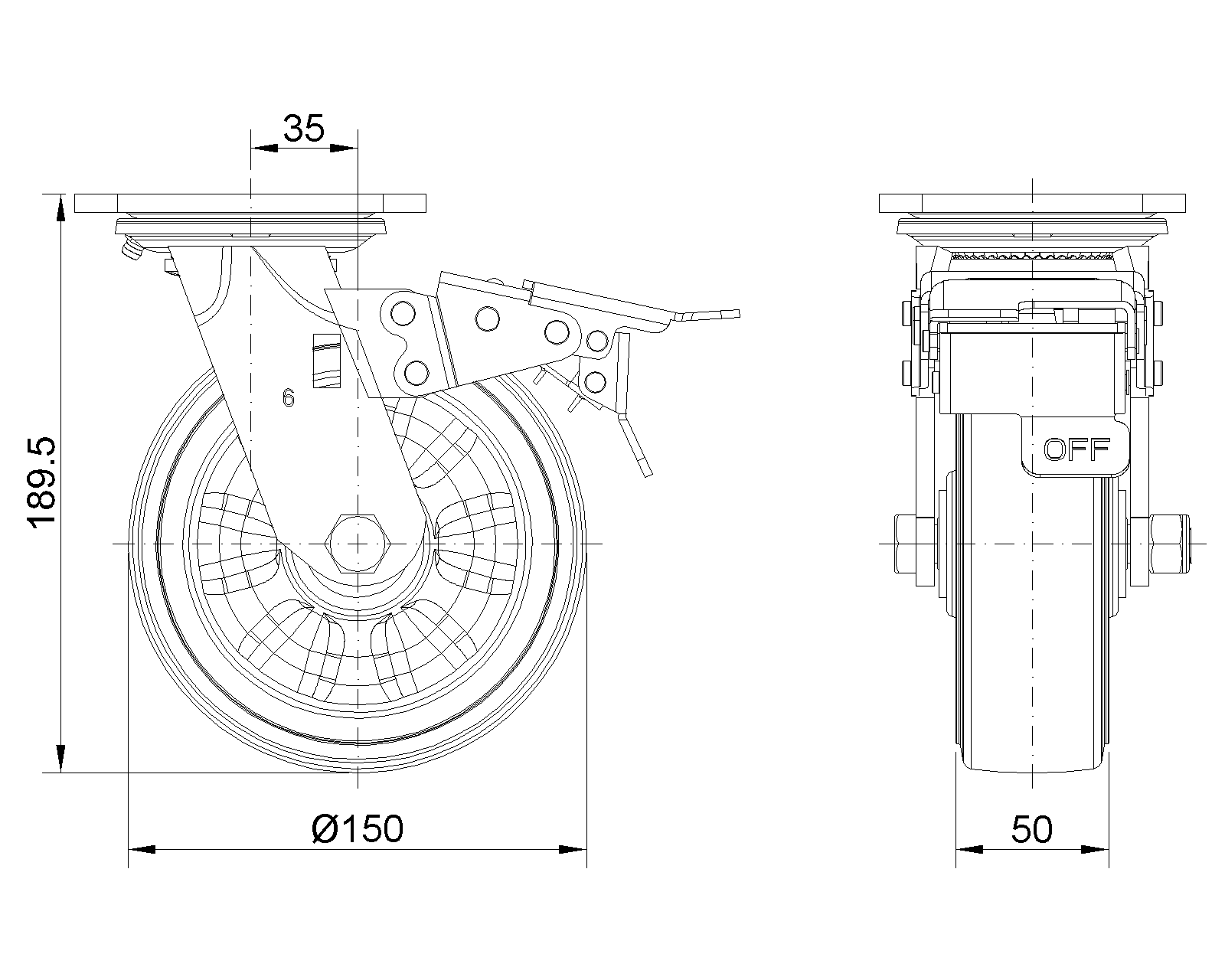

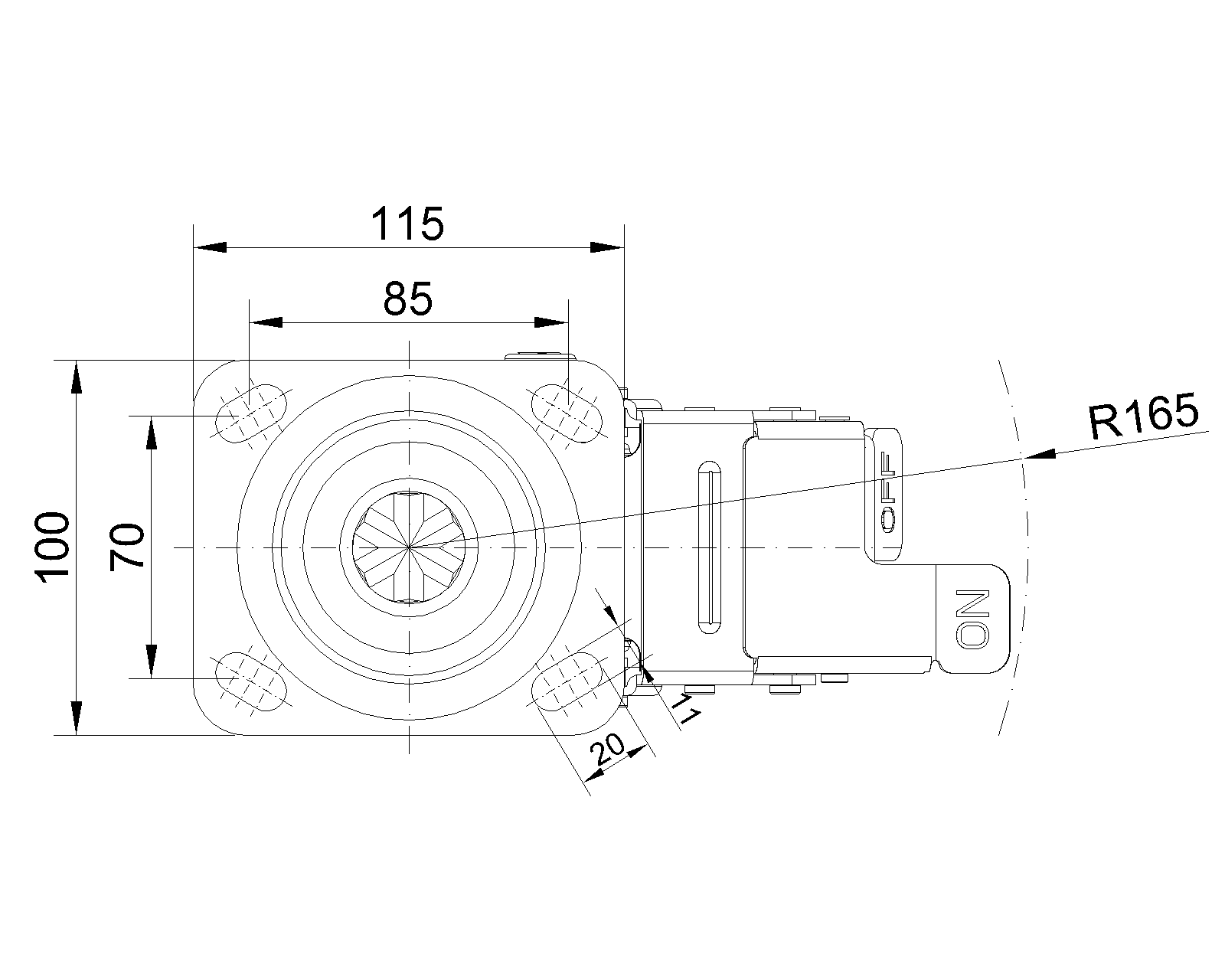

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 35mm　
　　Swivel Interference 330mm　
　　Overall Height 189.5mm　
　　Swivel Radius 165mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 408kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 612kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.64kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　
1112-1 2" Wide General Purposes Caster Series
W Resolute (Pearlescent Light Gray) Wheel Diameter × Wheel Width 150 × 50mm
KS-11120601452011
150 mm 408 Kgs 189.5 mm

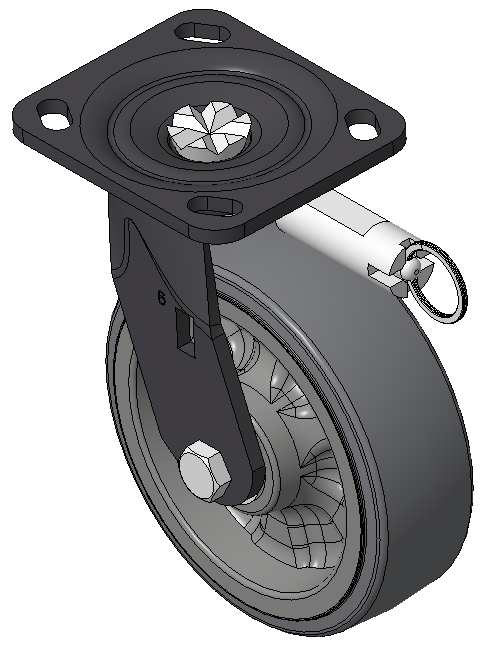

Modible Casters, Welded Caster Fork, black paint finish
Base plate Mounting Type device, 85x70mm Bolt Hole Spacing
Reinforced Polypropylene rubber elastomer (TPR), Cast Iron red
Bearings—Ball Bearings
1112-1 2" Wide General Purposes Caster Series
W Resolute (Pearlescent Light Gray) Wheel Diameter × Wheel Width 150 × 50mm
KS-11120601454021
150 mm 408 Kgs 189.5 mm

Front-brake Casters, Welded Caster Fork, black paint finish
Base plate Mounting Type device, 85x70mm Bolt Hole Spacing
Reinforced Polypropylene rubber elastomer (TPR), Cast Iron red
Bearings—Ball Bearings
1112-1 2" Wide General Purposes Caster Series
W Resolute (Pearlescent Light Gray) Wheel Diameter × Wheel Width 150 × 50mm
KS-11120601454031
150 mm 408 Kgs 189.5 mm

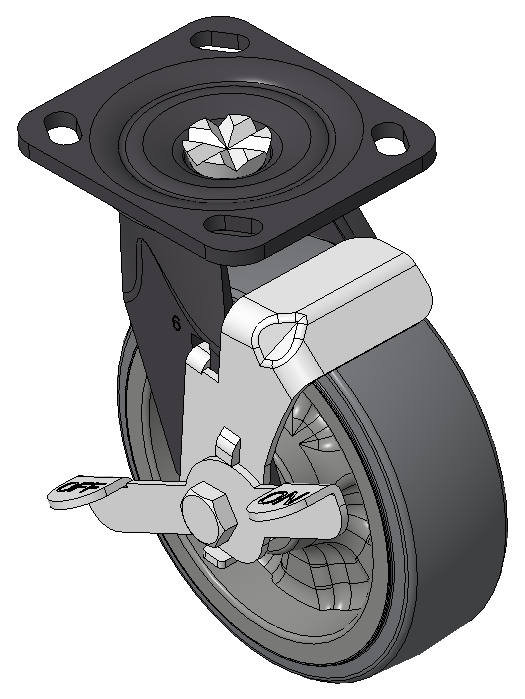

Side-brake Casters, Welded Caster Fork, black paint finish. Base plate Mounting Type device, 85x70mm Bolt Hole Spacing. Reinforced Polypropylene rubber elastomer (TPR), Cast Iron red. Bearings—Ball Bearings.
