    Product Data Sheet
1112-1 2" Wide General Purposes Caster Series
　　QPU (Brown round) Wheel Diameter × Wheel Width 150 x 42mm
　　A
　　　　　 KS-11120601534031
　　　　　 　　　
Side-brake Casters, Welded Caster Fork, black paint finish. Base plate Mounting Type, 85x70mm Bolt Hole Spacing. Cast Iron wheel Wheel Wheel Hub, High Quality Polyurethane Wheel Tread, Cast Iron brown. Bearings—Ball Bearings, with iron caps.
　　Wheel Tread: Hhigh-Quality Polyurethane
　　Wheel Center: Iron core / Cast iron core

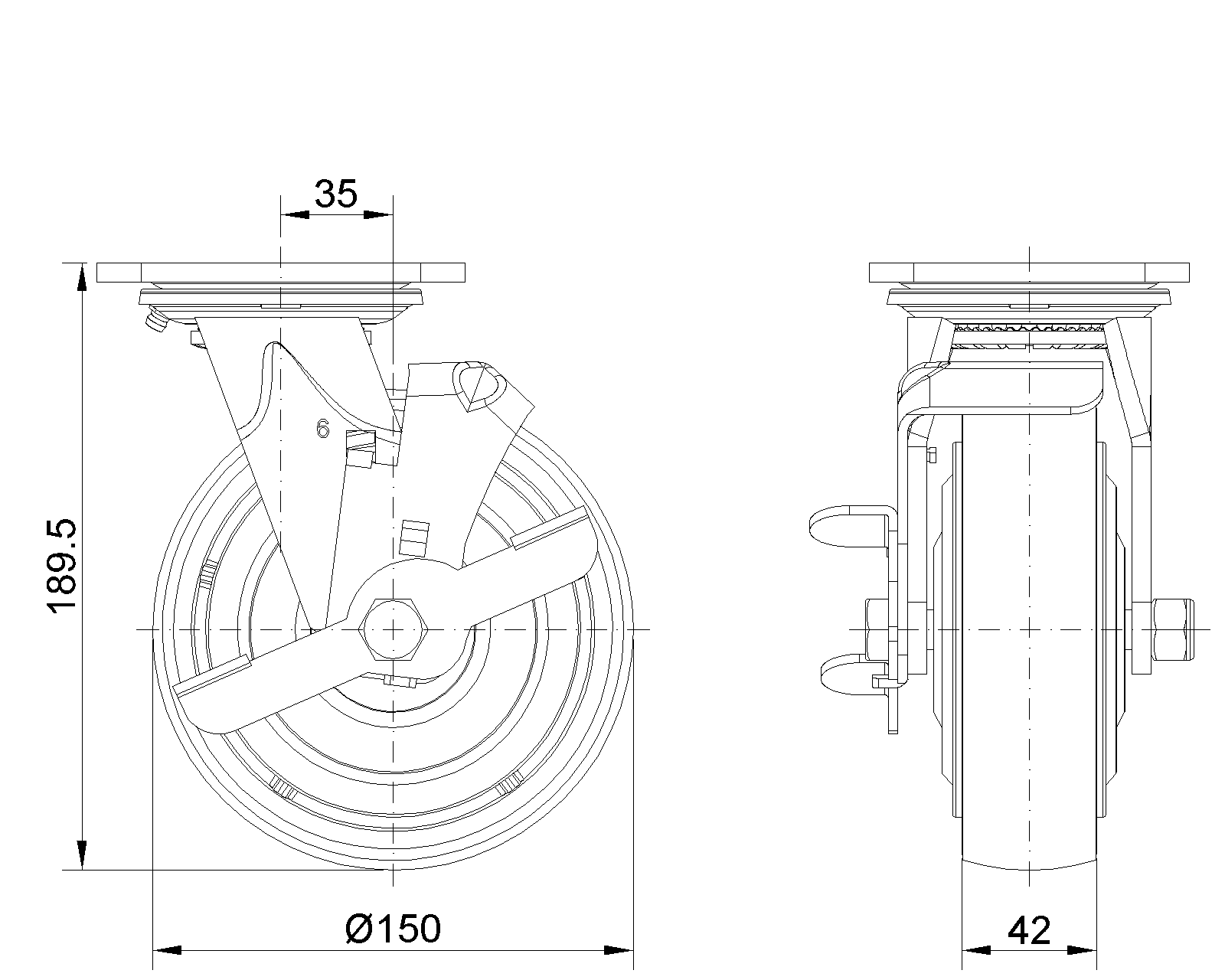

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 42mm　
　　Wheel Bearing Wheels With Ball Bearings

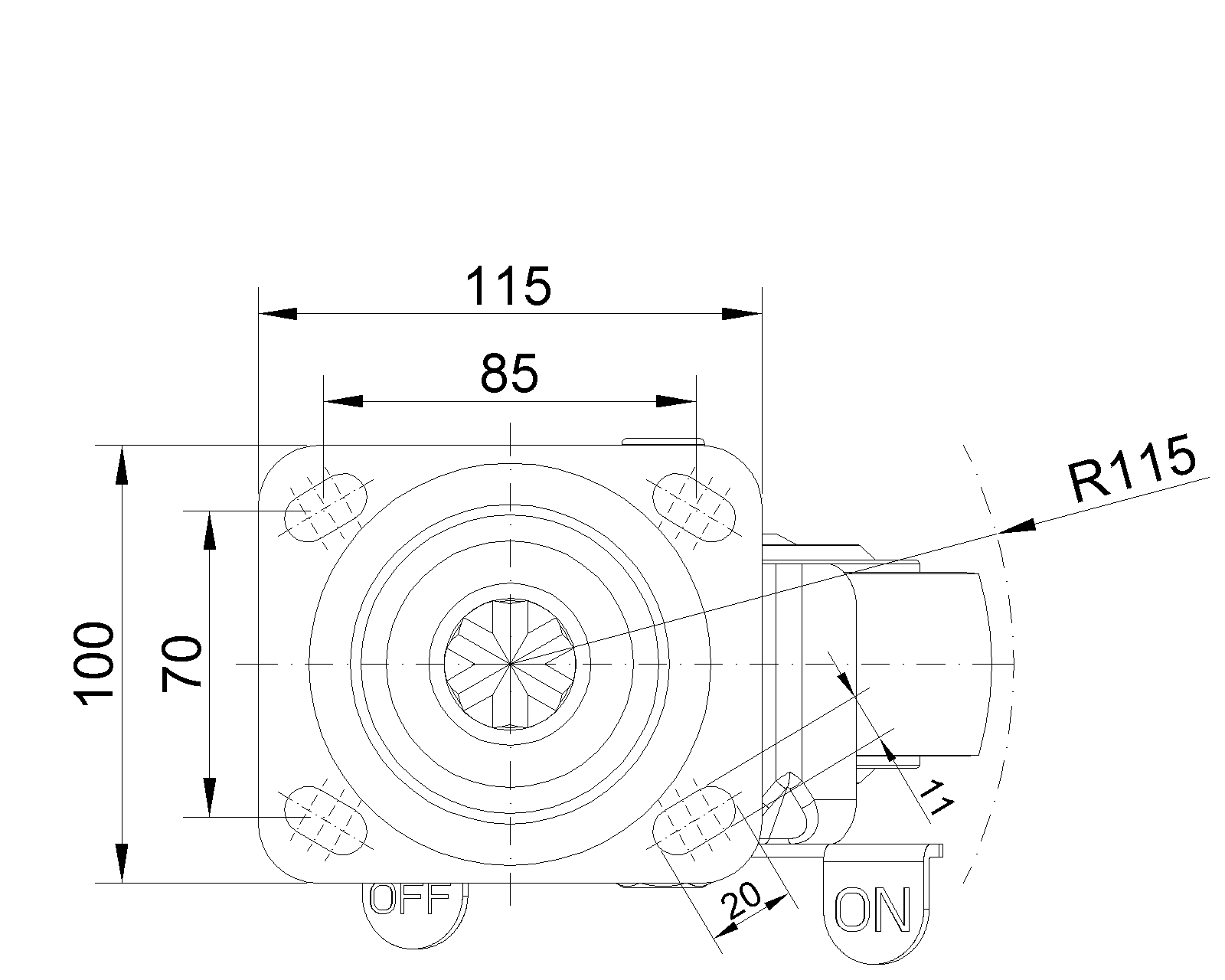

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 35mm　
　　Swivel Interference 230mm　
　　Overall Height 189.5mm　
　　Swivel Radius 115mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 600kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 900kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.46kgs　
　　Standard ISO22883
　　
　　
