    Product Data Sheet
1112-1 2" Wide General Purposes Caster Series
　　W Resolute Wheel (Pearl Light Gray) Wheel Diameter × Wheel Width 125×50mm
　　A
　　　　　 KS-11120501454031
　　　　　 　　　
Side-brake Casters, Welded Caster Fork, black paint finish. Base plate Mounting Type, 85x70mm Bolt Hole Spacing. Reinforced Polypropylene rubber elastomer (TPR). Cast Iron pearlescent light gray, Bearing—Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: High-quality impact-resistant polypropylene

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 30mm　
　　Swivel Interference 204mm　
　　Overall Height 167.5mm　
　　Swivel Radius 102mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 340kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 510kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.12kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　
1112-1 2" Wide General Purposes Caster Series
W Resolute Wheel (Pearl Light Gray) Wheel Diameter × Wheel Width 125×50mm
KS-11120501452011
125 mm 340 Kgs 167.5 mm

Modible Casters, Welded Caster Fork, black paint finish
Base plate Mounting Type, 85x70mm Bolt Hole Spacing
Reinforced Polypropylene rubber elastomer (TPR)
Cast Iron pearlescent light gray, Bearing—Ball Bearings
1112-1 2" Wide General Purposes Caster Series
W Resolute Wheel (Pearl Light Gray) Wheel Diameter × Wheel Width 125×50mm
KS-11120501454011
125 mm 340 Kgs 167.5 mm
Front-brake Casters, Welded Caster Fork, black paint finish. Base plate Mounting Type, 85x70mm Bolt Hole Spacing. Reinforced Polypropylene rubber elastomer (TPR). Cast Iron pearlescent light gray, Bearing—Ball Bearings.
1112-1 2" Wide General Purposes Caster Series
W Resolute Wheel (Pearl Light Gray) Wheel Diameter × Wheel Width 125×50mm
KS-11120501454021
125 mm 340 Kgs 167.5 mm

Directional brake Casters, Welded Caster Fork, black paint finish
Base plate Mounting Type device, 85x70mm Bolt Hole Spacing
Reinforced Polypropylene rubber elastomer (TPR)
Cast Iron pearlescent light gray, Bearing—Ball Bearings

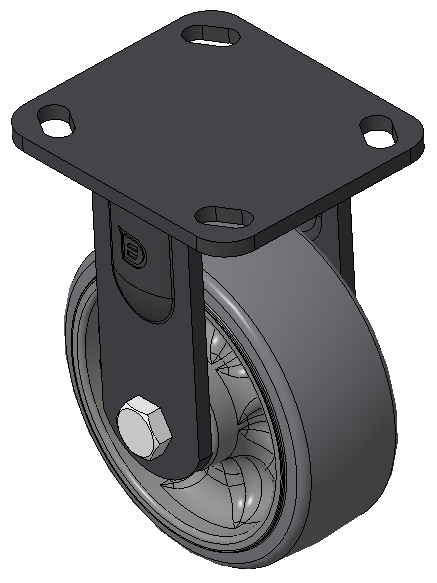

1112-1 2" Wide General Purposes Caster Series
