    Product Data Sheet
1115-1 Economy -1 Spring Wheel Series
　　PU (red round) Wheel Diameter x Wheel Width 125 x 45mm
　　EAN
　　　　　 KS-11150501332151B
　　　　　 　　　

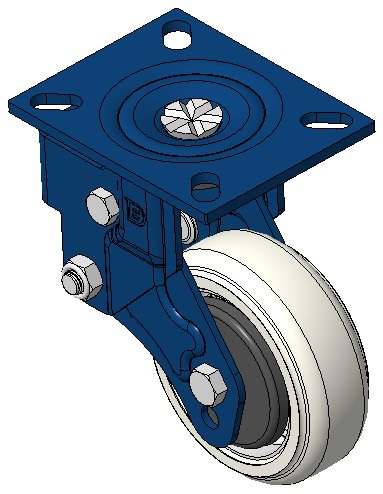

Swivel Spring-loaded Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 105 x 78.5 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread
Cast Iron red, Bearing – Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

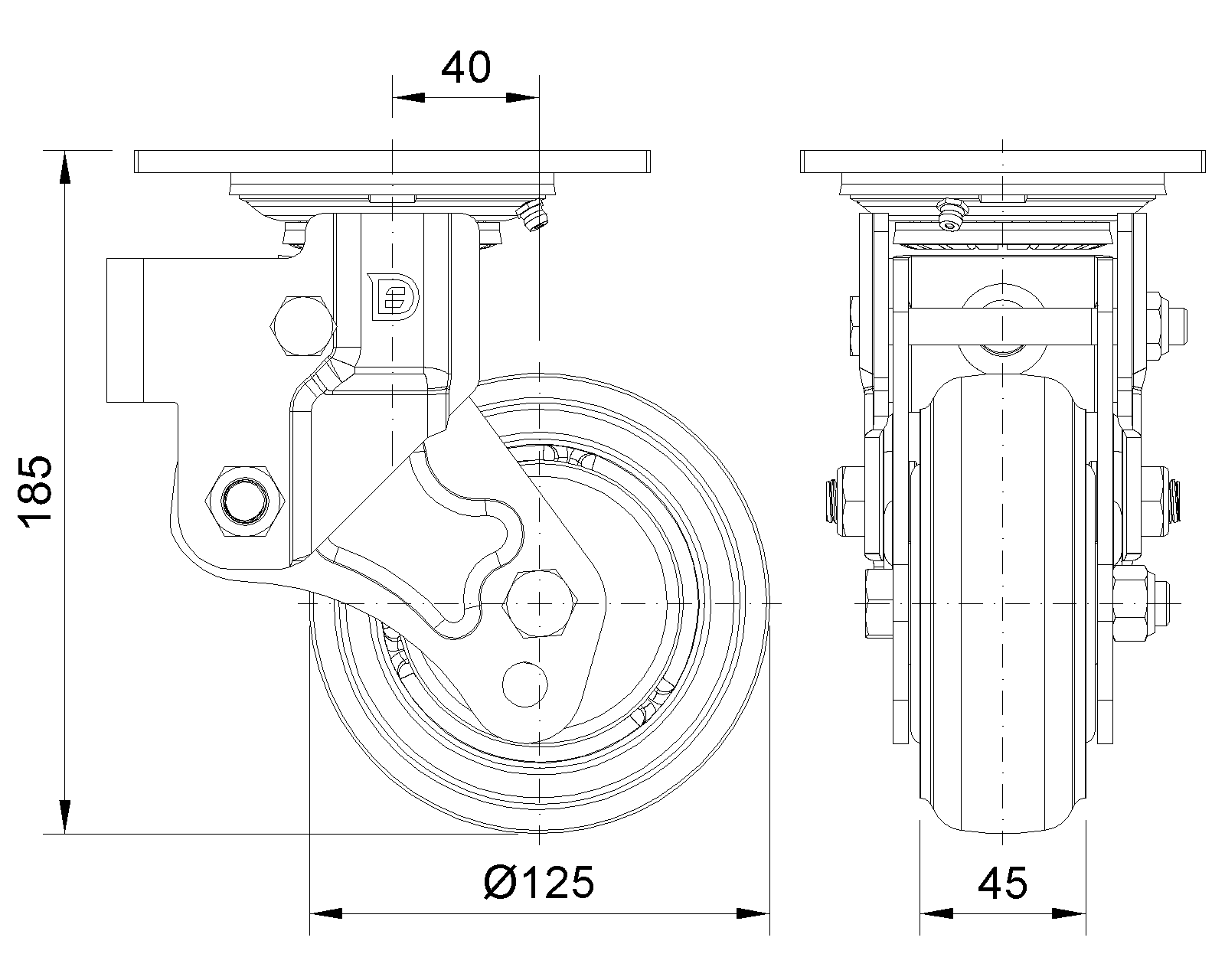

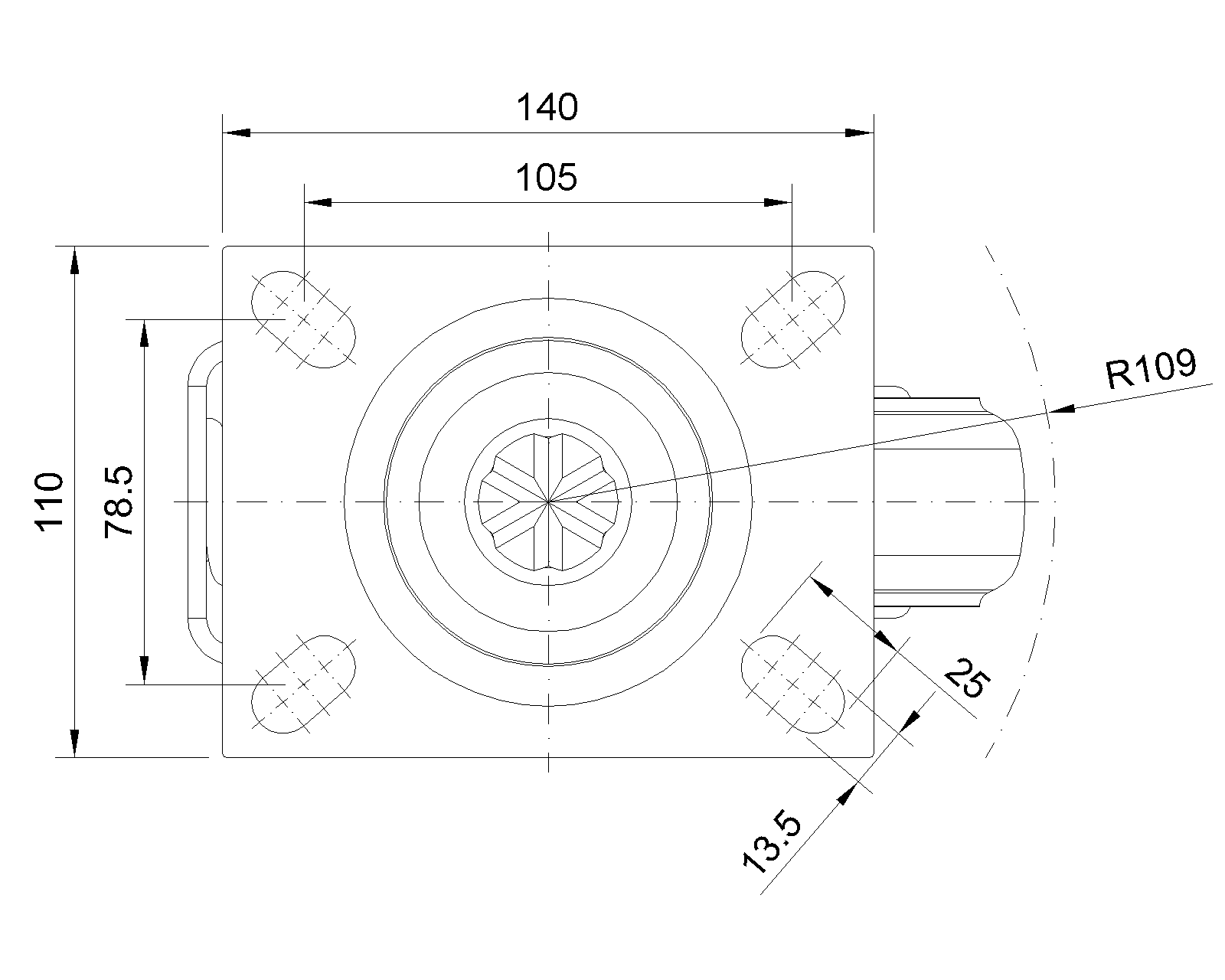

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 105 x 78.5mm　
　　Plate Hole 25 x 13.5mm　
　　Offset 40mm　
　　Swivel Interference 218mm　
　　Overall Height 185mm　
　　Swivel Radius 109mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 350kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 525kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.98kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1115-1 Economy -1 Spring Wheel Series
PU (red round) Wheel Diameter x Wheel Width 125 x 45mm
KS-11150501331151B
125 mm 350 Kgs 185 mm

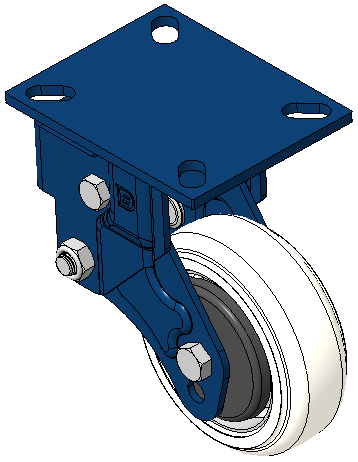

Rigid Spring-loaded Caster with Welded Caster Fork
