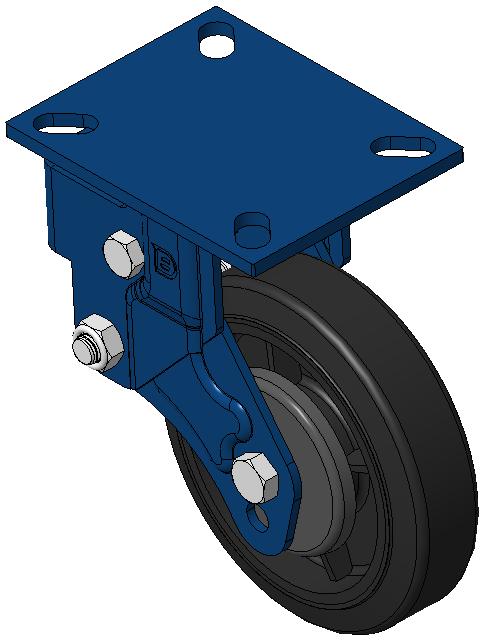

Blue painted finish, Mounting Type - Top Plate, 105 x 78.5 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron black
Bearings—Ball Bearings
Wheel Center: iron core/cast iron core
Drawings are for reference only and may differ from the product
Metric Imperial

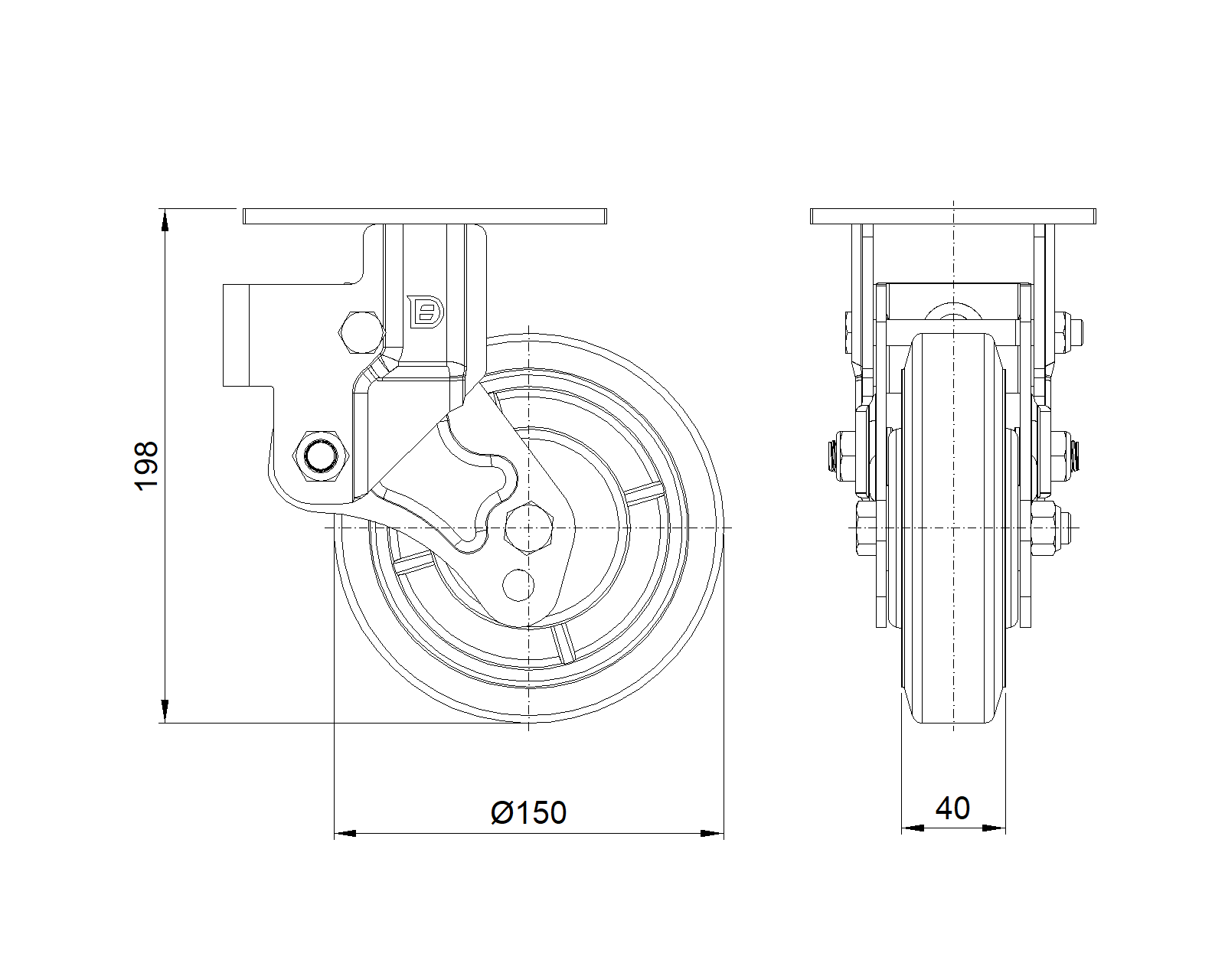

Wheel Diameter
150mm
Wheel Width
40mm
Wheel Bearing
Wheels With Ball Bearings

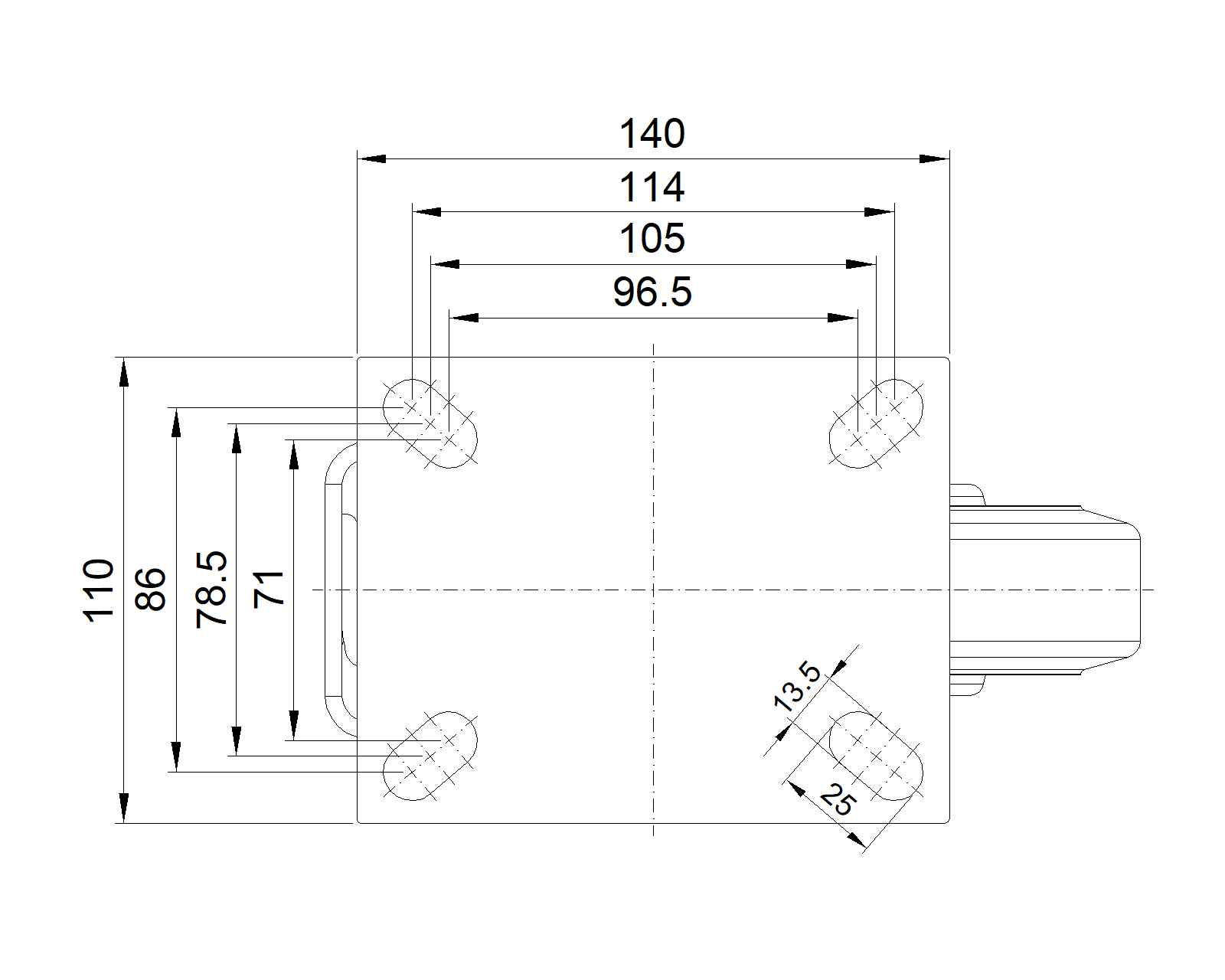

Plate Size
140 x 110mm
Bolt Hole Spacing
105 x 78.5mm
Plate Hole
25 x 13.5mm
Overall Height
198mm
Hardness Of Tread
85±5° Shore A
Load Capacity (Dynamic)
300kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
450kgs
Temperature
-20°C to +80°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
3.82kgs
Standard
ISO22883
