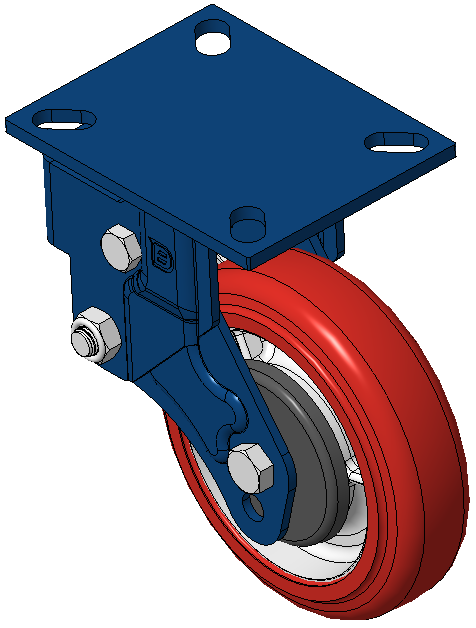

Blue painted finish, Mounting Type - Top Plate, 105 x 78.5 Bolt Hole Spacing
Cast Iron Wheel Center with High Quality Polyurethane Wheel Tread, Cast Iron red
Bearings—Ball Bearings
Wheel Center: iron core/cast iron core

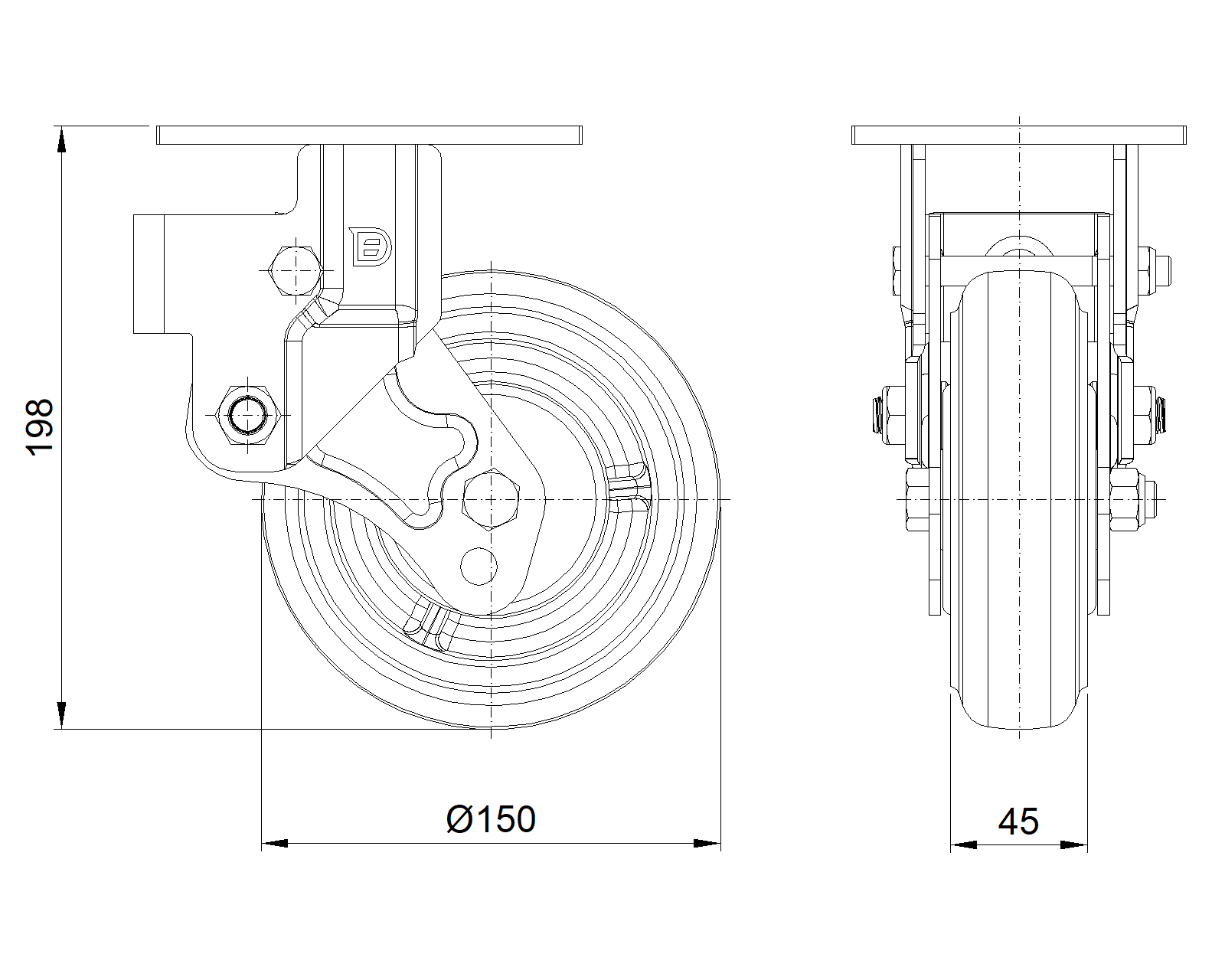

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
150mm
Wheel Width
45mm
Wheel Bearing
Wheels With Ball Bearings

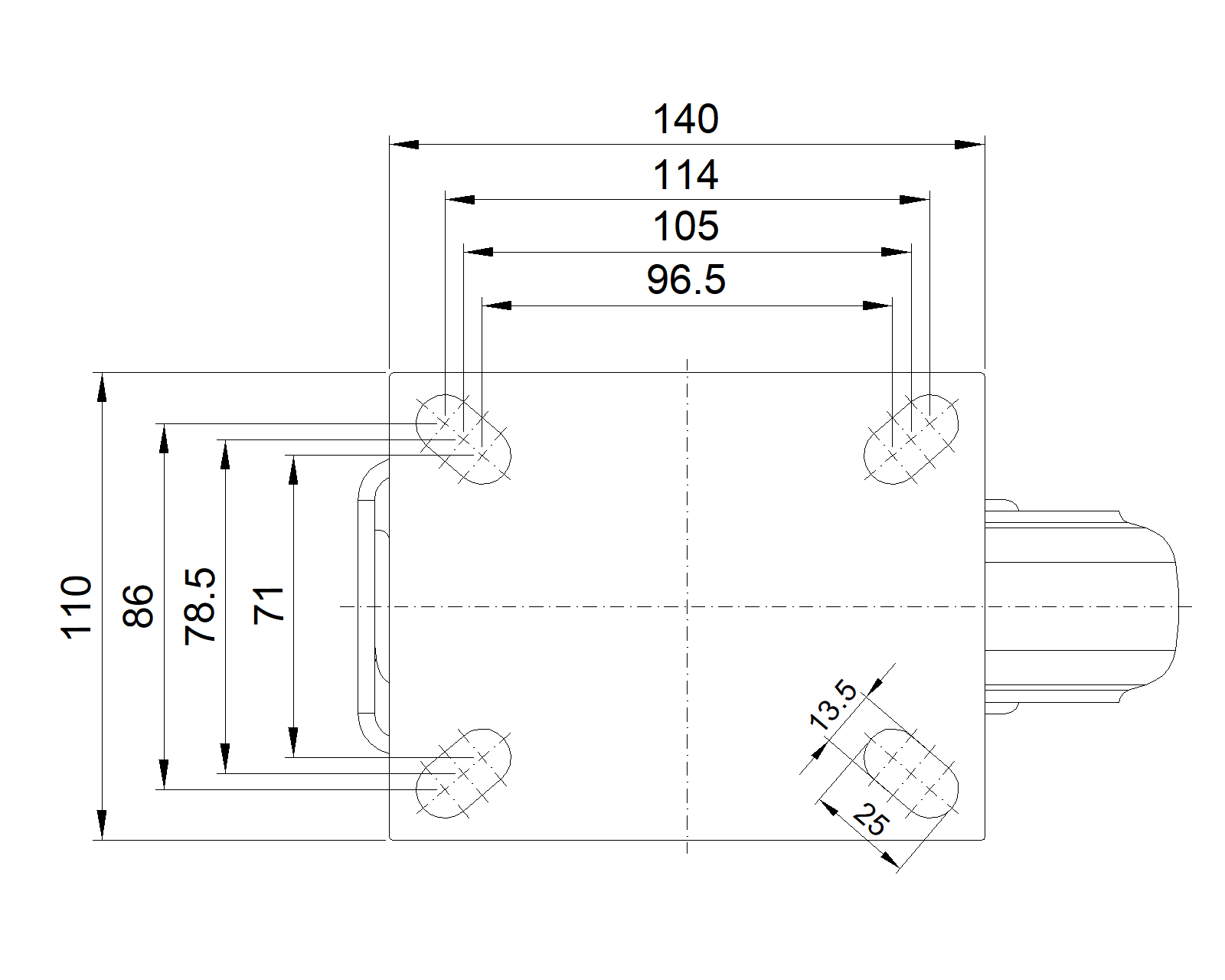

Plate Size
140 x 110mm
Bolt Hole Spacing
105 x 78.5mm
Plate Hole
25 x 13.5mm
Overall Height
198mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
420kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
630kgs
Temperature
-20°C to +70°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
4.18kgs
Standard
ISO22883
