    Product Data Sheet
1115-1 Economy -1 Spring Wheel Series
　　PU (red round) Wheel Diameter x Wheel Width 150 x 45mm
　　EAN
　　　　　 KS-11150601331251B
　　　　　 　　　
Rigid, Spring-loaded Caster with Welded Caster Fork and blue paint finish.
Mounting Type - Top Plate, 105x78.5 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread
Cast Iron red, Bearing—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

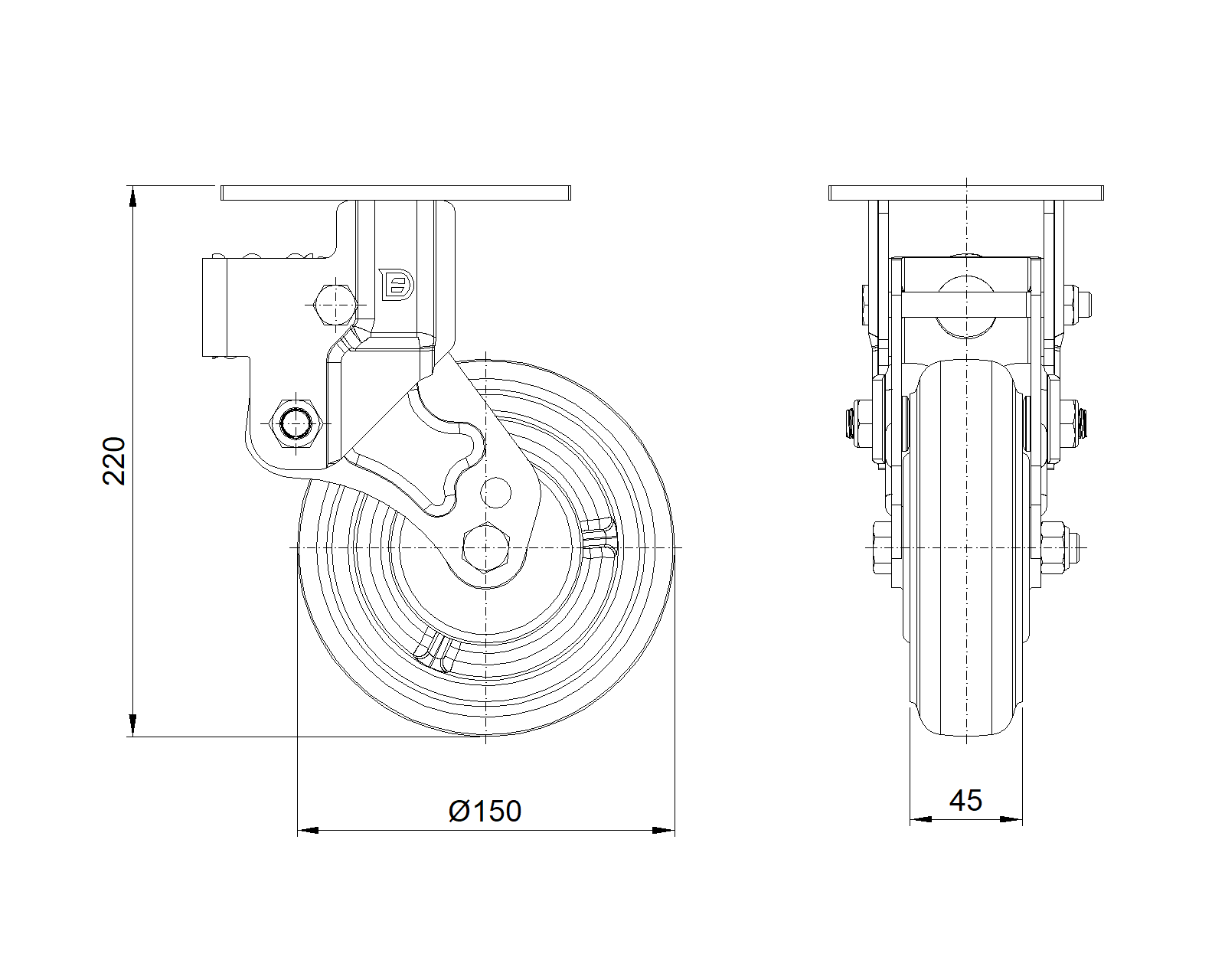

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings

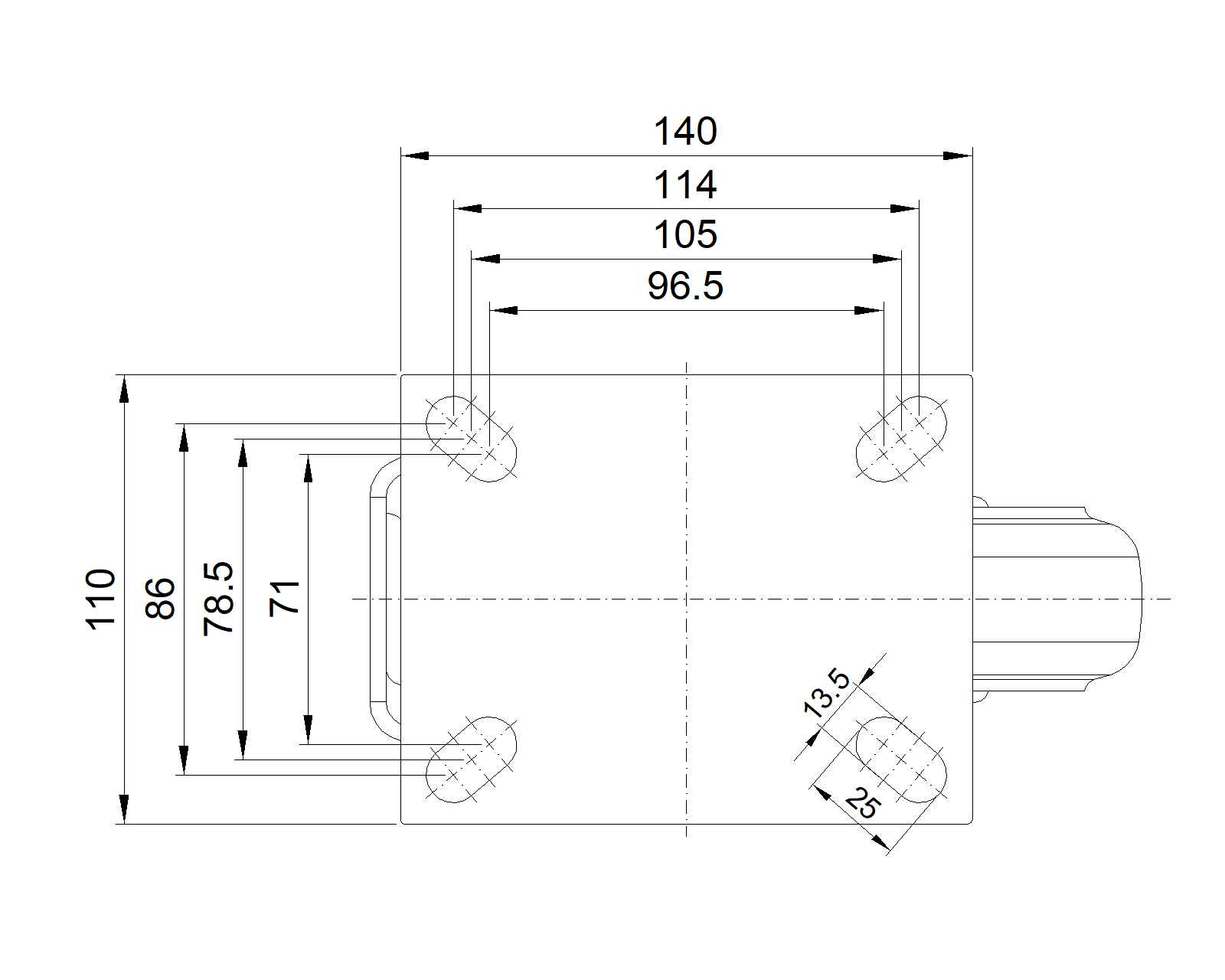

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 105 x 78.5mm　
　　Plate Hole 25 x 13.5mm　
　　Overall Height 220mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 420kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 630kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.24kgs　
　　Standard ISO22883
　　
　　
