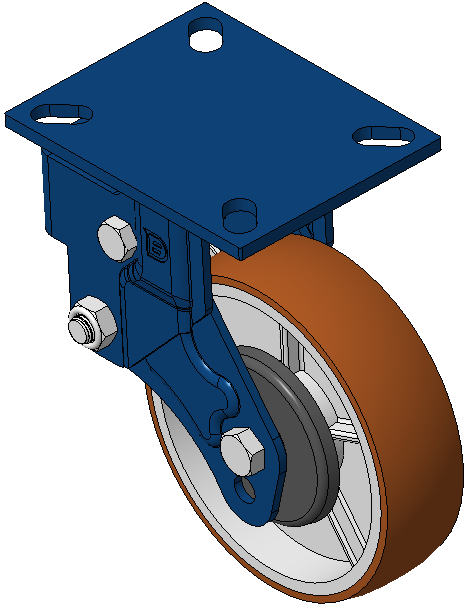

Mounting Type - Top Plate, 105x78.5 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread
Cast Iron brown, Bearing—Ball Bearings
Wheel Center: iron core/cast iron core

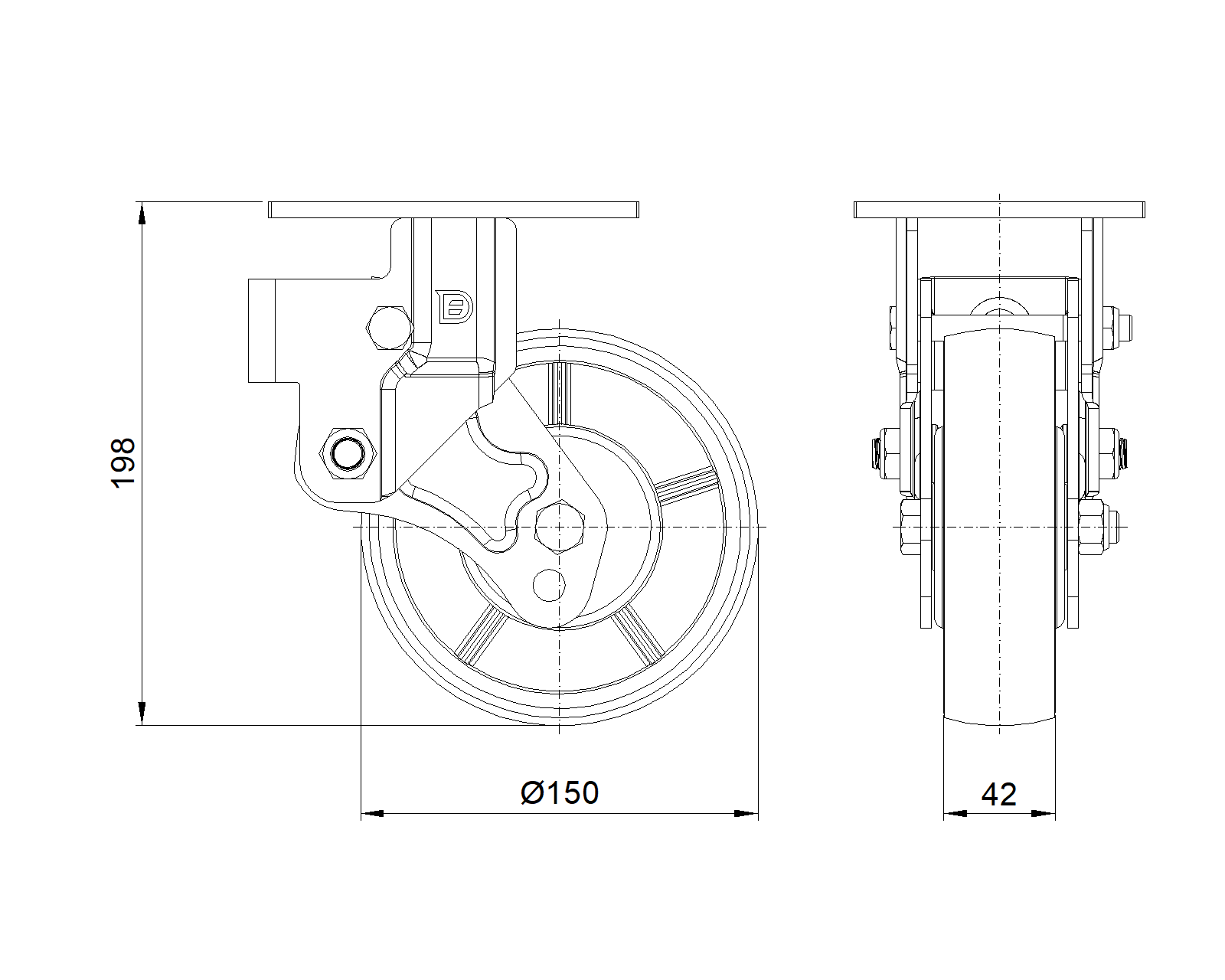

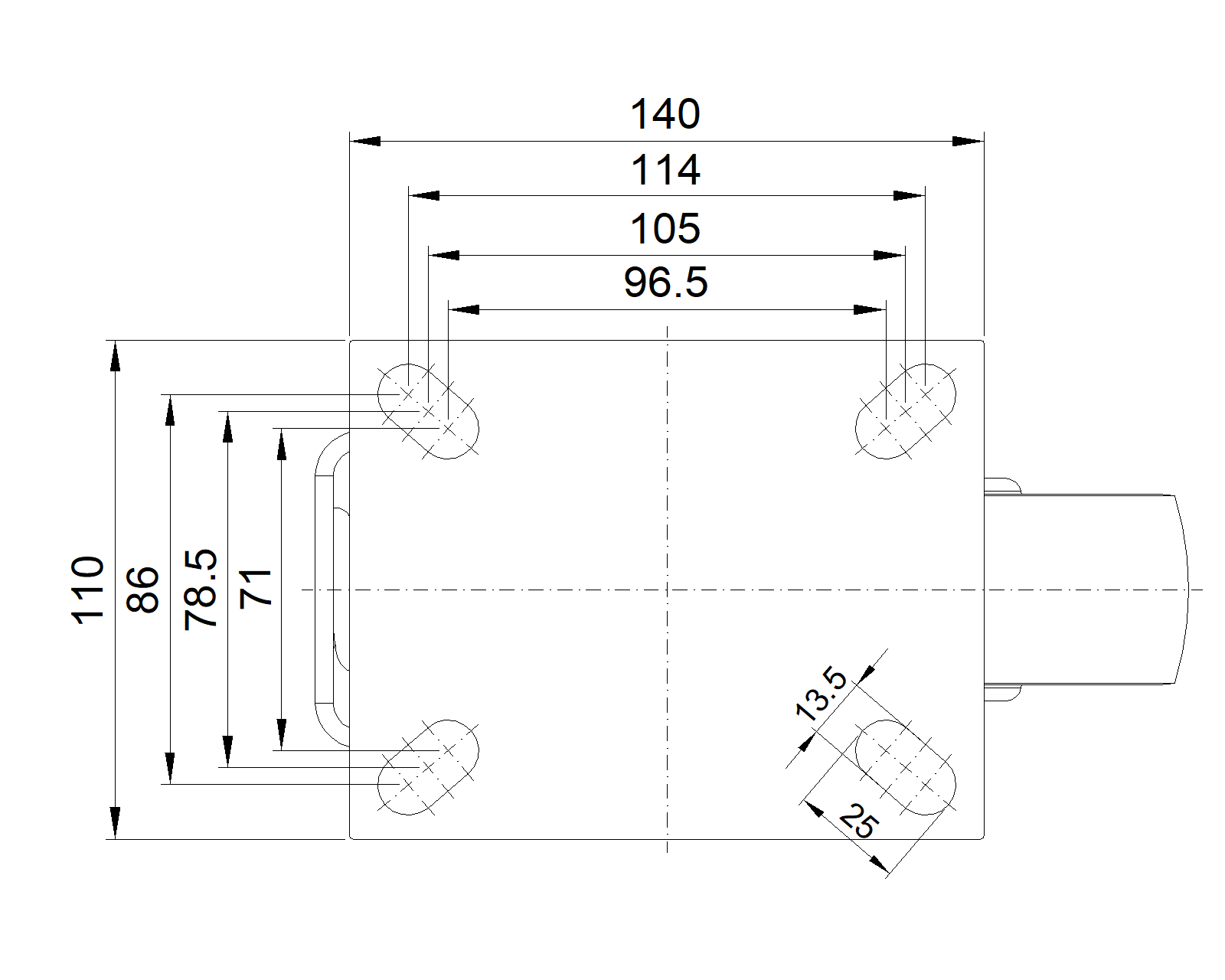

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
150mm
Wheel Width
45mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
140 x 110mm
Bolt Hole Spacing
105 x 78.5mm
Plate Hole
25 x 13.5mm
Overall Height
198mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
500kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
750kgs
Temperature
-20°C to +70°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
3.76kgs
Standard
ISO22883
