    Product Data Sheet

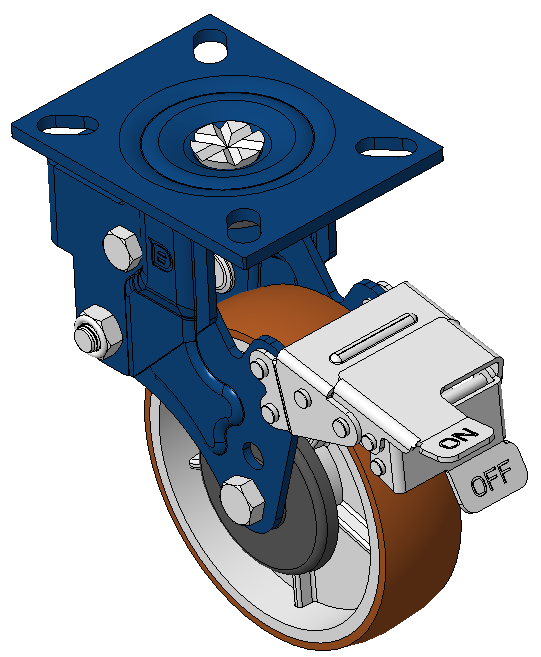

1115-1 Economy -1 Spring Wheel Series
　　QPU (Brown round) Wheel Diameter × Wheel Width 150 x 42mm
　　EAN
　　　　　 KS-11150601534151B
　　　　　 　　　
Spring-loaded Casters with front brake and With locking system, Welded Caster Fork.
Blue-painted finish, Mounting Type - Top Plate, 105 x 78.5 Bolt Hole Spacing.
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown.
Bearings—Ball Bearings.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

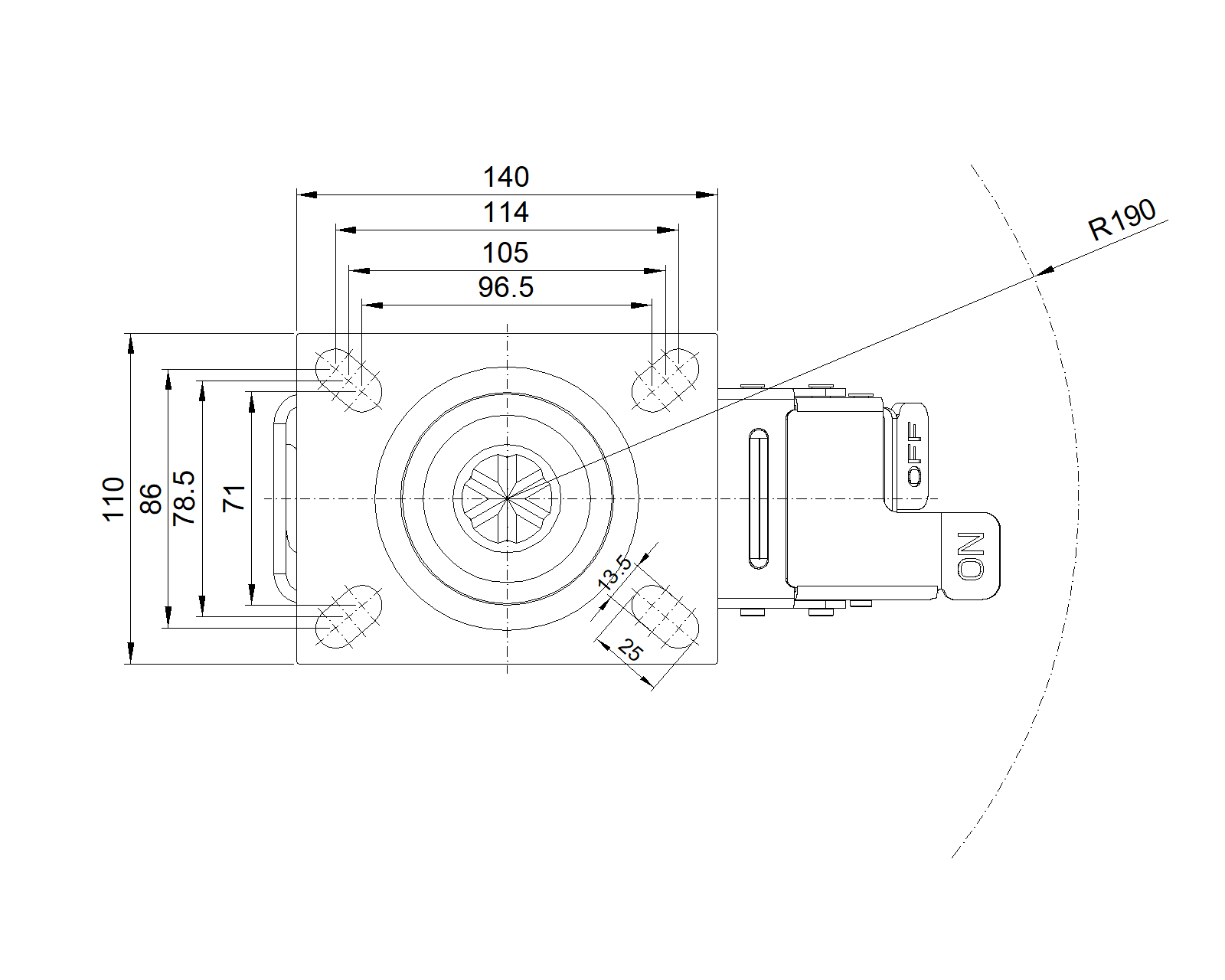

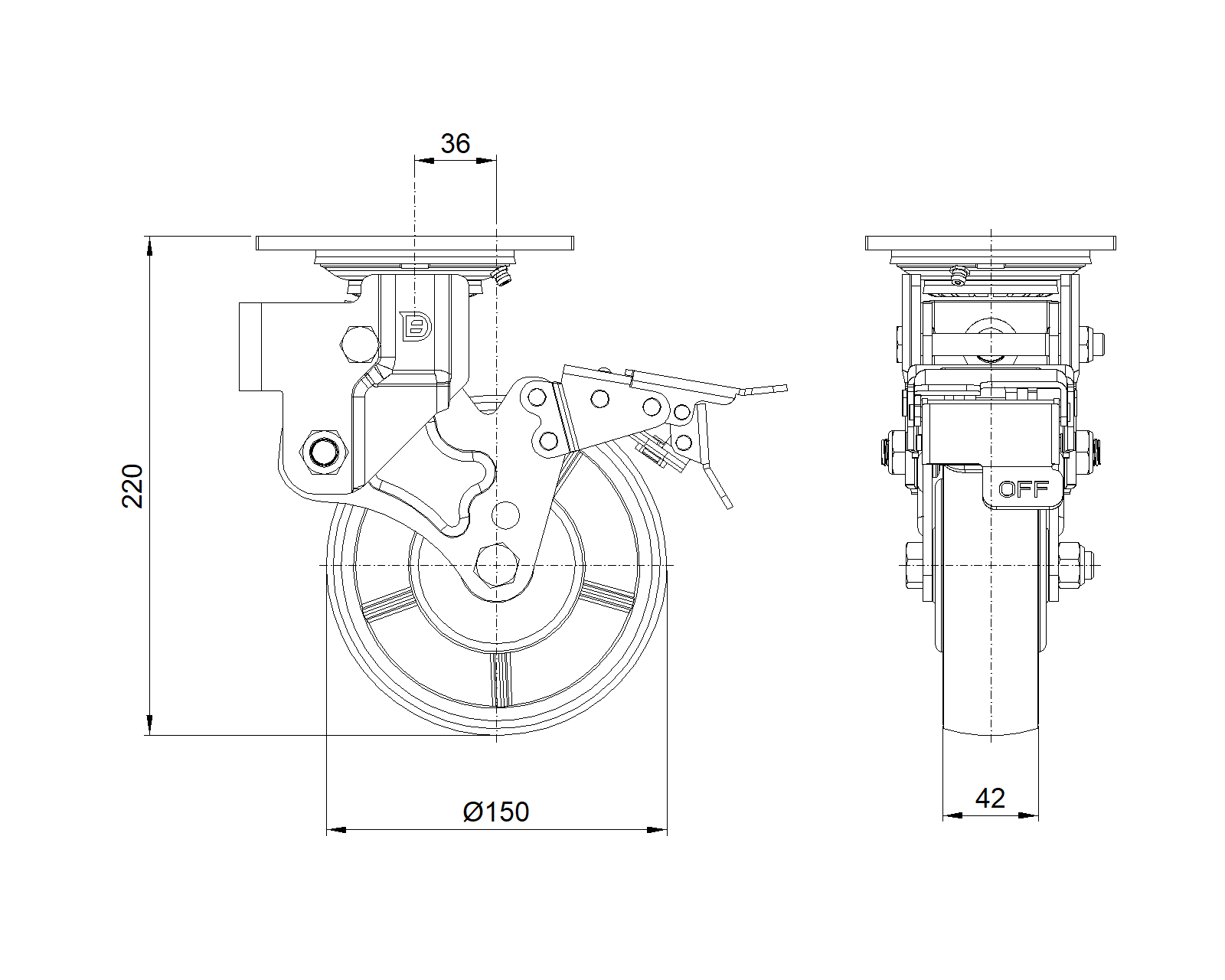

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 42mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 105 x 78.5mm　
　　Plate Hole 25 x 13.5mm　
　　Offset 36mm　
　　Swivel Interference 380mm　
　　Overall Height 220mm　
　　Swivel Radius 190mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 500kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 750kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 5.22kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

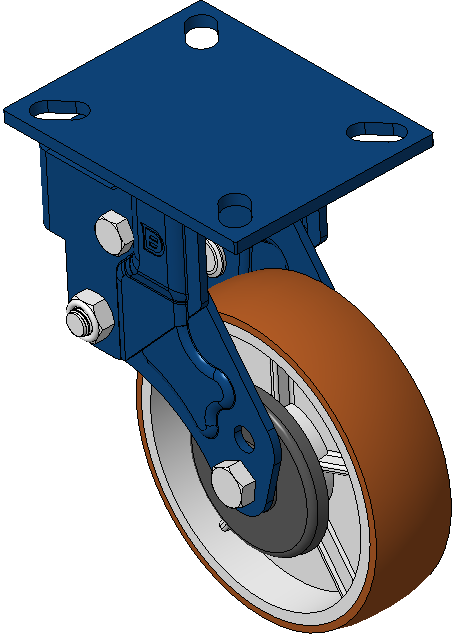

1115-1 Economy -1 Spring Wheel Series
